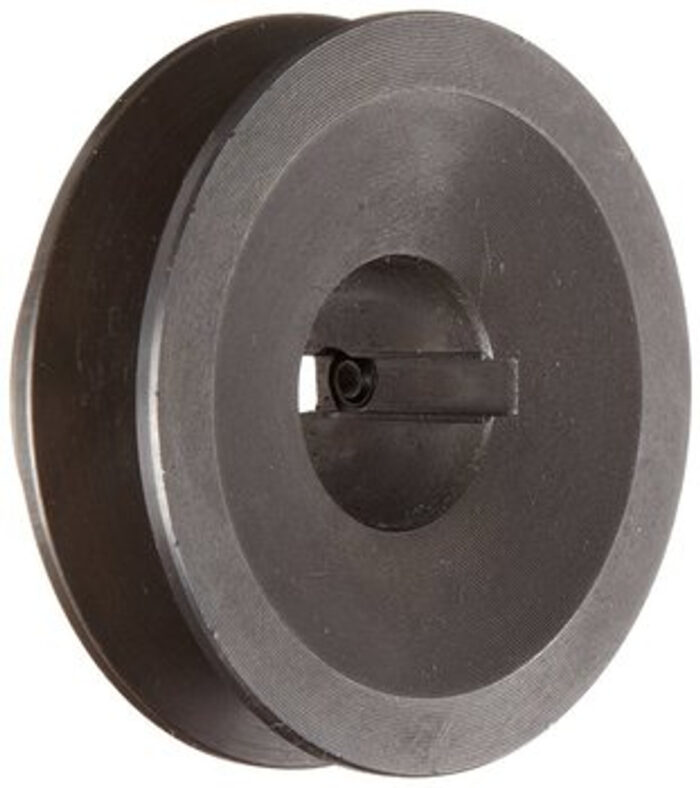

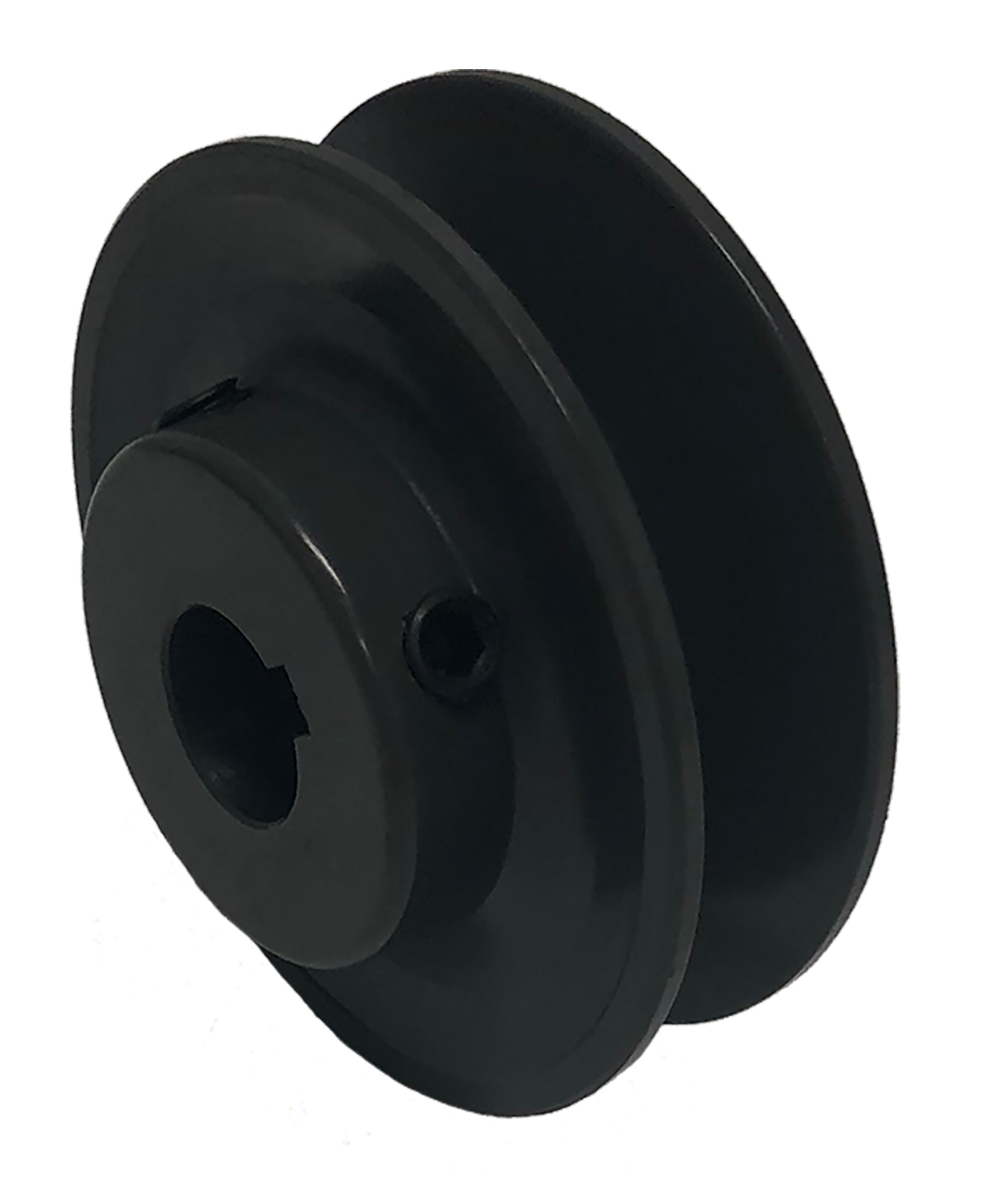

POWER DRIVE BK60-1 Fixed Pitch Sheave

Product Description

The POWER DRIVE BK60-1 Fixed Pitch Sheave is a single-groove sheave designed for efficient power transmission across various applications. This sheave is made from durable cast iron, ensuring long-lasting performance. It accommodates several belt types including 4L, 5L, A, or B section belts. The fixed-bore design allows for easy installation and secure operation.

• Single groove sheave construction.
• Suitable for use with 4L, 5L, A, or B section belts.
• Made from robust cast iron.

Product Highlights

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK60-1

Technical Specifications

• Type: Fixed Pitch Sheave
• Model: BK60-1
• Groove Type: Single Groove
• Bore Size: 1.125 inches
• Outside Diameter: 5.75 inches
• Material: Cast Iron
• Belt Size: 4L, 5L, A, B
• Grooves: 1
• Bore Type: Finished Bore
• Face Width: 0.875 inches
• Overall Length: 1.281 inches
• Hub Diameter: 2.375 inches
• Min. Bore: 0.5 inches
• Unit System: Inch
• Pitch Dia. A: 5.000
• Pitch Dia. B: 5.400
• Sheave Type: BK
• For Belt Type: 4L, 5L, A, or B
• Weight: 3.50 lb
• Set Screw Quantity: 1
