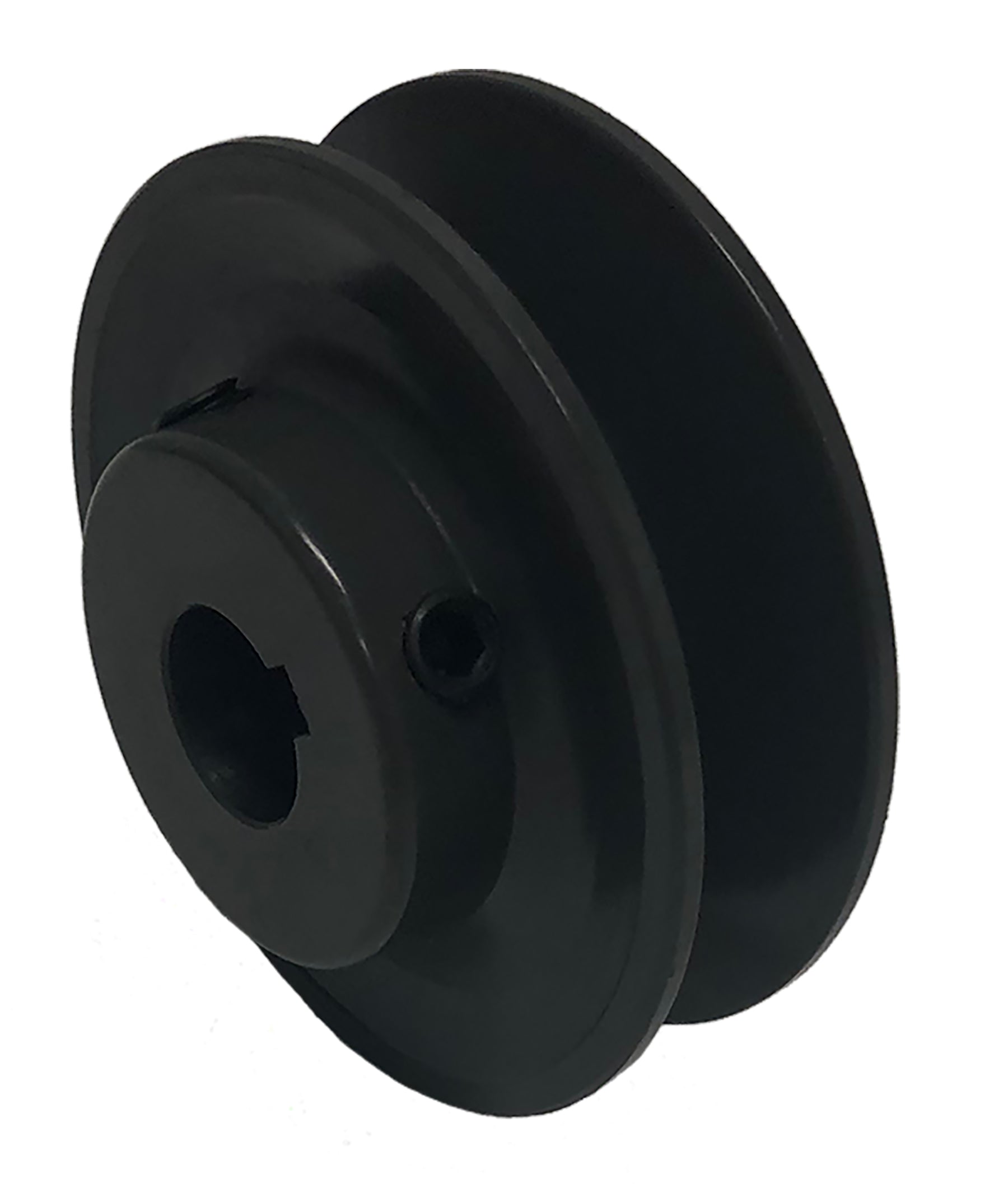

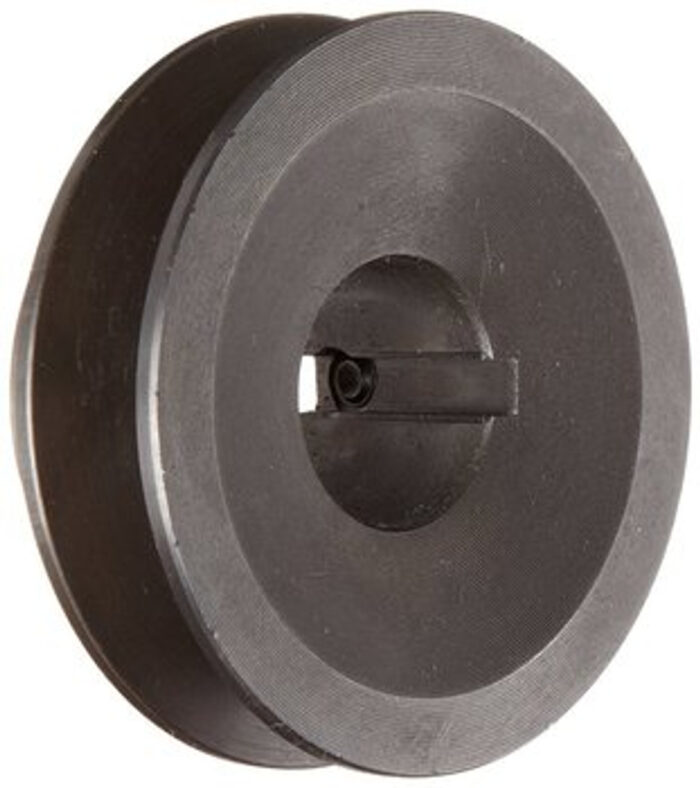

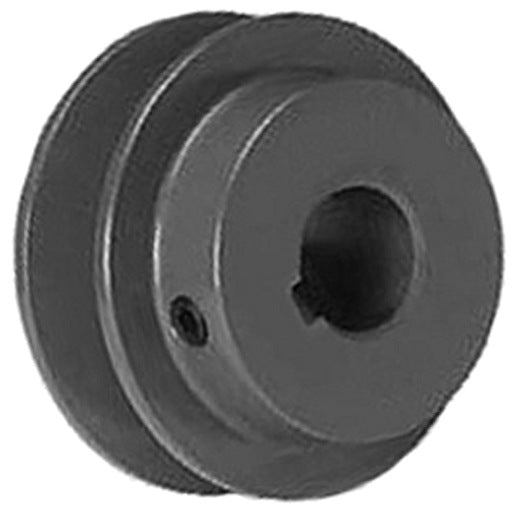

POWER DRIVE BK60-1-1/8 Fixed Pitch Sheave

Product Description

The POWER DRIVE BK60-1-1/8 is a fixed pitch sheave designed for power transmission applications. This sheave features a single groove and has a finished bore size of one and one-eighth inches. The durable cast iron construction ensures long-lasting performance. The outside diameter measures five point seventy-five inches. It can accommodate various belt types including 4L, 5L, A, or B.

• Type: Fixed Pitch Sheave
• Bore Size: 1-1/8 inch finished bore
• Compatible Belt Type: 4L, 5L, A, or B

Product Highlights

Designed for reliability in power transmission with versatility in belt compatibility.

Product Information

Standard Information

• Manufacturer Part Number: BK60-1-1/8
• Material: Cast Iron

Technical Specifications

• Sheave Type: BK
• Bore Type: Finished Bore
• Bore Size: 1.125 inches
• Outside Diameter: 5.75 inches
• Face Width: 0.875 inches
• Overall Length: 1.281 inches
• Hub Diameter: 2.375 inches
• Minimum Bore: 0.5 inches
• Unit System: Inch
• Pitch Diameter A: 5.000 inches
• Pitch Diameter B: 5.400 inches
• Weight: 3.50 lbs
• Grooves: 1
• Set Screw Quantity: 1
