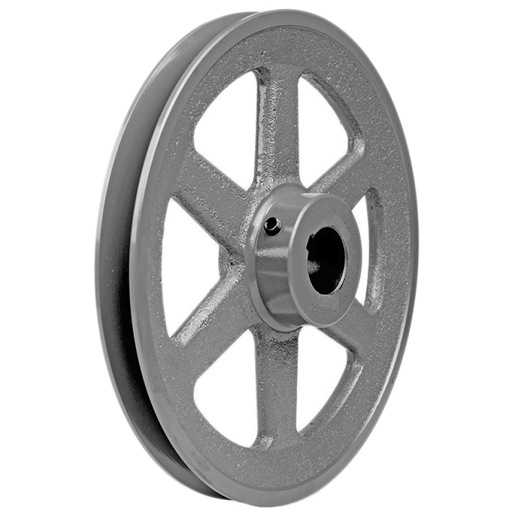

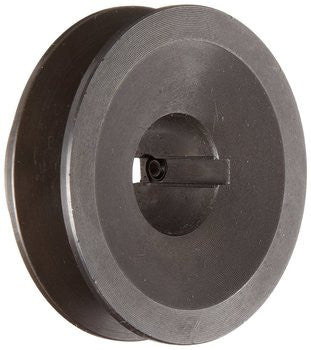

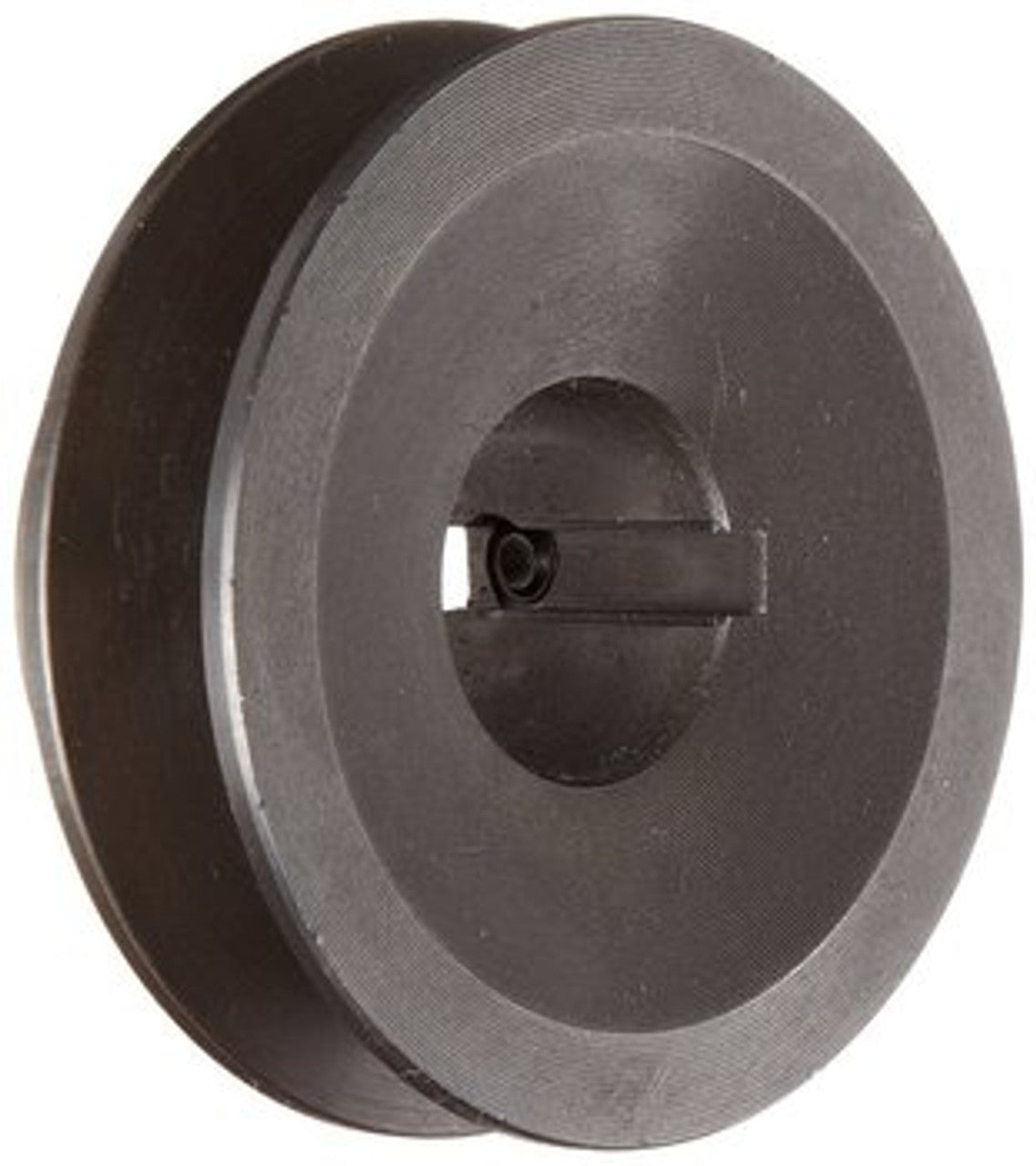

POWER DRIVE BK55-1-1/8 Fixed Pitch Sheave

Product Description

The POWER DRIVE BK55-1-1/8 is a fixed pitch sheave with a single groove, designed for effective power transmission.

• Compatible with 4L, A, 5L, and B section belts.
• Sized with a 1-1/8 inch bore for stability.
• Measures 5.25 inches in outside diameter.

Product Highlights

This sheave is built for durability and precise performance in various applications.

Product Information

Standard Information

• MPN: BK55-1-1/8
• Type: Fixed Pitch Sheave

Technical Specifications

• Number of Grooves: 1
• Belt Series: 4L | A | 5L | B
• Bore Size: 1-1/8 inches
• Outside Diameter: 5.25 inches (133.35 millimeter)
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Keyway: Yes
• Pitch Diameter Minimum: 4.5 inches (114.3 millimeter)
• Pitch Diameter Maximum: 4.9 inches (124.46 millimeter)
