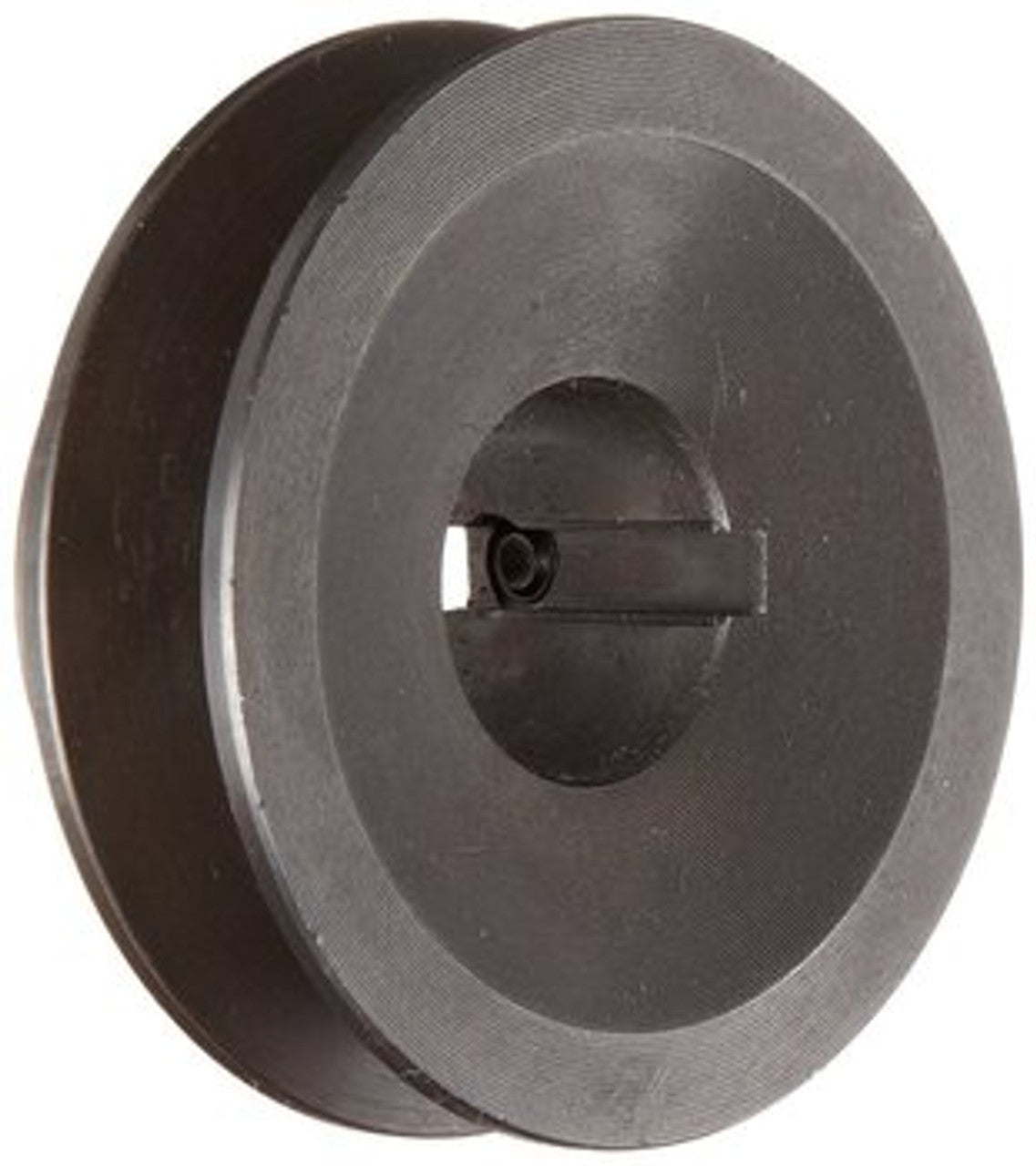

POWER DRIVE BK34-5/8 Sheave

Product Description

The POWER DRIVE BK34-5/8 is a fixed pitch sheave with a five eighths inch bore and a three point five five inch outer diameter. This sheave is designed for V-belt pulley systems, making it suitable for power transmission in mechanical and industrial applications. It features a single groove and does not require a bushing for installation.

• Bore size of five eighths inch.
• Outer diameter of three point five five inches.
• Configured for use with belt series 4L, A, 5L, and B.

Product Highlights

This sheave aids in efficient power transmission and is built for durability and ease of use.

Product Information

Standard Information

• Manufacturer Item Number: BK34-5/8
• Bore Size: five eighths inch

Technical Specifications

• Bore: 0.625 inch | fifteen point eight seven five millimeter
• Outside Diameter: three point five five inches | ninety point one seven millimeter
• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 4L | A | 5L | B
• Pitch Diameter Minimum: two point eight inch | seventy one point one two millimeter
• Pitch Diameter Maximum: three point two inch | eighty one point two eight millimeter
