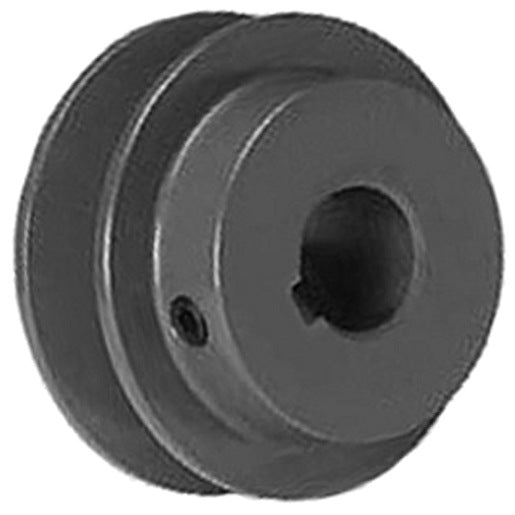

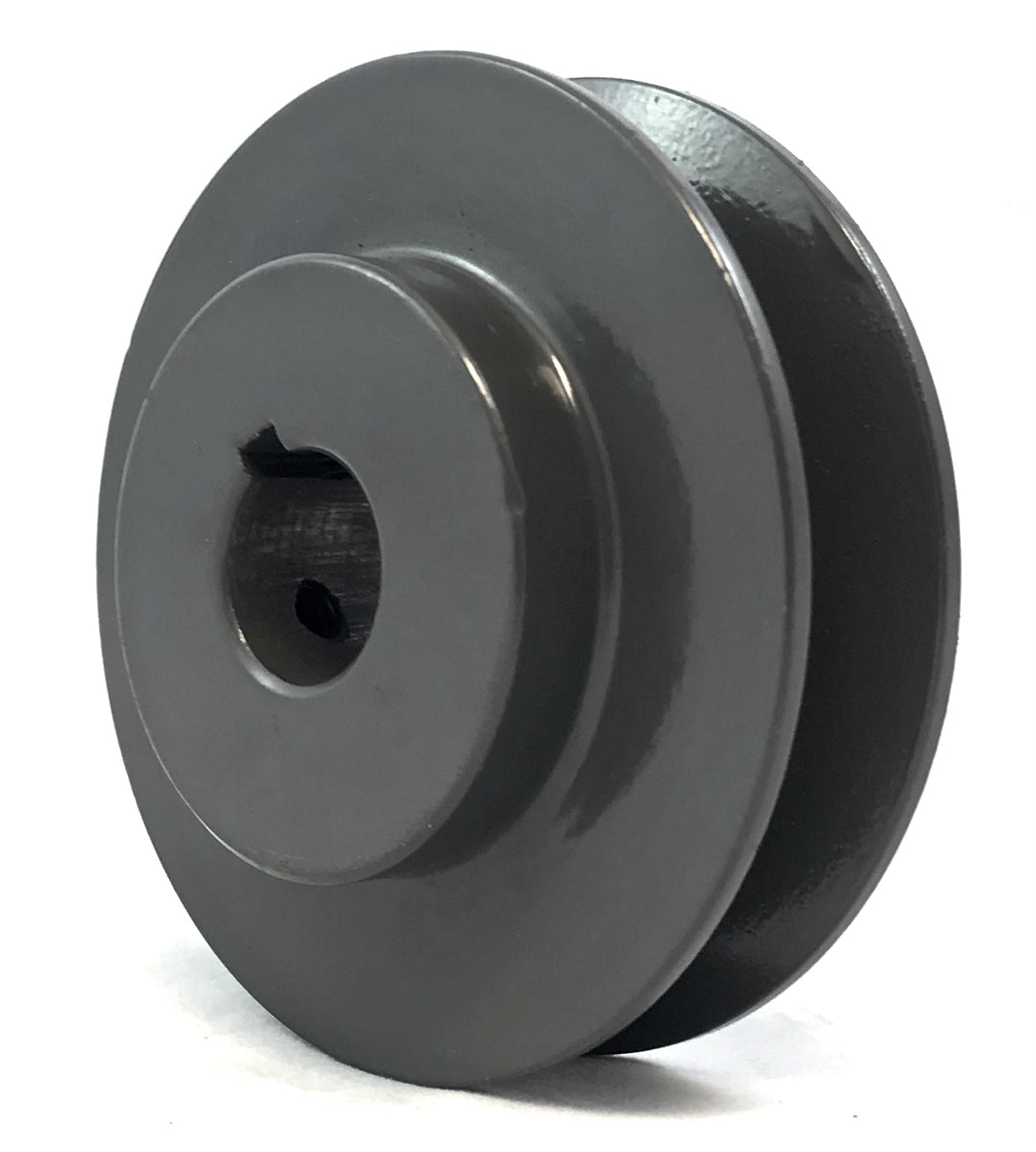

POWER DRIVE BK34-1 Fixed Pitch Sheave

Product Description

The POWER DRIVE BK34-1 fixed pitch sheave is suitable for various power transmission systems. It complies with ARPM Standard IP20, ensuring reliability. This sheave works with A, 4L, B, 5L, AX, BX, AA, and BB belts, making it a versatile option. The pulley is dynamically balanced for smoother operation. Additionally, it comes with a phosphate-coated and painted finish to enhance durability.

• Fixed pitch sheave for reliable power transmission.
• Complies with ARPM Standard IP20.
• Compatible with multiple belt types.

Product Highlights

This fixed pitch sheave provides essential support in mechanical setups, ensuring efficient power transfer.

Product Information

Standard Information

• Manufacturer Part Number: BK34-1
• Sheave Type: Fixed Pitch

Technical Specifications

• Pulley Size: BK34
• Outside Diameter: 3.55 inches
• Pitch Diameter for 4L/A Belts: 2.80 inches
• Pitch Diameter for 5L/B Belts: 3.20 inches
• Pulley Type: 2
• Bore Size: 1 inch
• Key-Way Size: 1/4 x 1/8 inches
• Dimension (F): 7/8 inches
• Dimension (L): 1-5/32 inches
• Dimension (P): 13/32 inches
• Dimension (C): 1/8 inches
