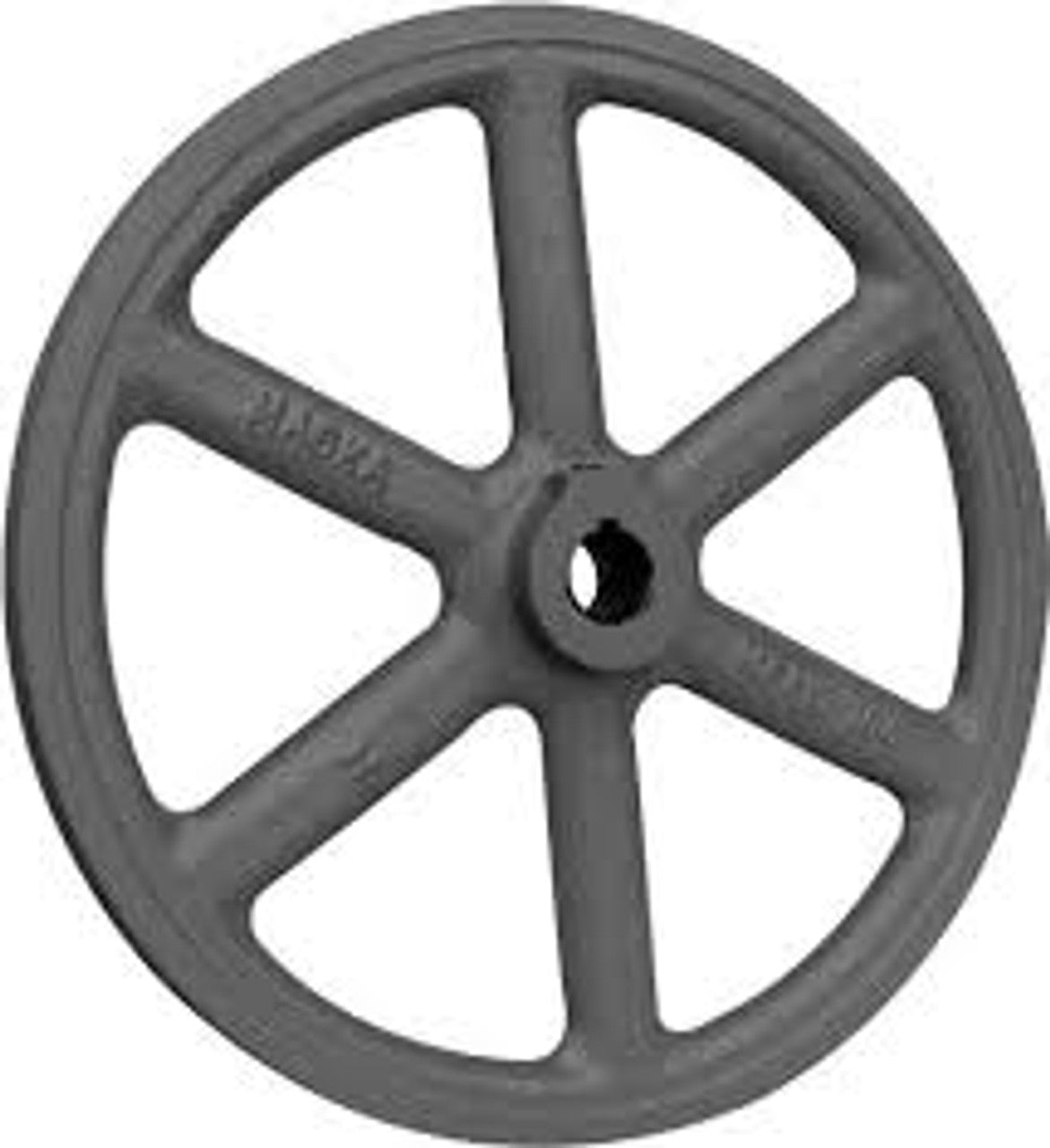

POWER DRIVE BK120H V-Belt Pulley

Product Description

The POWER DRIVE BK120H V-Belt Pulley is a reliable component designed to work with A (4L) and B (5L) V-belts. This single-groove sheave is made of cast iron, ensuring durability and strength for power transmission applications. The pulley has a QD bore type, which is compatible with an H bushing that needs to be purchased separately.

• Constructed from cast iron for durability
• Single groove for simple belt placement
• Designed for use with H bushing (sold separately)

Product Highlights

The POWER DRIVE BK120H is suitable for various industrial uses requiring effective power transmission.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK120H

Technical Specifications

• Sheave Type: BK
• Grooves: 1
• Outside Diameter: 11.75 inches
• Material: Cast Iron
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width: 0.875 inches
• Overall Length: 1.563 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Bushing: H
• For Belt Type: 4L, 5L, A, or B
• Weight: 6.90 lb
• Pitch Diameter A: 11.000 inches
• Pitch Diameter B: 11.400 inches
• Application: V-Belt Pulleys
• Type: Split Taper Bore
