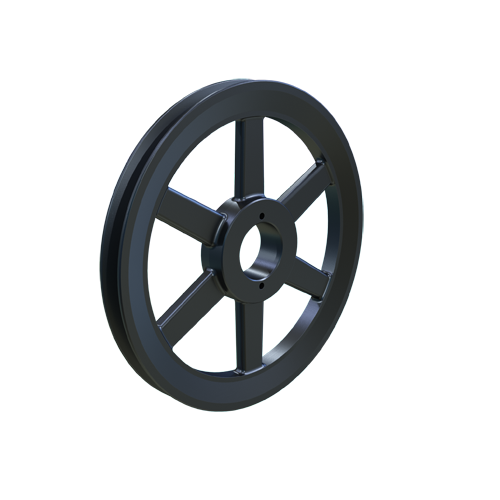

POWER DRIVE BK115H Single Groove Fixed Pitch Sheave

Product Description

The POWER DRIVE BK115H is a fixed pitch sheave suitable for A (4L) and B (5L) V-belts. Constructed from durable cast iron, this sheave has a single groove and is compatible with H style QD bushings, which are sold separately. The product is statically balanced and features a baked enamel finish.

• Single groove design
• Constructed from cast iron
• Compatible with H style QD bushings

Product Highlights

The sheave is ideal for use in mechanical applications where V-belts are employed, ensuring reliable power transmission.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK115H

Technical Specifications

• Outside Diameter: 11.25 inches
• Groove Type: Single Groove
• Material: Cast Iron
• Sheave Type: BK
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width: 0.875 inches
• Overall Length: 1.563 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Bushing: H
• Weight: 6.40 lbs
• Grooves: 1
• For Belt Type: 4L, 5L, A, or B
• Pitch Dia. A: 10.500 inches
• Pitch Dia. B: 10.900 inches
