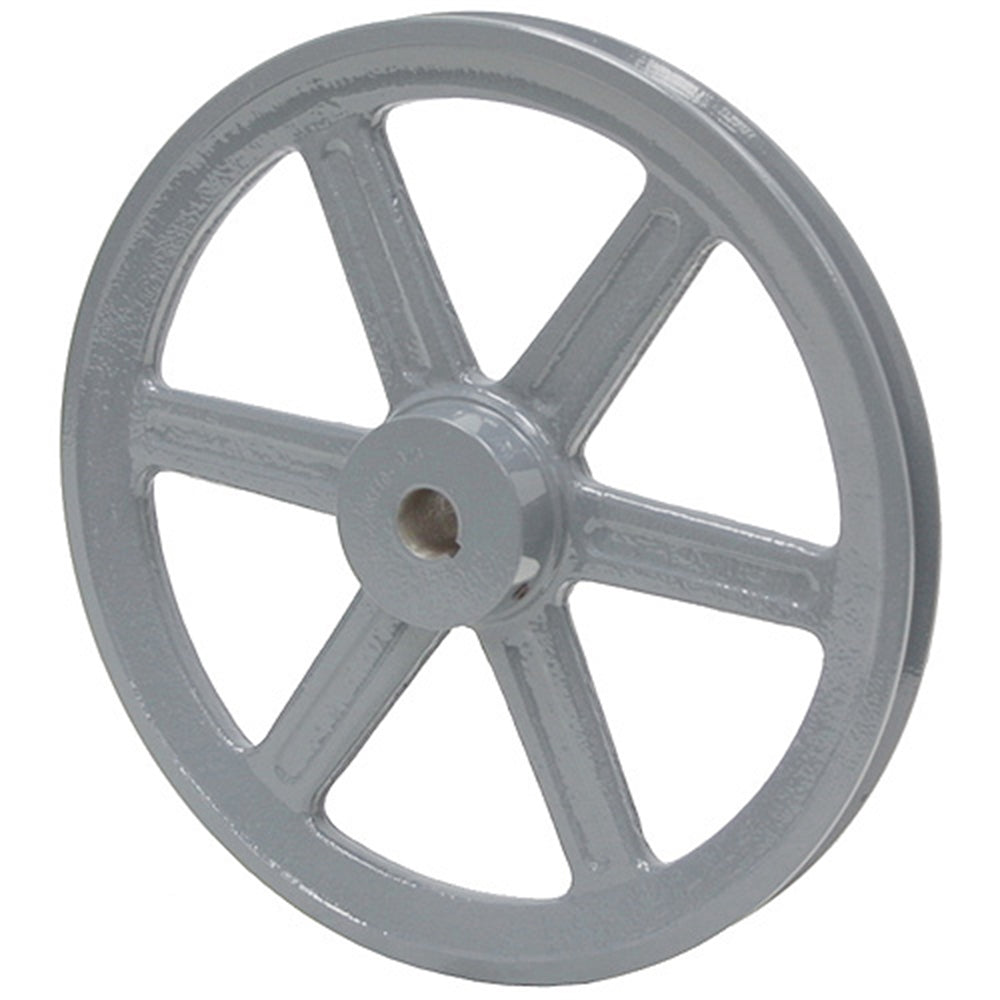

POWER DRIVE BK100H V-Belt Pulley

Product Description

The POWER DRIVE BK100H is a single-groove, fixed-pitch sheave made for A (4L) and B (5L) V-belts. This pulley has a nine point seventy-five inch outside diameter and is designed from durable cast iron. It features a bored design for an H bushing and uses QTL quick detachable taper bushings. The pulley is balanced and includes a keyway along with a set-screw.

• Single groove design
• Compatible with A (4L) and B (5L) V-belts
• Constructed from durable cast iron

Product Highlights

Ideal for use in various industrial applications, providing reliable performance and ease of installation.

Product Information

Standard Information

• Manufacturer Part Number: BK100H
• Weight: 5.20 lb

Technical Specifications

• Outside Diameter: 9.75 inches
• Grooves: 1
• Material: Cast Iron
• Belt Type: Compatible with 4L, 5L, A, and B belts
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width: 0.875 inches
• Overall Length: 1.563 inches
• Minimum Bore: 0.375 inches
• Pitch Diameter A: 9.000 inches
• Pitch Diameter B: 9.400 inches
• Sheave Type: BK
