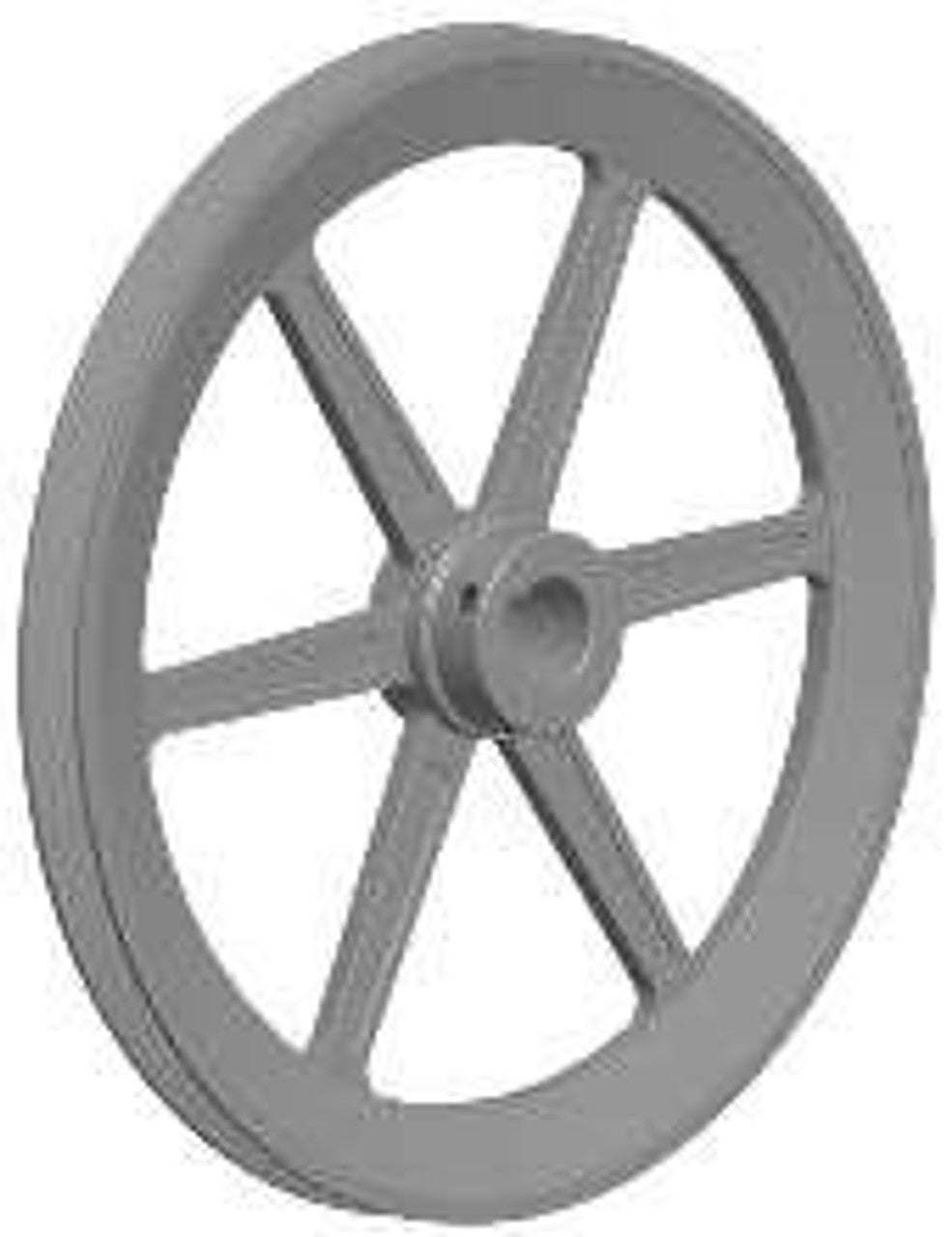

POWER DRIVE AL64-3/4 Single Groove Fixed Bore Sheave

Product Description

The POWER DRIVE AL64-3/4 is a single groove, fixed bore sheave. This component is made from cast iron and comes with an outside diameter of five point nine three inches and a bore size of three fourths inches. Designed for use with A (4L) V-belts, this sheave is ideal for various power transmission applications. The sheave has a finished bore, and it does not come with a bushing or keyway.

• Single groove design
• Fixed bore size of three fourths inches
• Compatible with A (4L) V-belts

Product Highlights

This sheave operates effectively in HVAC systems and is suited for a range of mechanical drives.

Product Information

Standard Information

• Manufacturer Part Number: AL64-3/4
• Material: Cast Iron

Technical Specifications

• Groove Type: Single Groove
• Bore Type: Fixed Bore
• Outside Diameter: five point nine three inches | one hundred fifty point six two two millimeters
• Bore Size: three fourths inches | nineteen point zero five millimeters
• Belt Compatibility: A (4L) V-Belts
• Mounting Type: Finished Bore
• Bushing Included: No Bushing
• Keyway Included: No
• Pitch Diameter Minimum: five point seven eight inches | one hundred forty six point eight one two millimeters
• Pitch Diameter Maximum: five point seven eight inches | one hundred forty six point eight one two millimeters
• Application: HVAC
• Sheave Type: Fixed Pitch
• Category: Pulley
