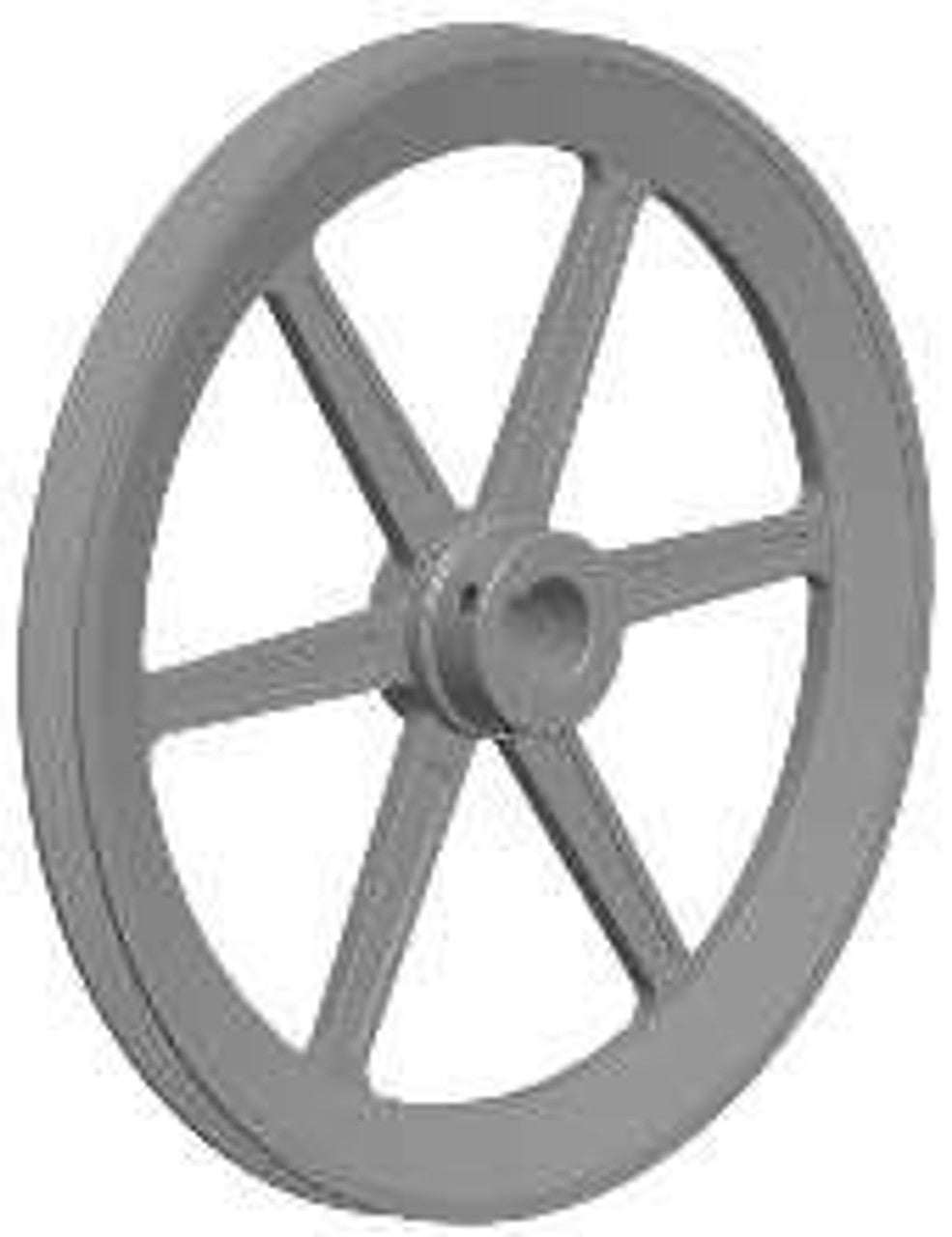

POWER DRIVE AL104-1 Fixed Pitch Sheave

Product Description

The POWER DRIVE AL104-1 is a fixed pitch sheave designed for power transmission applications. It is made from cast iron and features a single groove for reliable performance. This sheave works with A (4L) V-belts and includes a one-inch bore, making it suitable for various mechanical setups.

• Fixed pitch sheave with a single groove
• Features a one-inch bore
• Compatible with A (4L) V-belts

Product Highlights

This sheave is ideal for applications requiring durable and efficient power transmission.

Product Information

Standard Information

• Type: Fixed Pitch Sheave
• Material: Cast Iron

Technical Specifications

• Number of Grooves: 1
• Bore Size: 1 Inch
• Outside Diameter: 9.93 Inch
• Compatible Belt Series: 4L, A
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Keyway: No
• Pitch Diameter Minimum: 9.78 Inch
• Pitch Diameter Maximum: 9.78 Inch
