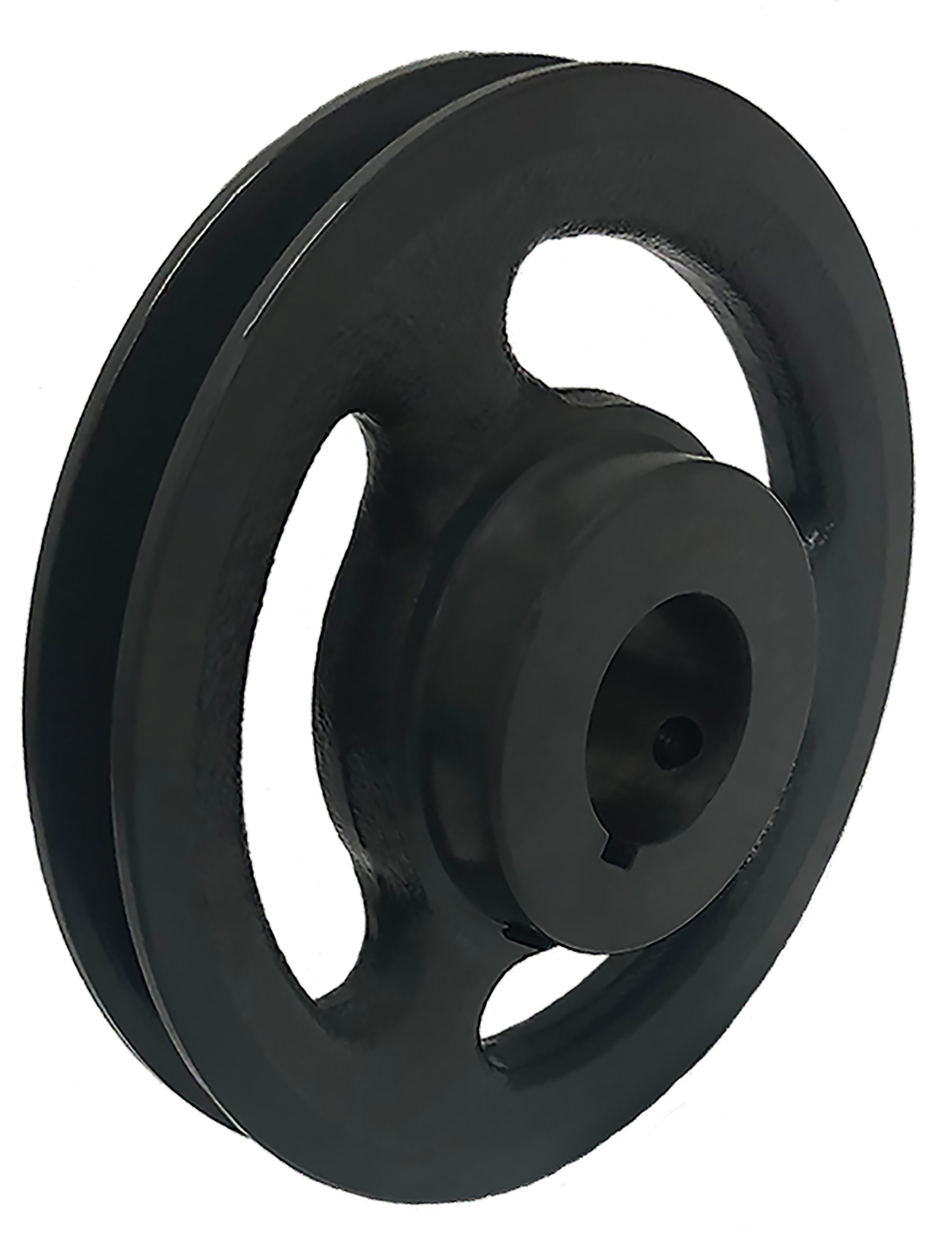

POWER DRIVE AK84-1-3/16 V-Belt Pulley

Product Description

The POWER DRIVE AK84-1-3/16 is a V-belt pulley used for power transmission across different applications. This fixed pitch sheave is made from cast iron and has a finished bore measurement of one and three sixteenths inches. Compatible with 4L, 3L, or A belts, this pulley features a single groove design and comes with one set screw.

• Constructed from durable cast iron.
• Finished bore of one and three sixteenths inches.
• Compatible with belt types 4L, 3L, or A.

Product Highlights

This pulley is suited for various power transmission needs within mechanical systems.

Product Information

Standard Information

• Sheave Type: AK
• Grooves: 1

Technical Specifications

• For Belt Type: 4L, 3L, or A
• Bore Type: Finished Bore
• Bore: 1.188 inches
• Outside Diameter: 8.250 inches
• Pitch Diameter A: 8.000 inches
• Pitch Diameter 3L: 7.660 inches
• Face Width: 0.750 inches
• Overall Length: 1.469 inches
• Hub Diameter: 2.375 inches
• Minimum Bore: 0.5 inches
• Material: Cast Iron
• Weight: 5.00 lb
• Set Screw Quantity: 1
• Type: Fixed Pitch Sheave
• Unit System: Inch
