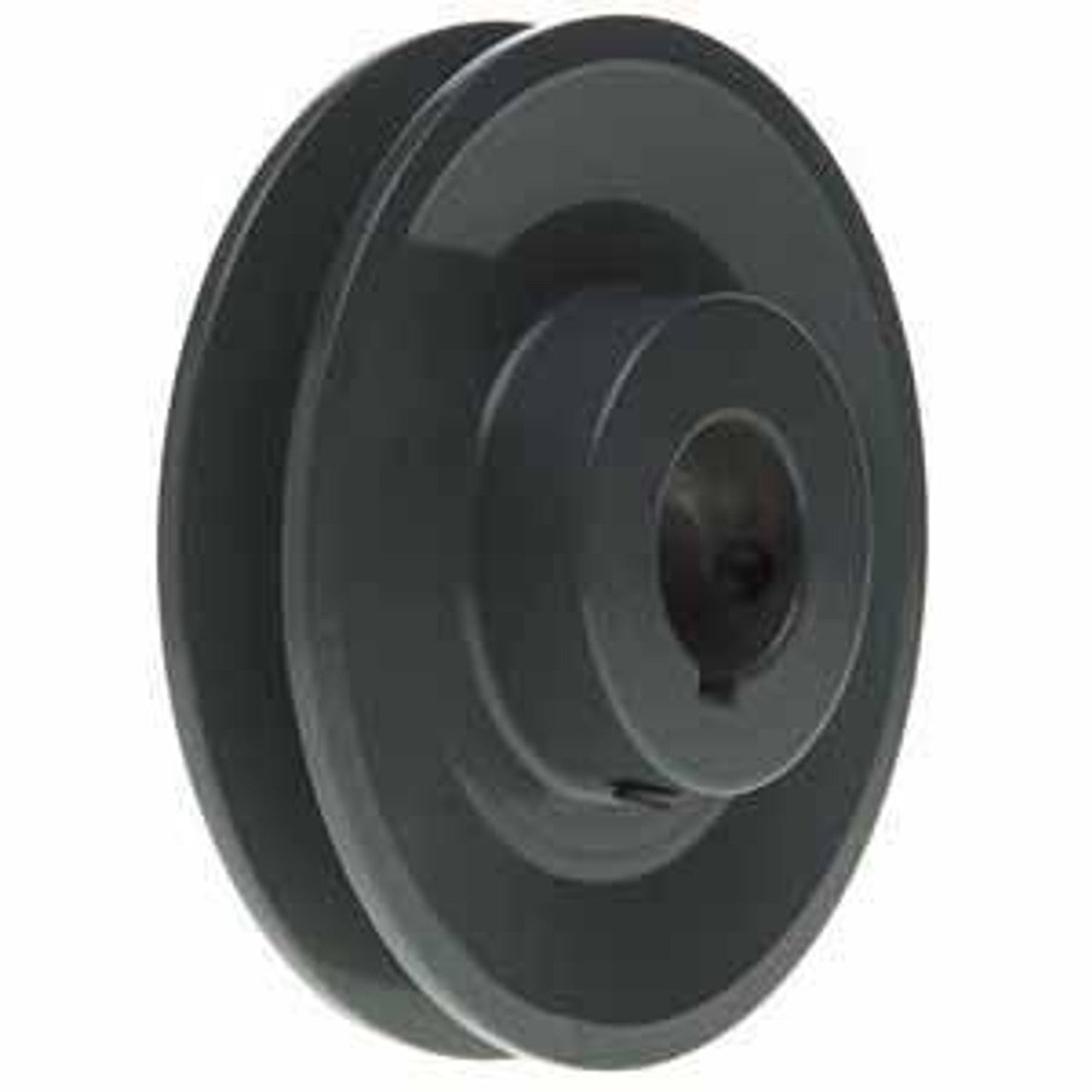

POWER DRIVE AK71-5/8 Fixed Pitch Sheave

Product Description

The POWER DRIVE AK71-5/8 is a fixed pitch sheave designed for effective power transmission. This product features a single groove and is suitable for various belt series, including 3L, 4L, and A. The sheave comes with a bore size of five eighths inches and has an outside diameter of six point ninety-five inches.

• Single groove design for optimal use
• Compatible with multiple belt types
• Includes a keyway for secure installation

Product Highlights

This sheave is ideal for applications needing reliable power transmission solutions.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: AK71-5/8

Technical Specifications

• Type: Fixed Pitch Sheave
• Model: AK71-5/8
• Number of Grooves: 1
• Bore Size: 5/8 Inch
• Outside Diameter: 6.95 Inch | 176.53 Millimeter
• Mounting Method: Finished Bore
• Belt Series: 3L | 4L | A
• Keyway: Yes
• Pitch Diameter Minimum: 6.36 Inch | 161.544 Millimeter
• Pitch Diameter Maximum: 6.7 Inch | 170.18 Millimeter
• Belt Width Minimum: 0.375 Inch | 9.525 Millimeter
• Belt Width Maximum: 0.5 Inch | 12.7 Millimeter
