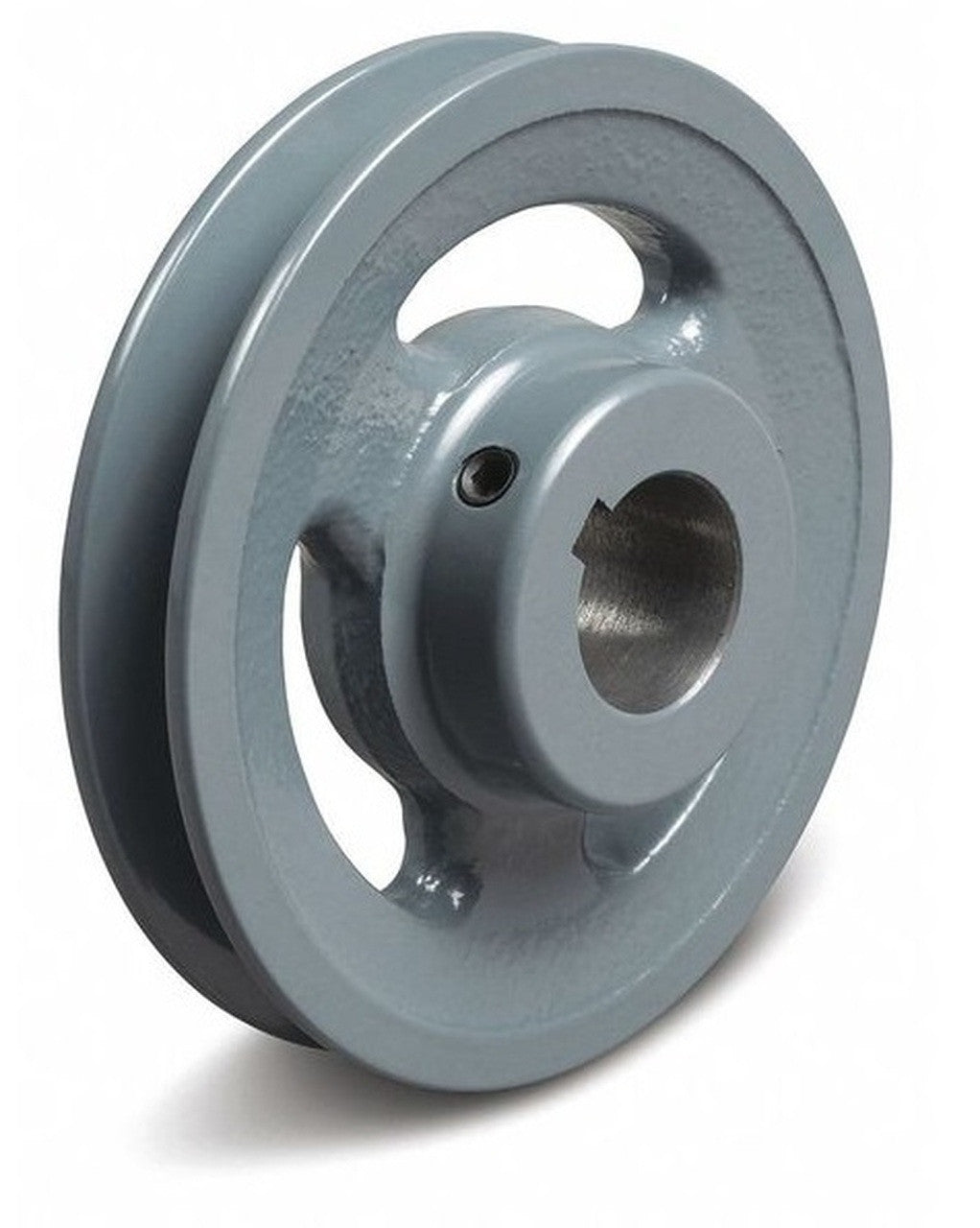

POWER DRIVE AK69-3/4 Fixed Pitch Sheave

Product Description

The POWER DRIVE AK69-3/4 Fixed Pitch Sheave is a reliable component for power transmission applications. This sheave features a fixed pitch design, ensuring consistent performance. It is made from durable cast iron, making it suitable for demanding environments. The sheave has a three-quarter inch bore and includes a single groove, accommodating A or 4L belts.

• Type: Fixed Pitch Sheave
• Compatible Belt Series: 4L, A
• Bore Type: Finished Bore with Keyway and Set Screws

Product Highlights

The product is designed for ease of use and secure mounting, featuring a keyway and set screws.

Product Information

Standard Information

• Weight: 3.5 lbs
• Material: Cast iron

Technical Specifications

• Type: Fixed Pitch Sheave
• Size: 3/4 inch
• Outer Diameter: 6.75 inches
• Shaft Size: 3/4 inch
• Bore Diameter: 0.875 inches
• Length Through Bore: 1.15625 inches
• OD: 5.75 inches
• Compatible Belt Series: 4L, A
• Number of Belt Grooves: 1
• Finish/Coating: Grey Painted Protective Coating
