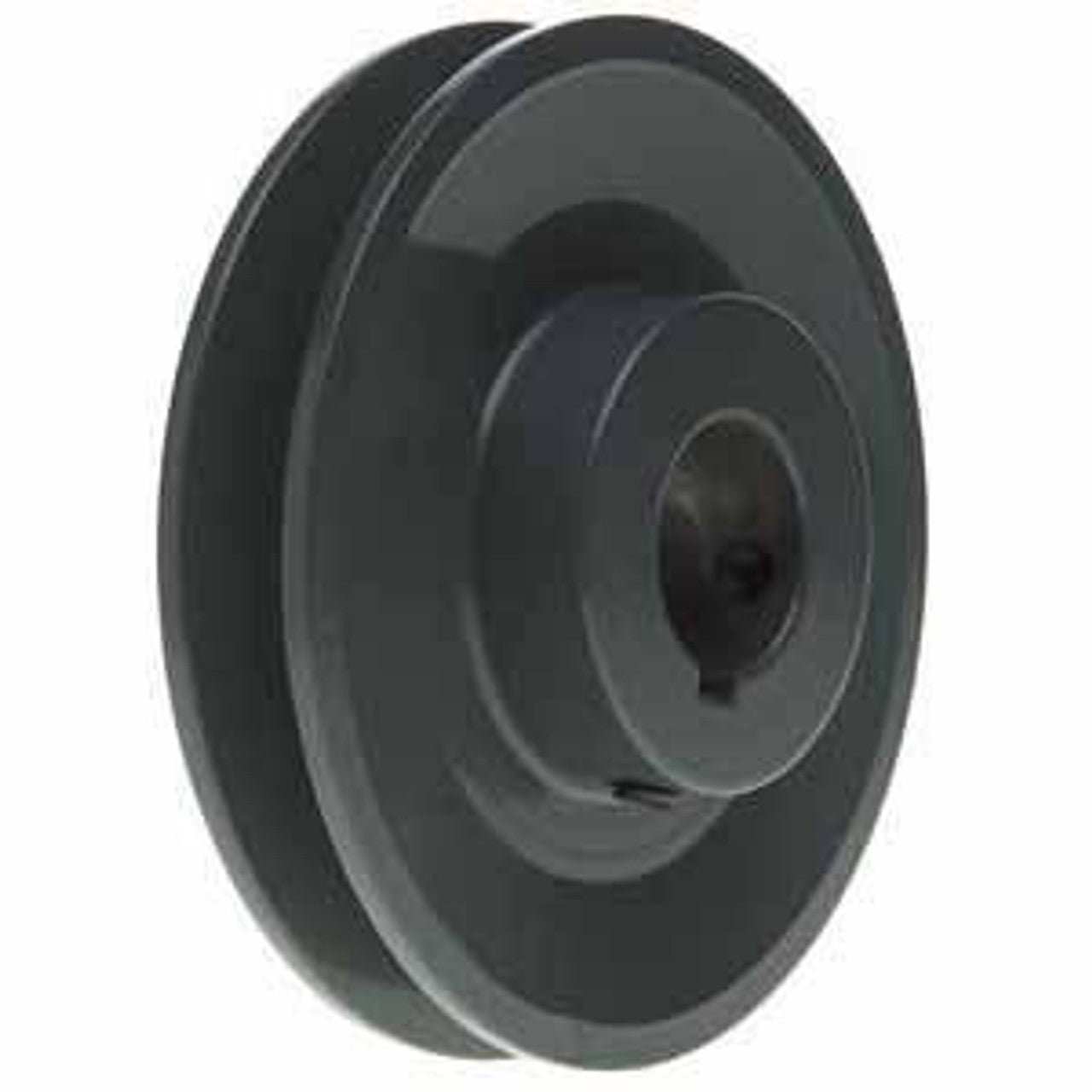

POWER DRIVE AK61-1/2 Fixed Pitch Sheave

Product Description

The POWER DRIVE AK61-1/2 is a fixed pitch sheave designed for reliable power transmission. With a single groove and a bore size of one half inch, this sheave effectively interacts with various belt series. It has an outside diameter of five point nine five inches.

• Single groove design for optimal performance
• Fixed bore for stability
• Compatible with 3L, 4L, and A belt series

Product Highlights

This sheave is ideal for use in applications requiring effective belt drive systems. Its compact design ensures compatibility with commonly used belt series.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: AK61-1/2

Technical Specifications

• Manufacturer Part Number: AK61-1/2
• Outside Diameter: 5.95 inches (151.13 millimeters)
• Bore Size: 1/2 inch (12.7 millimeters)
• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing

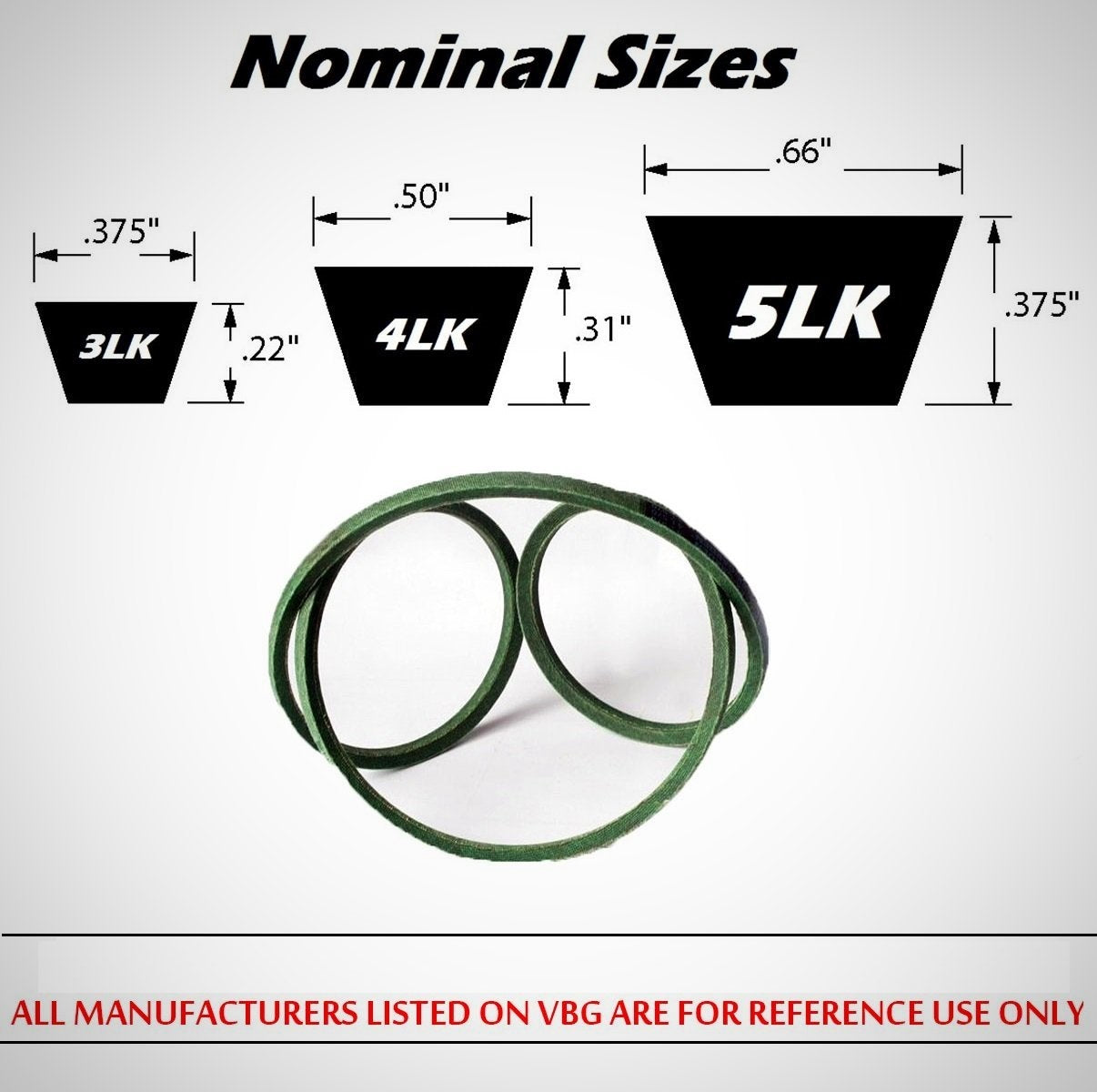

• Belt Series: 3L, 4L, A
• Keyway: No
• Pitch Diameter Minimum: 5.36 inches (136.144 millimeters)
• Belt Width Maximum: 0.5 inch (12.7 millimeters)
• Belt Width Minimum: 0.375 inch (9.525 millimeters)
