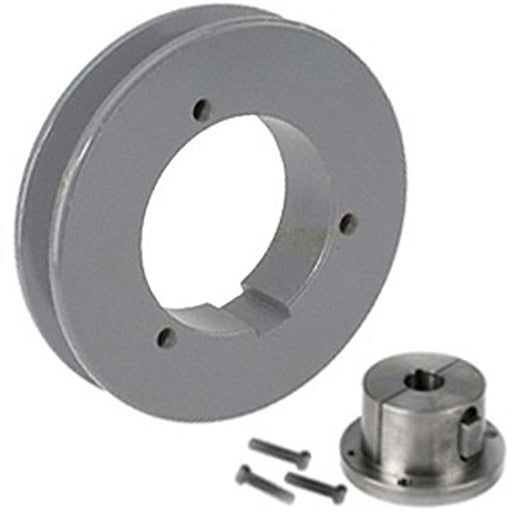

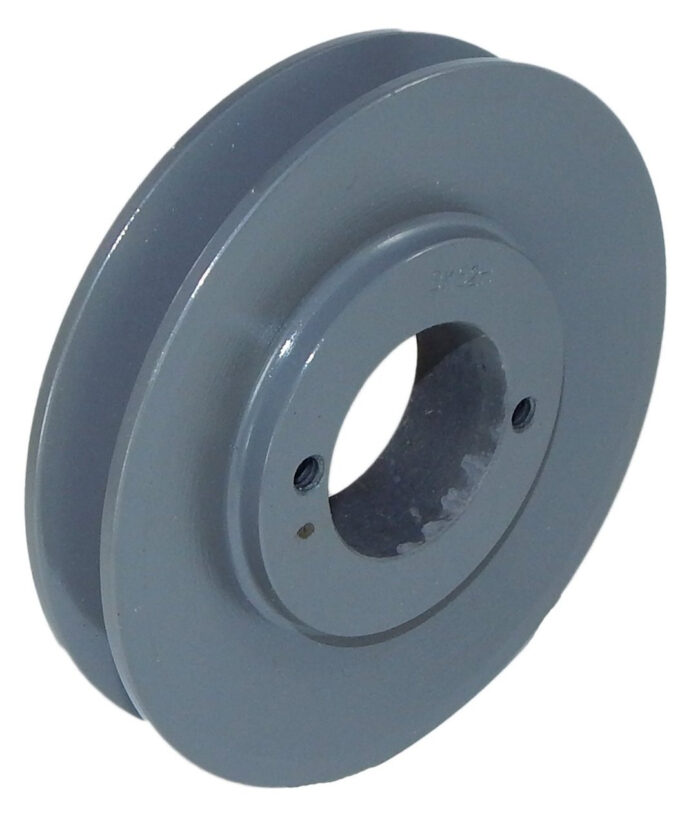

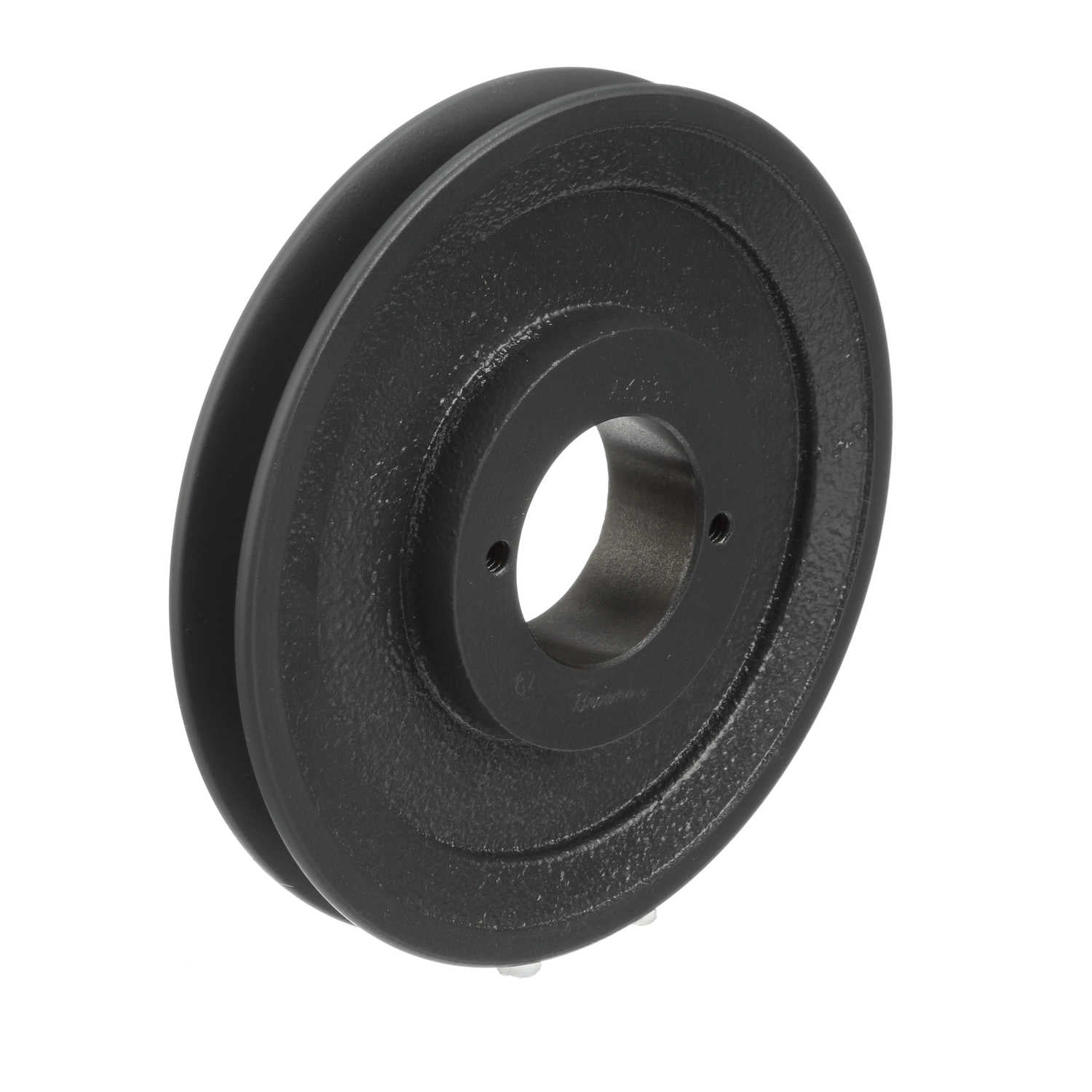

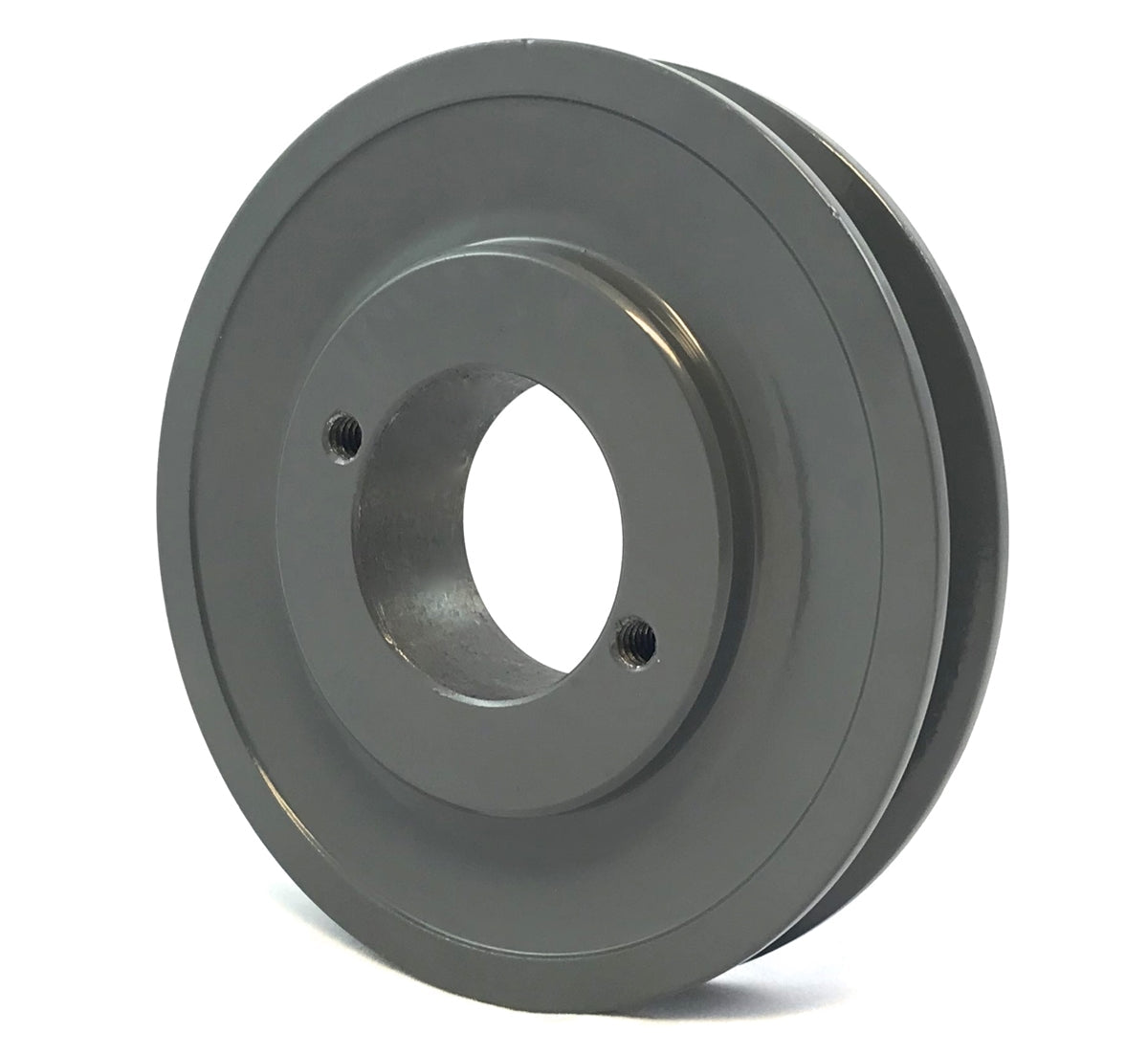

POWER DRIVE AK59H Single Groove V-Belt Pulley

Product Description

The POWER DRIVE AK59H is a single groove pulley made for A, 3L, or 4L V-belts. This robust pulley is constructed from cast iron, ensuring durability and reliability in various applications. It has an outside diameter of five point seventy-five inches and requires an H style bushing, which is sold separately. This product meets ARPM Standard IP20 for quality assurance.

• Compatible with A, 3L, or 4L V-belts
• Requires H style bushing for proper installation
• Features a keyway for secure attachment

Product Highlights

The AK59H series is designed for robust applications, ensuring compatibility with various V-belts while providing ease of installation with a bushed mounting method.

Product Information

Standard Information

• Brand: Power Drive
• MPN: AK59H

Technical Specifications

• Type: V-Belt Pulley
• Material: Cast Iron
• Groove: Single Groove
• Compatible Belts: A, 3L, 4L
• Outside Diameter: 5.75 inches
• Pitch Diameter Maximum: 5.50 inches
• Pitch Diameter Minimum: 5.16 inches
• Width: 1.5 inches
• Weight: 0.9 lbs
• Bushing Requirement: H Style Bushing
• Number of Grooves: 1
• Mounting Method: Bushed
• Keyway: Yes
