Power Drive AK59-5/8 Fixed Pitch Sheave

Product Description

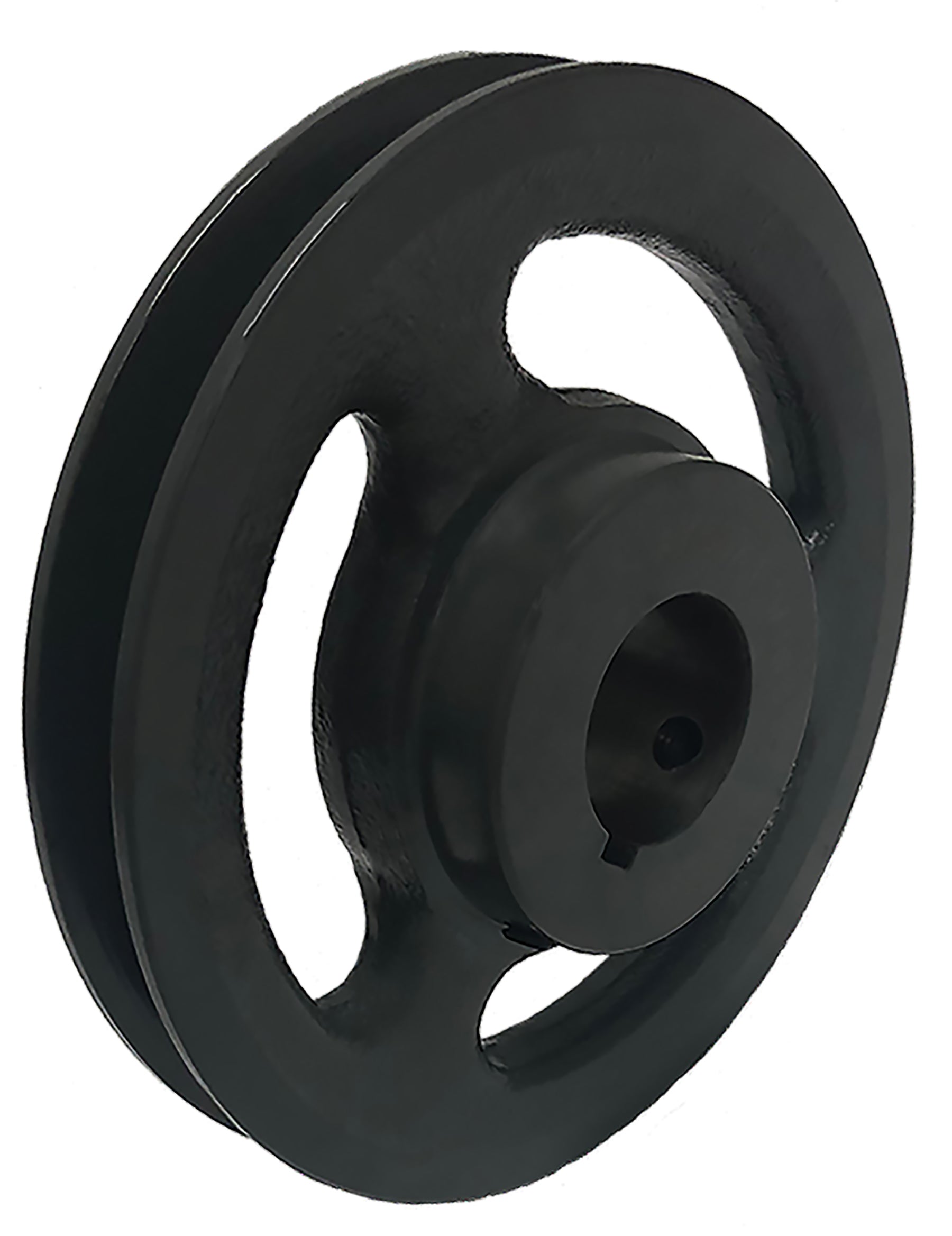

The Power Drive AK59-5/8 Fixed Pitch Sheave is a sturdy single-groove sheave designed for reliable power transmission. This fixed-bore sheave has a bore size of five eighths inches and an outside diameter of five point seventy-five inches. Made from durable cast iron, it works with 4L, 3L, or A belts effectively.

• Type: Fixed Pitch Sheave
• Grooves: Single Groove
• Bore Type: Finished Bore

Product Highlights

Ideal for various power transmission tasks, this sheave is essential in many applications requiring a reliable pulley system.

Product Information

Standard Information

• Brand: Power Drive
• MPN: AK59-5/8

Technical Specifications

• Sheave Type: AK
• Material: Cast Iron
• Bore Size: 5/8 Inch
• Outside Diameter: 5.75 Inch
• Grooves: 1
• Face Width: 0.750 inch
• Overall Length: 1.219 inches
• Hub Diameter: 1.810 inches
• Min. Bore: 0.5 inch
• Unit System: Inch
• Pitch Diameter A: 5.500
• Pitch Diameter 3L: 5.160
• For Belt Type: 4L, 3L, or A
• Weight: 2.90 lbs
• Set Screw Quantity: 1
