POWER DRIVE AK54-5/8 Fixed Pitch Sheave

Product Description

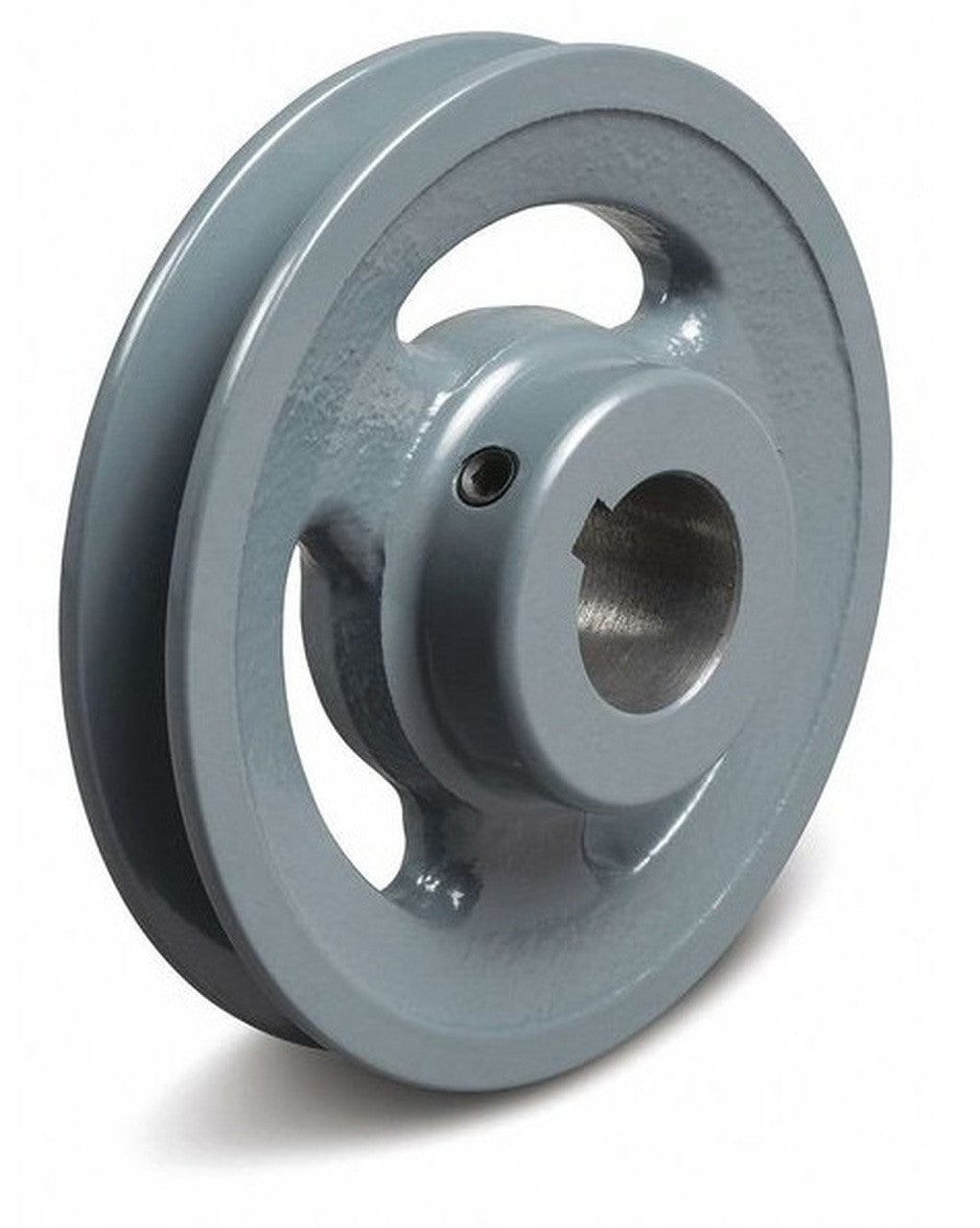

The POWER DRIVE AK54-5/8 Fixed Pitch Sheave is a single-groove pulley designed for power transmission applications. It serves a vital role in efficiently transferring rotational motion and torque. The sheave is engineered with a fixed bore of five eighths inches, designed to accommodate various belt series including 3L, 4L, and A. With an outside diameter of five point twenty-five inches, it is optimal for various machine setups and ensures reliable operation.

• Single groove design for optimal functionality.
• Compatible with 3L, 4L, and A belt series.
• Constructed with a keyway for secure mounting.

Product Highlights

This sheave is essential for effective power transmission in a range of industrial applications, ensuring reliable performance and durability.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: AK54-5/8

Technical Specifications

• Type: Fixed Pitch Sheave
• Number of Grooves: 1
• Outside Diameter: 5.25 inches
• Bore Size: 5/8 inch
• Mounting Method: Finished Bore
• Belt Series: 3L, 4L, A
• Keyway: Yes
• Pitch Diameter Minimum: 4.66 inches
• Pitch Diameter Maximum: 5 inches
• Belt Width Minimum: 0.375 inches
• Belt Width Maximum: 0.5 inches
• Material: Cast iron
