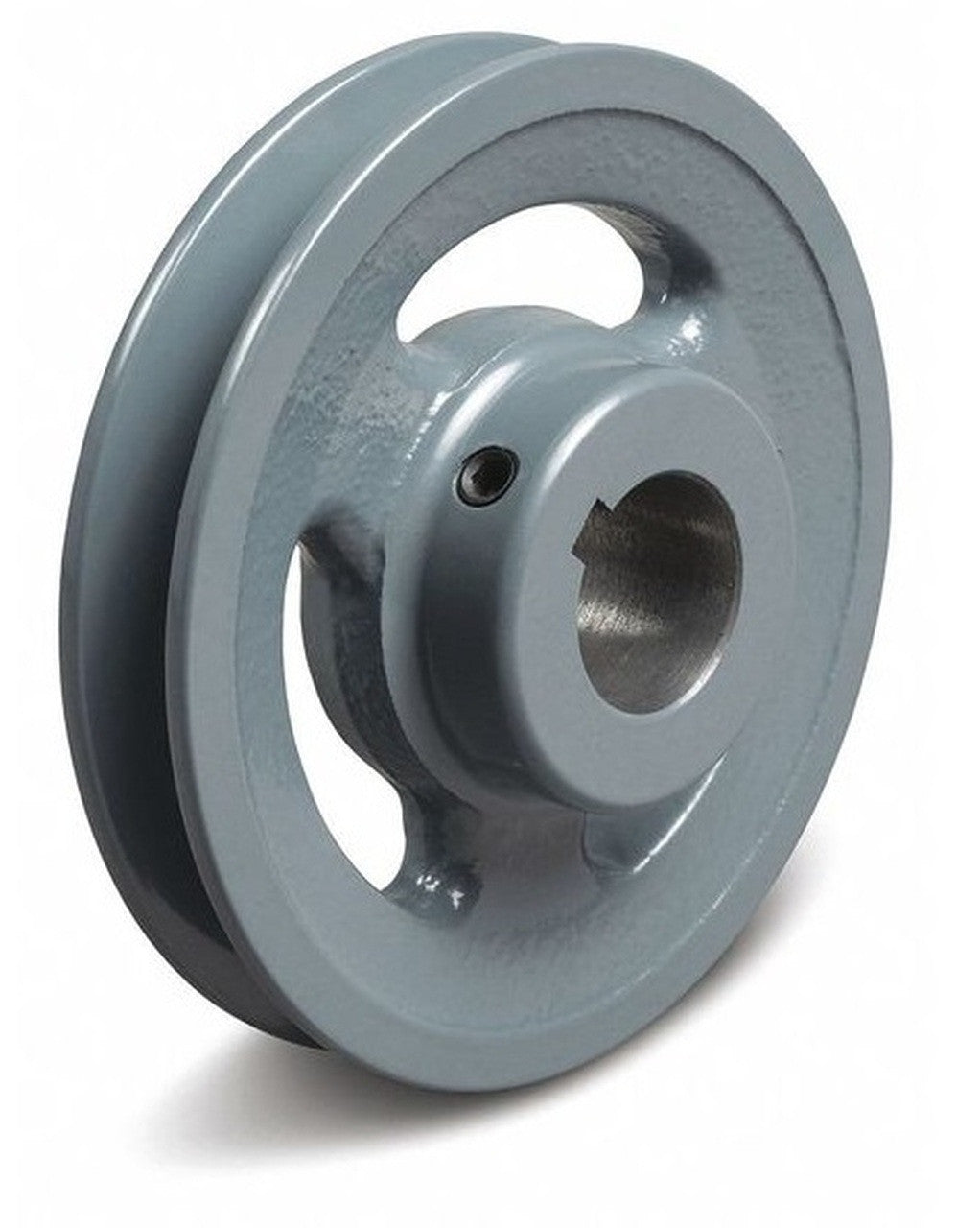

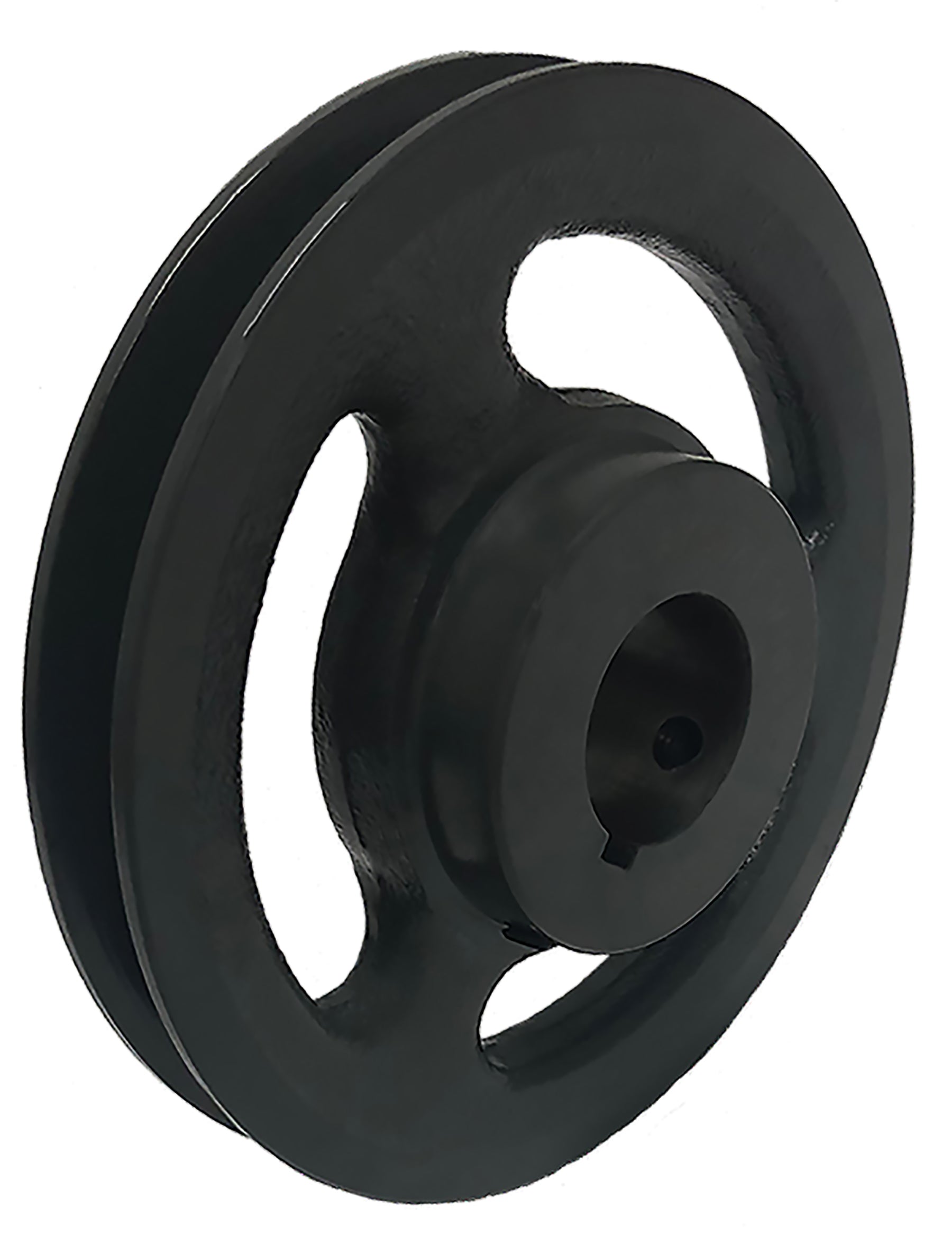

POWER DRIVE AK54-3/4 V-Belt Pulley

Product Description

The POWER DRIVE AK54-3/4 V-Belt Pulley is a reliable single-groove sheave made for power transmission. This product is crafted from cast iron and includes a finished bore measuring three-fourths of an inch. It works effectively with belt types 4L, 3L, and A. The outer diameter is five and one-quarter inches, making it suitable for various machinery.

• Sheave Type: AK
• Material: Cast Iron
• Bore Size: 3/4 inch finished bore

Product Highlights

Product Information

Standard Information

• MPN: AK54-3/4
• UPC: 806372012791

Technical Specifications

• Sheave Type: AK
• Material: Cast Iron
• Bore Type: Finished Bore
• Bore: 0.750 inches
• Outside Diameter: 5.250 inches
• Face Width: 0.750 inches
• Overall Length: 1.219 inches
• Hub Diameter: 1.810 inches
• Min. Bore: 0.5 inches
• Pitch Diameter A: 5.000 inches
• Pitch Diameter 3L: 4.660 inches
• For Belt Type: 4L, 3L, or A
• Weight: 2.40 lb
• Grooves: 1
• Set Screw Quantity: 1
• Shaft Size: 3/4
• Type: Fixed Pitch Sheave
