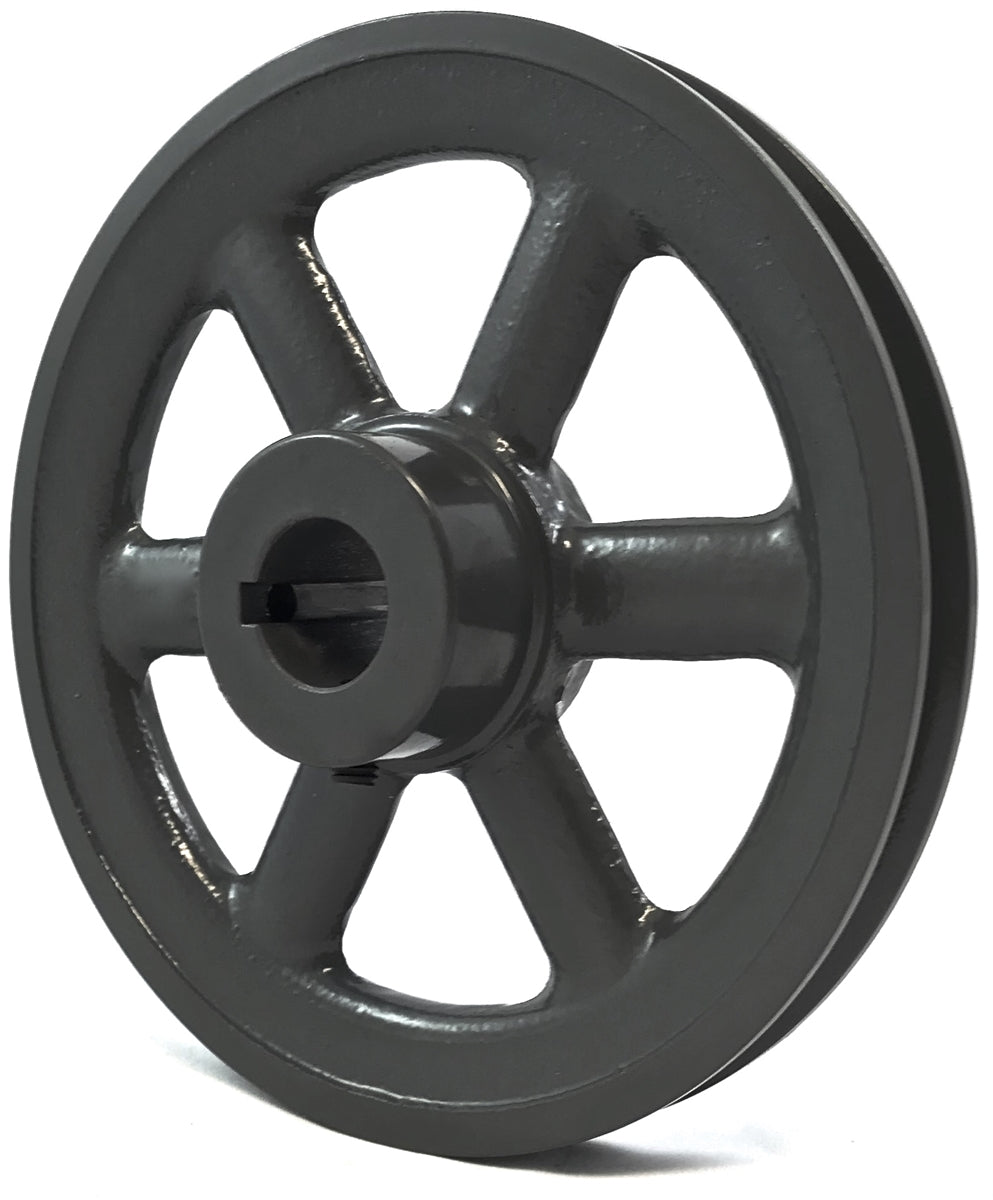

Power Drive AK54-1 Fixed Pitch Sheave

Product Description

The Power Drive AK54-1 fixed pitch sheave is suitable for A style V-belts. It has a bore size of one inch and an outer diameter of five point twenty-five inches. This sheave meets ARPM Standard IP20. It is made from grade thirty-five cast iron with a phosphate coating and painted finish.

• Designed for A style V-belts.
• One inch bore.
• Manufactured according to ARPM Standard IP20.

Product Highlights

The AK54-1 sheave is ideal for various applications requiring durable and reliable performance.

Product Information

Standard Information

• MPN: AK54-1
• Type: Fixed Pitch Sheave

Technical Specifications

• Pulley Size: AK54
• Outside Diameter (O.D.): 5.25 inches
• Pitch Diameter For 4L/A Belts (P.D.): 5.00 inches
• Pitch Diameter For 3L Belts (P.D.): 4.66 inches
• Bore Size: 1 inch
• Key-Way Size: 1/4 x 1/8 inches
• Dimension (F): 3/4 inches
• Dimension (L): 1-5/32 inches
• Dimension (P): 15/32 inches
• Dimension (C): 1/16 inches
• Weight: 1.8 lbs
• Belt Size: A, 4L
• Grooves: 1
