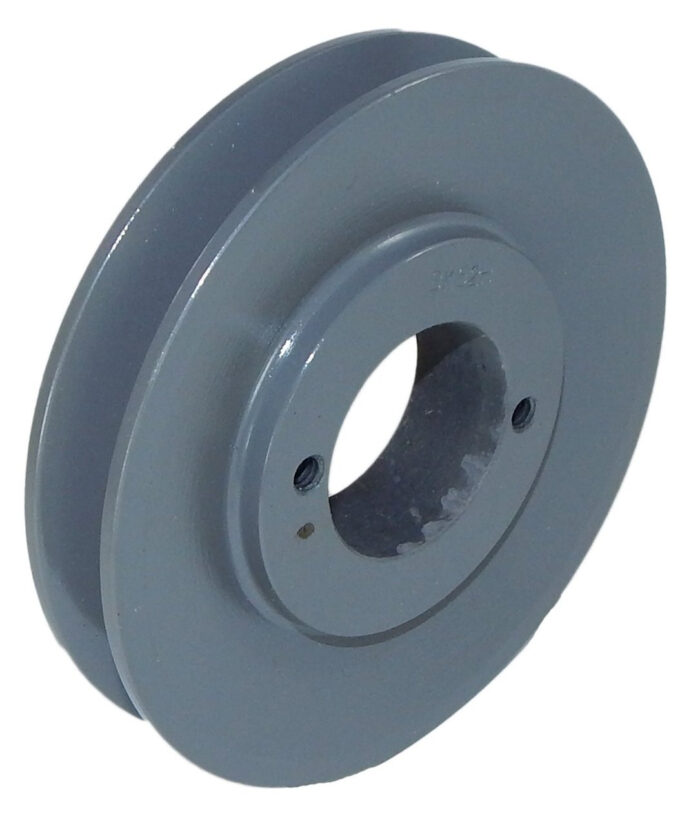

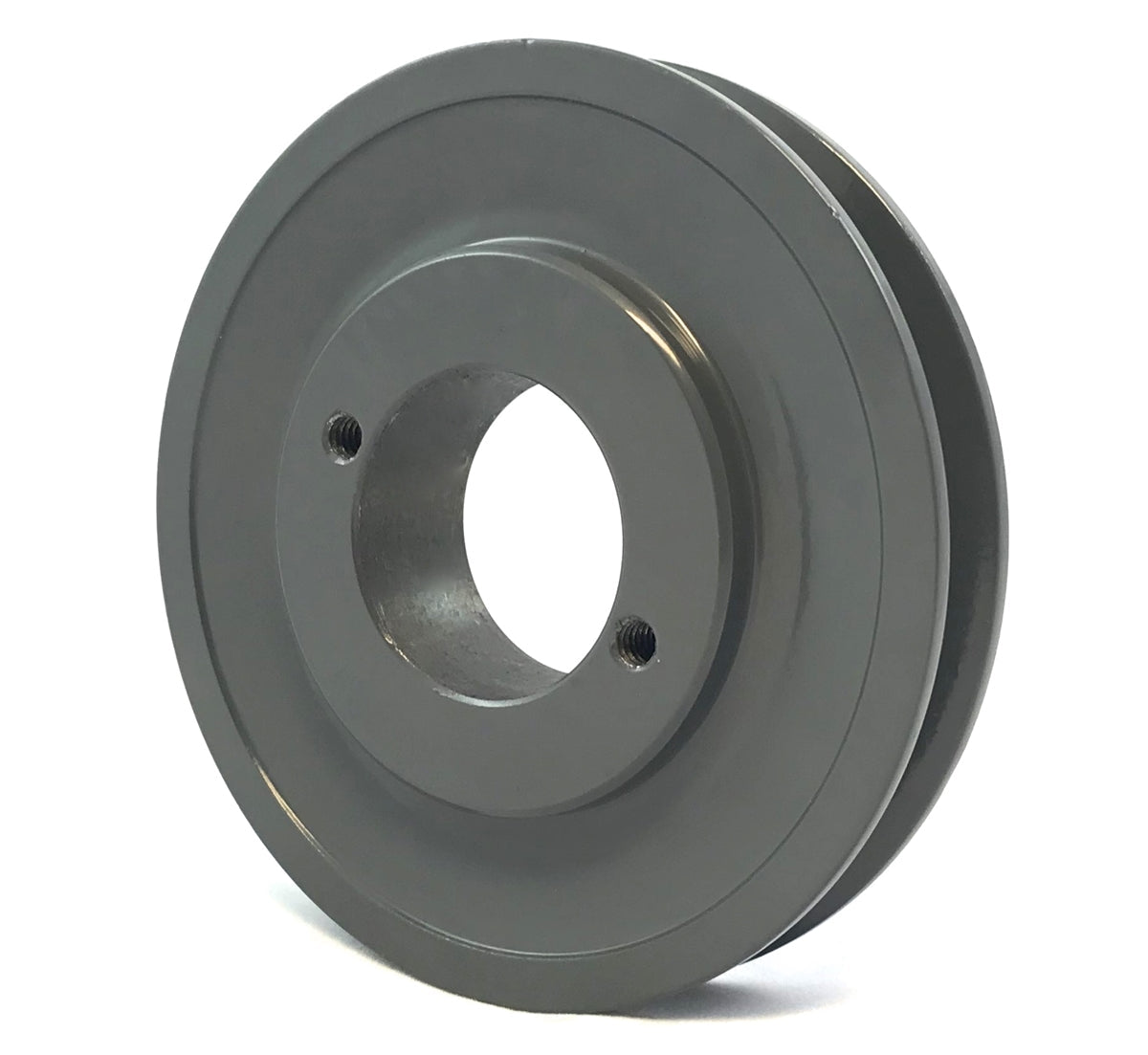

POWER DRIVE AK46H Fixed Pitch Sheave

Product Description

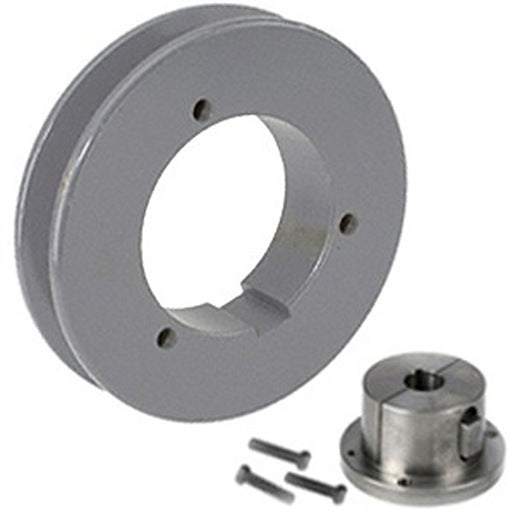

The POWER DRIVE AK46H is a fixed pitch sheave intended for use in power transmission systems. This is a single-groove pulley made of cast iron, suitable for A, 3L, and 4L belts. The product requires an H-style bushing for installation and is compatible with QTL quick detachable taper bushings.

• Single groove sheave for A, 3L, or 4L belts
• Constructed from durable cast iron
• Standard compliant with ARPM Standard IP20

Product Highlights

The AK46H is designed for optimal performance in various machinery, ensuring reliable power transmission.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: AK46H

Technical Specifications

• Type: Fixed Pitch Sheave
• Material: Cast Iron
• Number of Grooves: 1
• Compatible Belts: A, 3L, 4L
• Bushing Requirement: H Style Bushing
• Bushing Type: QTL Quick Detachable Taper Bushings
• Outside Diameter: 4.45 inches
• Pitch Diameter Maximum: 4.2 inches
• Pitch Diameter Minimum: 3.86 inches
• Bushing Bore Range: 3/8 to 1-1/2 inches
• Keyway: Yes
• Pulley Size: AK46H
• Pulley Type: 2
• Weight: 0.5 lbs
