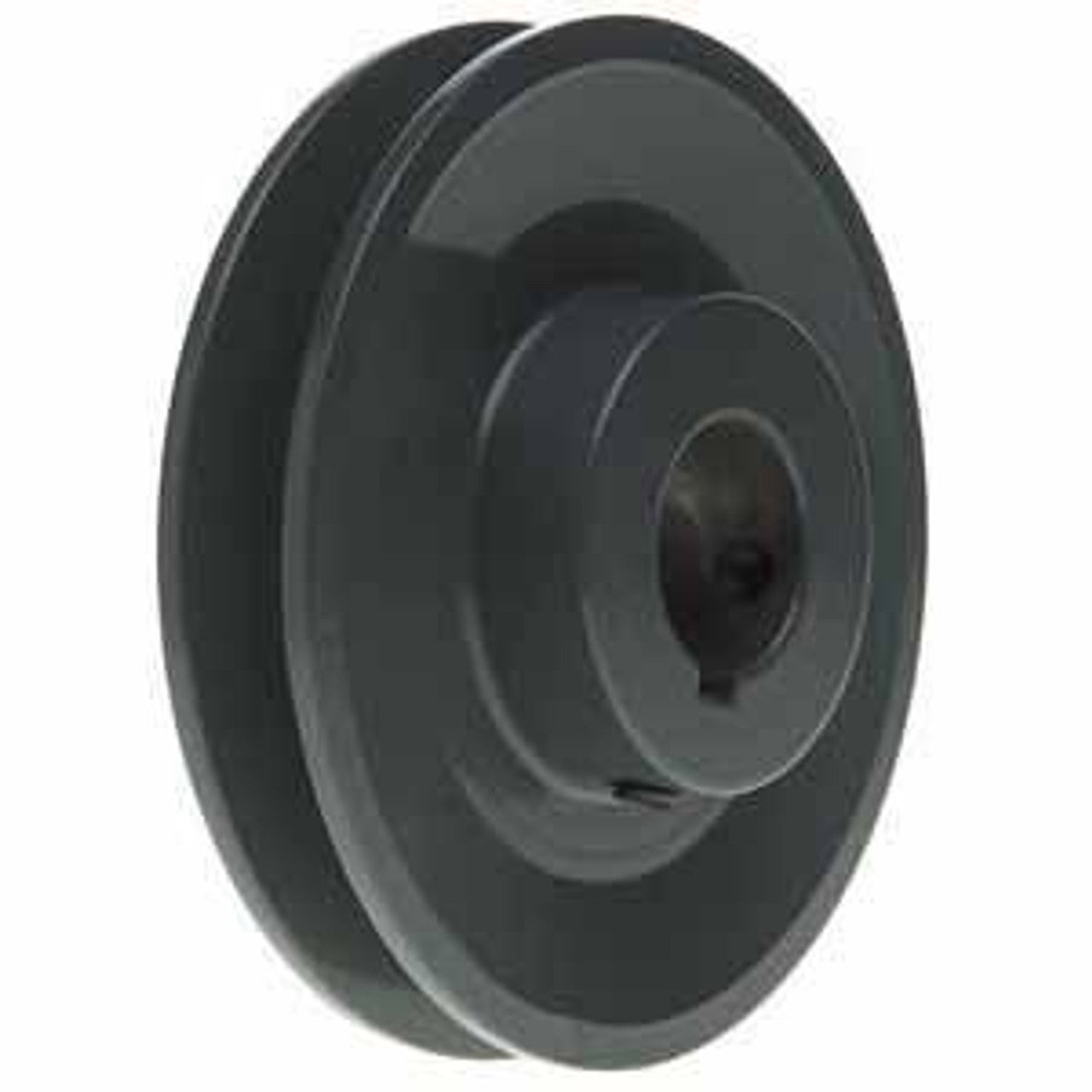

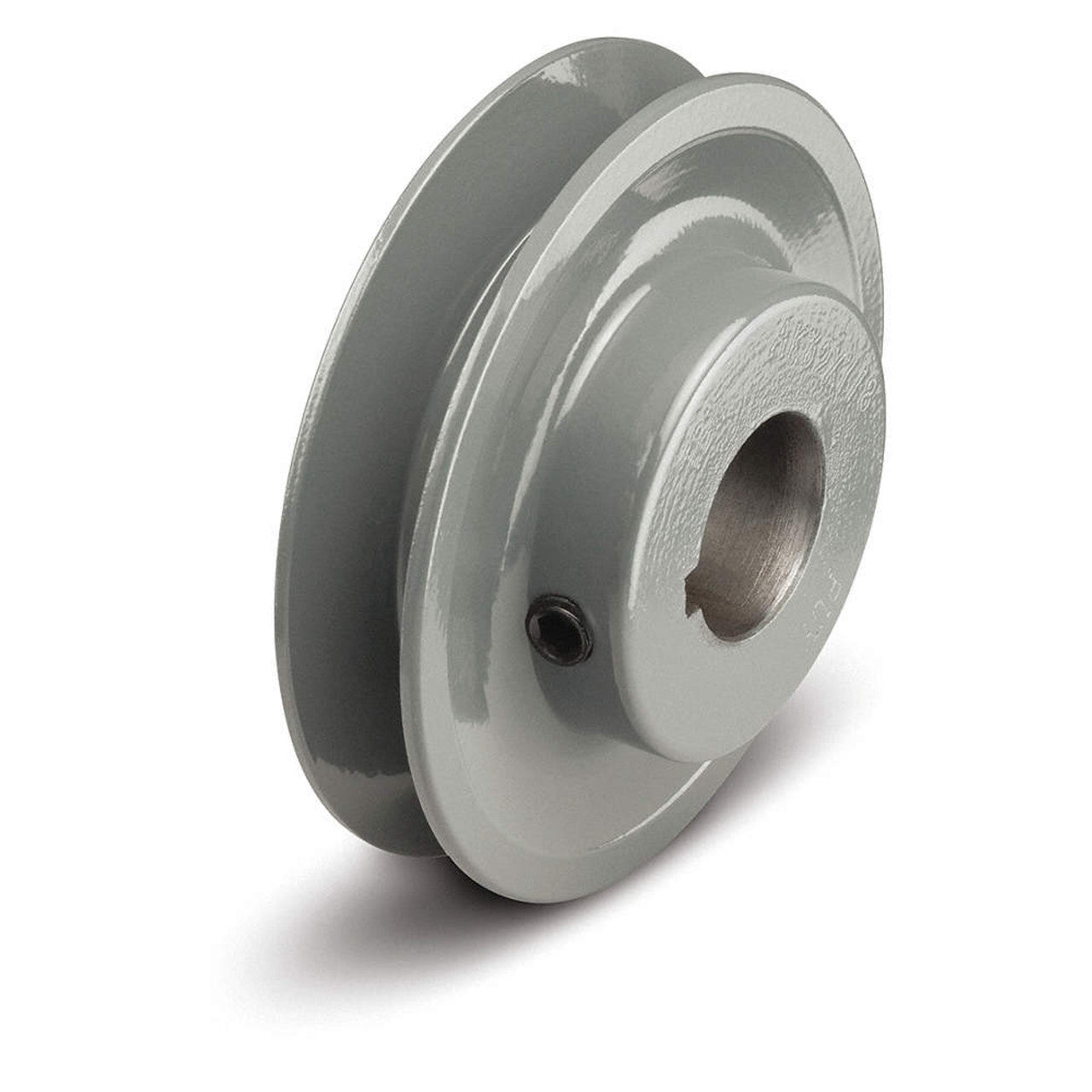

Power Drive AK44-5/8 Fixed Pitch Sheave

Product Description

The Power Drive AK44-5/8 is a fixed pitch sheave designed for power transmission applications. This sheave has a five-eighths inch bore and an outside diameter of four point two five inches. It features a single groove and works with A, 4L, and 3L belt series. A keyway is included for secure mounting.

• Fixed pitch sheave design
• Includes a five-eighths inch bore
• Compatible with A, 4L, and 3L belt series

Product Highlights

This sheave is essential in various mechanical setups where power transmission is required.

Product Information

Standard Information

• MPN: AK44-5/8
• Type: Fixed Pitch Sheave

Technical Specifications

• Number of Grooves: 1
• Outside Diameter: 4.25 inches | 107.95 millimeters
• Bore Size: 0.625 inches | 15.875 millimeters
• Belt Series: 3L | 4L | A
• Pitch Diameter Minimum: 3.66 inches | 92.964 millimeters
• Pitch Diameter Maximum: 4 inches | 101.6 millimeters
• Belt Width Minimum: 0.375 inches | 9.525 millimeters
• Belt Width Maximum: 0.5 inches | 12.7 millimeters
• Keyway: Yes
• Mounting Method: Finished Bore
• Material: Cast Iron
