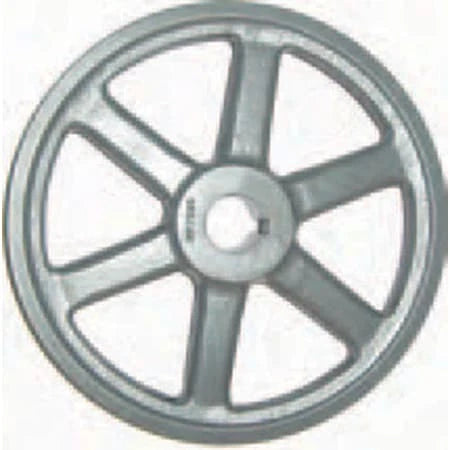

POWER DRIVE AK39-3/4 V-Belt Pulley

Product Description

The POWER DRIVE AK39-3/4 is a fixed pitch sheave used in power transmission applications. Constructed from cast iron, this pulley is suitable for a range of belts including 3L, 4L, and A series. It has a three-quarters inch bore and a single groove design. The pulley features a keyway for secure attachment to the shaft, ensuring efficient power transfer in machinery.

• Use with 3L, 4L, and A belt series
• Features a three-quarters inch bore and single groove
• Includes a keyway for secure mounting

Product Highlights

Engineered for durability and efficiency in power transfer applications.

Product Information

Standard Information

• Manufacturer Part Number: AK39-3/4
• Material: Cast Iron

Technical Specifications

• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 3L | 4L | A
• Keyway: Yes
• Outside Diameter: 3.75 inches
• Pitch Diameter Minimum: 3.16 inches
• Pitch Diameter Maximum: 3.5 inches
• Bore: 0.75 inches
• Mounting: Shaft
• Type: Fixed Pitch Sheave
