Power Drive AK30H V-Belt Sheave H Bushing

Product Description

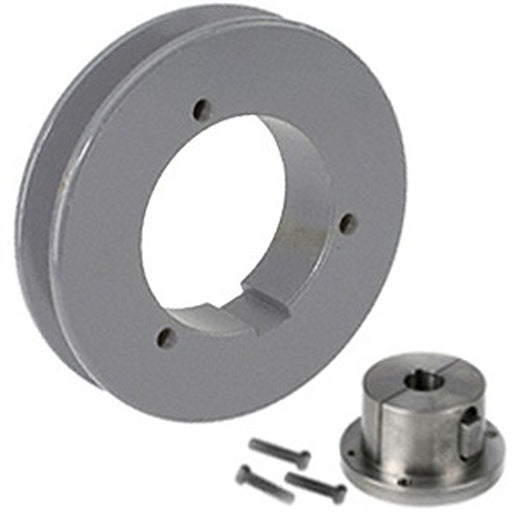

The Power Drive AK30H is a V-belt sheave made from cast iron, specifically designed for reliable power transmission. This single-groove sheave has an outside diameter of three point zero five inches, compatible with H bushings, making it a suitable choice for various applications. It works well with the 3L, 4L, and A belt series and features a keyway design. The AK30H is built to offer durability and efficiency in mechanical systems.

• Designed for use with H bushings
• Works with 3L, 4L, and A belt series
• Keyway design included

Product Highlights

The Power Drive AK30H not only supports different belt series but also ensures stable performance in various conditions.

Product Information

Standard Information

• Brand: Power Drive
• MPN: AK30H

Technical Specifications

• Grooves: 1
• Material: Cast Iron
• Outside Diameter: 3.05 inches
• Pitch Diameter Minimum: 2.46 inches
• Pitch Diameter Maximum: 2.8 inches
• Mounting Method: Bushed
• Bushing Size: H
• Belt Series: 3L, 4L, A
• Bushing Bore Range: 3/8 to 1-1/2 inches
• Keyway: Yes
• Belt Width Minimum: 0.375 inches
• Belt Width Maximum: 0.5 inches
