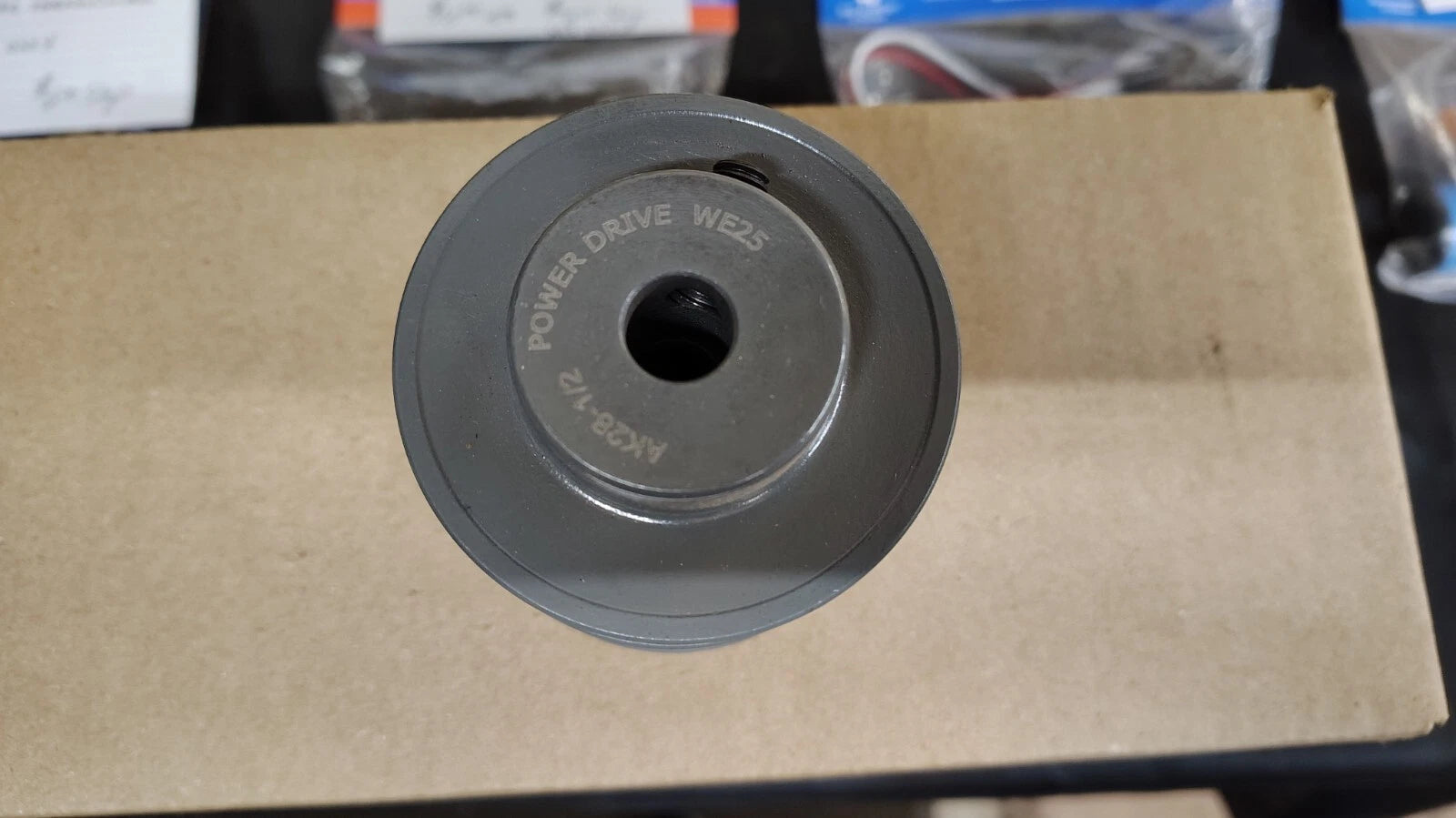

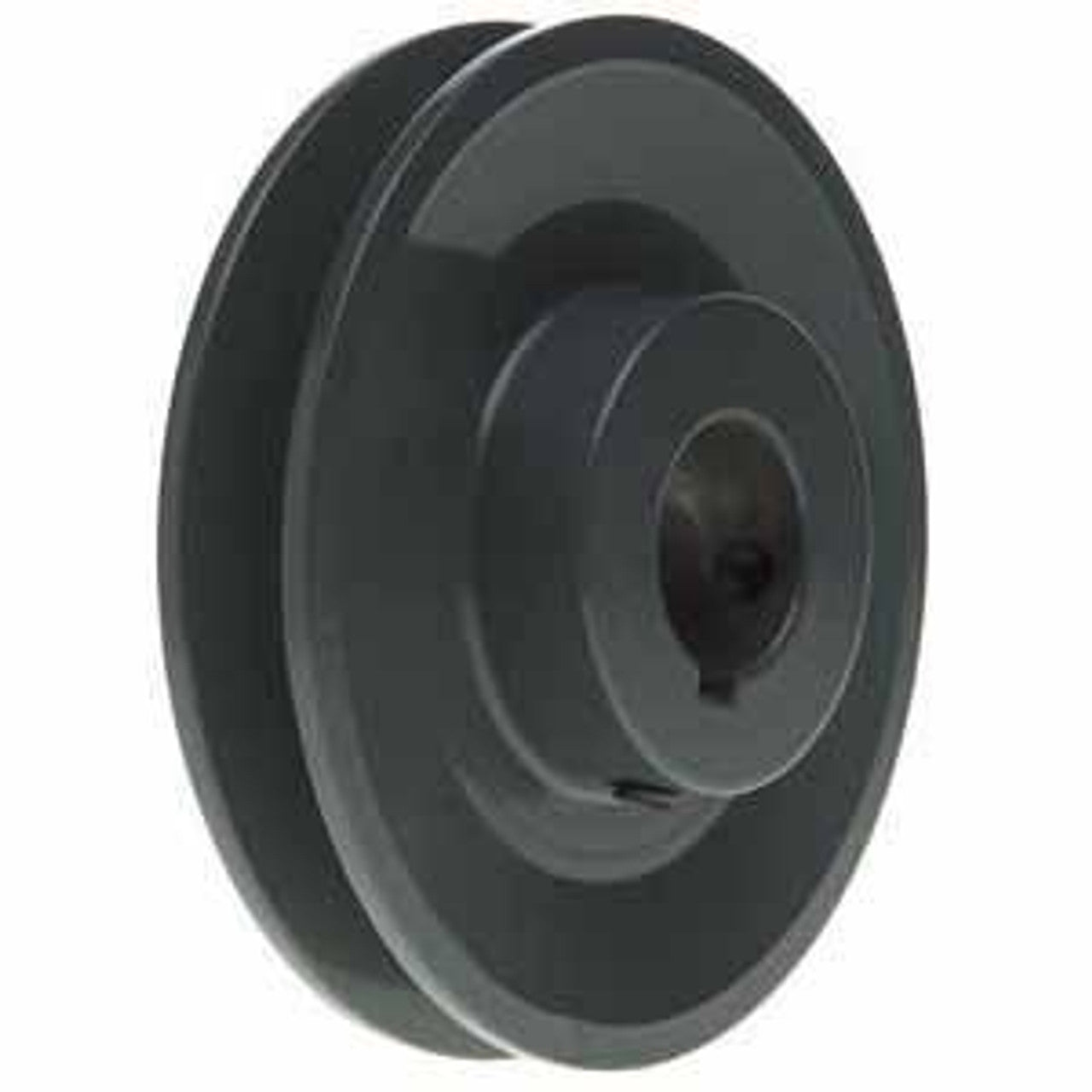

POWER DRIVE AK28-1/2 Pulley

Product Description

The POWER DRIVE AK28-1/2 is a fixed bore pulley used in power transmission applications. This pulley features a single groove compatible with 3L, 4L, or A belt series. Made from cast iron, it has a finished bore and does not include a keyway.

• Single groove for 3L, 4L, or A belts
• Fixed bore design
• Manufactured from durable cast iron

Product Highlights

This pulley is ideal for various industrial settings where reliable belt operation is essential.

Product Information

Standard Information

• Manufacturer Part Number: AK28-1/2
• Bore Size: 0.5 Inch | 12.7 Millimeter

Technical Specifications

• Outside Diameter: 2.8 Inch | 71.12 Millimeter
• Number of Grooves: 1
• Mounting Method: Finished Bore
• Belt Series: 3L | 4L | A
• Keyway: No
• Category: Sheave - Fixed Pitch
• Noun: Pulley
• Pitch Diameter Minimum: 2.26 Inch | 57.404 Millimeter
• Pitch Diameter Maximum: 2.6 Inch | 66.04 Millimeter
• Belt Width Maximum: 0.5 Inch | 12.7 Millimeter
• Belt Width Minimum: 0.375 Inch | 9.525 Millimeter
• Material: Cast Iron
• Weight: 3.00 lbs
