Power Drive AK26-5/8 V-Belt Pulley

Product Description

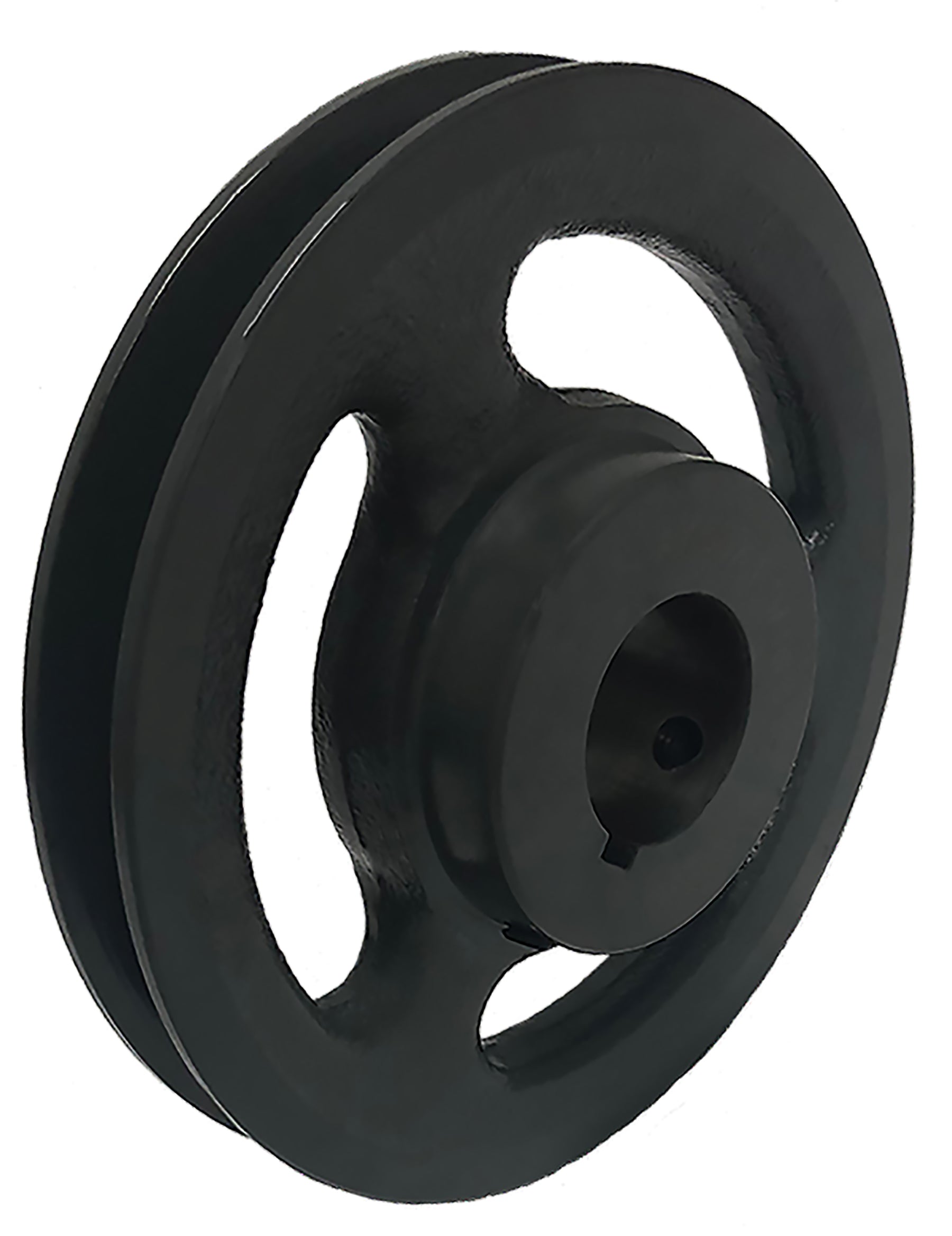

The Power Drive AK26-5/8 is a V-belt pulley suitable for power transmission in various machinery. Made from durable cast iron, this pulley includes a finished bore of five eighths inches. It accommodates belt types 4L, 3L, or A and features a single groove. The pulley has one set screw for securing it to a shaft.

• Constructed from cast iron
• Features a 5/8-inch finished bore
• Designed for use with 4L, 3L, or A belts

Product Highlights

This pulley provides essential performance for efficient power transfer in machinery applications.

Product Information

Standard Information

• Brand: Power Drive
• MPN: AK26-5/8

Technical Specifications

• Bore Type: Finished Bore
• Material: Cast Iron
• Grooves: 1
• For Belt Type: 4L, 3L, or A
• Bore Size: 0.625 inches
• Outside Diameter: 2.600 inches
• Face Width: 0.656 inches
• Overall Length: 1.094 inches
• Hub Diameter: 1.560 inches
• Min. Bore: 0.5 inches
• Weight: 0.80 lbs
• Set Screw Quantity: 1
• Pitch Diameter A: 2.400 inches
• Pitch Diameter 3L: 2.060 inches
