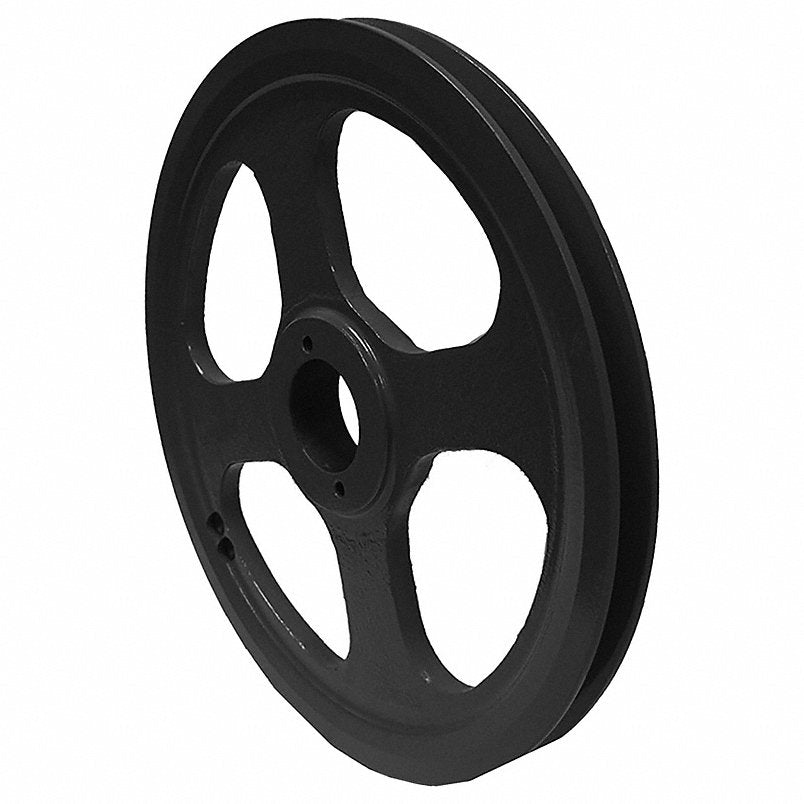

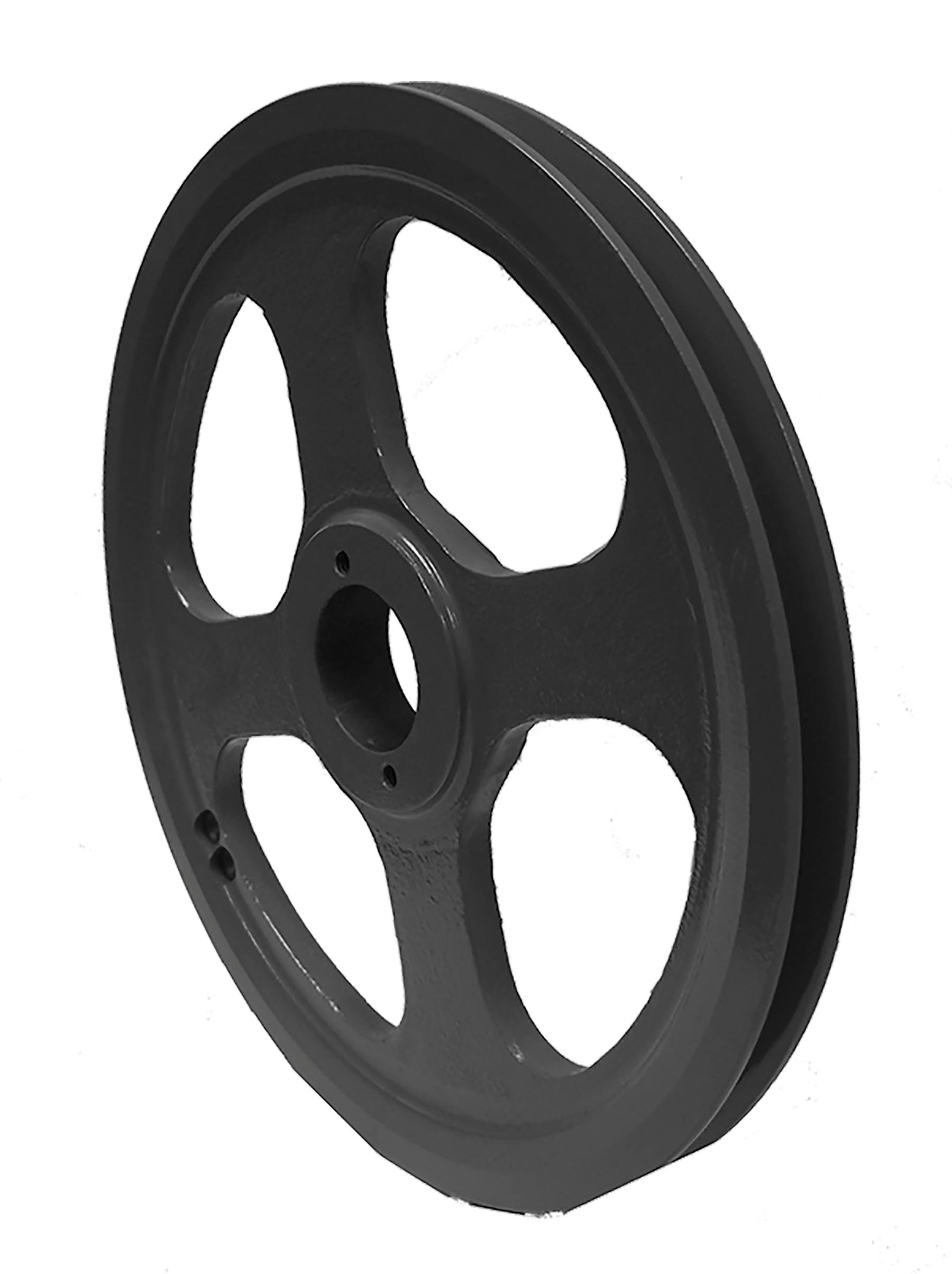

POWER DRIVE AK124H Fixed Pitch Sheave

Product Description

The POWER DRIVE AK124H is a fixed pitch sheave made for A, 3L, or 4L belts. This single-groove pulley is constructed from durable cast iron. It includes a quick detachable taper bushing for easy and secure installation. The sheave is statically balanced to reduce vibration, ensuring smooth operation.

• Single groove cast iron design
• Compatible with A, 3L, and 4L belts
• Accepts H style bushing

Product Highlights

This sheave is built to provide reliable performance in various applications, especially where belt drive systems are used. It is suitable for use in HVAC systems, conveyor systems, and general machinery.

Product Information

Standard Information

• Manufacturer Part Number: AK124H
• Sheave Type: AK

Technical Specifications

• Number of Grooves: 1
• Material: Cast Iron
• Outside Diameter: 12.250 inches
• Pitch Diameter A: 12.000 inches
• Pitch Diameter 3L: 11.660 inches
• Face Width: 0.750 inches
• Overall Length: 1.500 inches
• Minimum Bore: 0.375 inches
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Bushing Size: H
• Belt Size: A, 4L, 3L
• Weight: 6.10 lb
