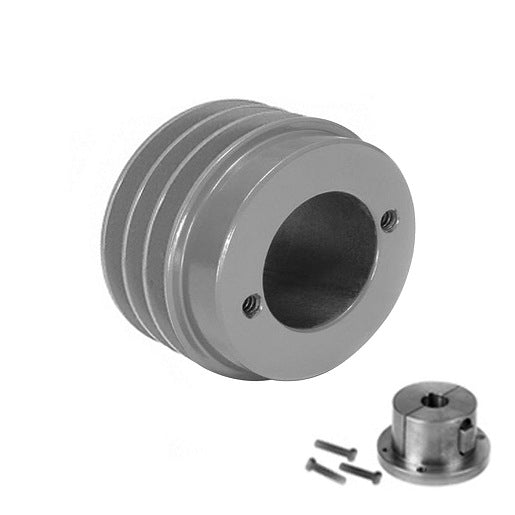

POWER DRIVE 3BK70H Fixed Pitch Sheave

Product Description

The POWER DRIVE 3BK70H Fixed Pitch Sheave is ideal for power transmission tasks. This sheave supports 4L, 5L, A, and B belts. It features a fixed pitch design and is built for durability with a protective grey painted finish.

• Accommodates multiple belt sizes including 4L, 5L, A, and B.
• Designed for heavy-duty applications.
• Durable construction with a protective coating.

Product Highlights

This sheave is essential for effective power transmission, ensuring reliable operation and compatibility with various belts.

Product Information

Standard Information

• Brand: POWER DRIVE
• Manufacturer Part Number: 3BK70H

Technical Specifications

• Sheave Type: Fixed Pitch Sheave
• Belt Size: 4L, 5L, A, B
• Outside Diameter: 6.75 inches
• Pitch Diameter for 4L or A Belt: 6.00 inches
• Pitch Diameter for 5L or B Belt: 6.40 inches
• Number of Grooves: 3
• Sheave Construction: Web
• Bore Type: TB Bushed
• Bushing Size: 3020
• Bushing Type: TB
• Finish/Coating: Grey Painted Protective Coating
• k in: 0.5 inches
• Length Through Bore: 2.00 inches
• Series: 5V Taper Sheaves
• F Dimension: 2.5 inches
• X Dimension: 0.875 inches
• C Dimension: 0.281 inches
