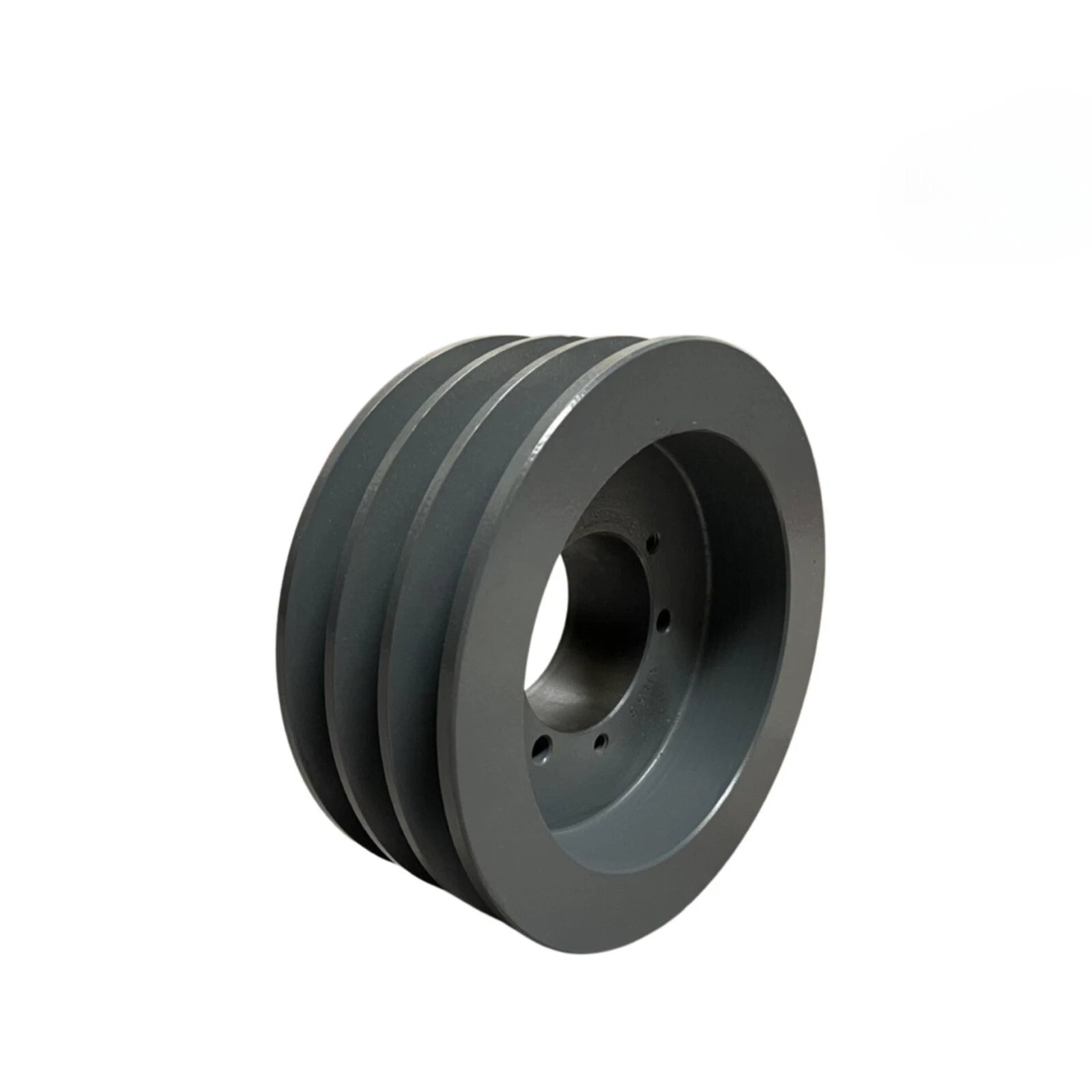

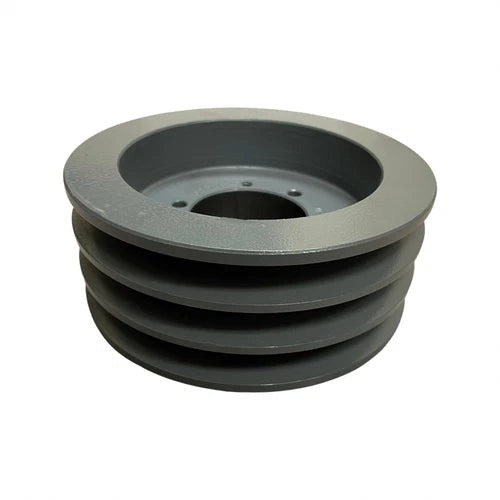

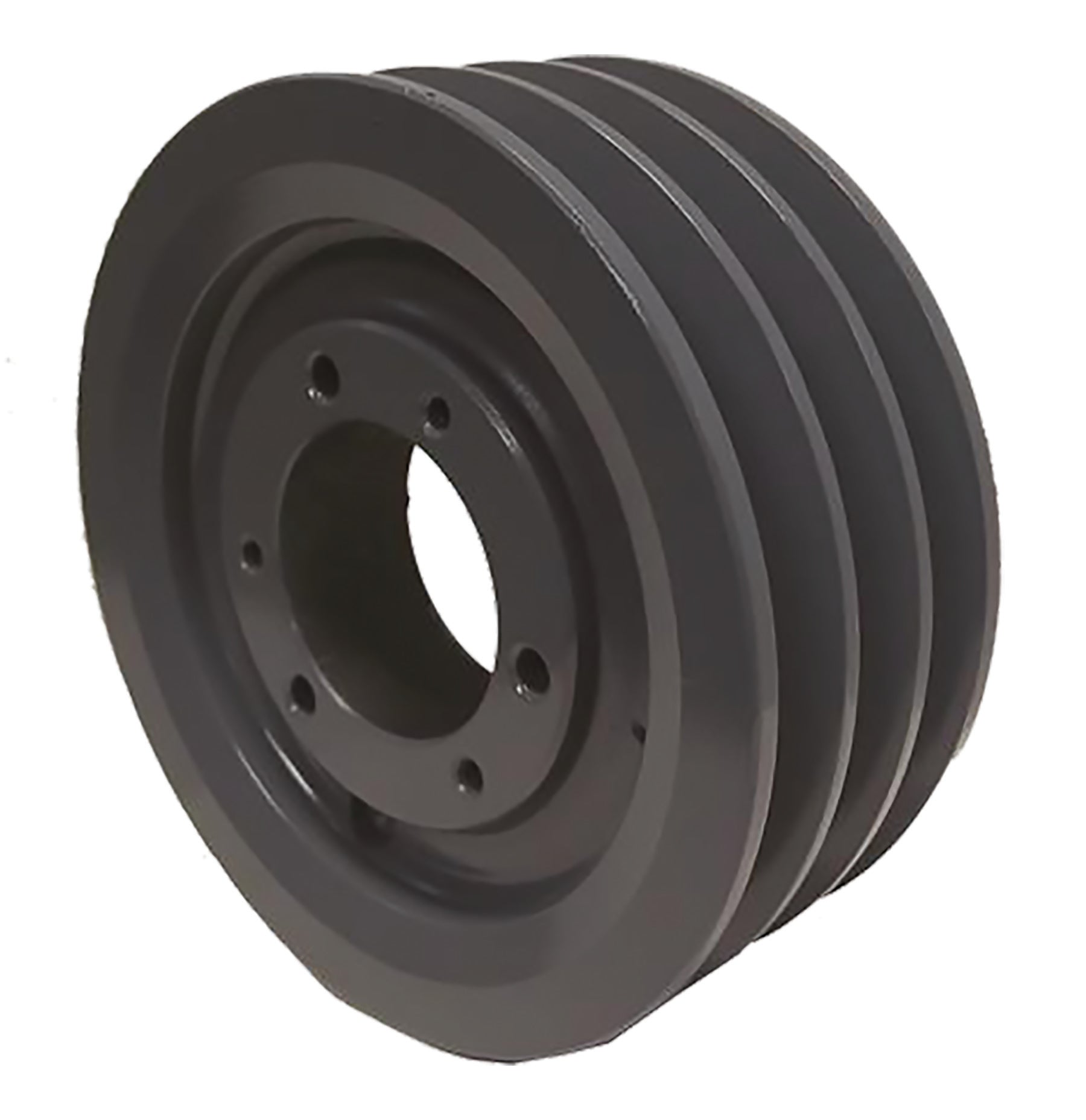

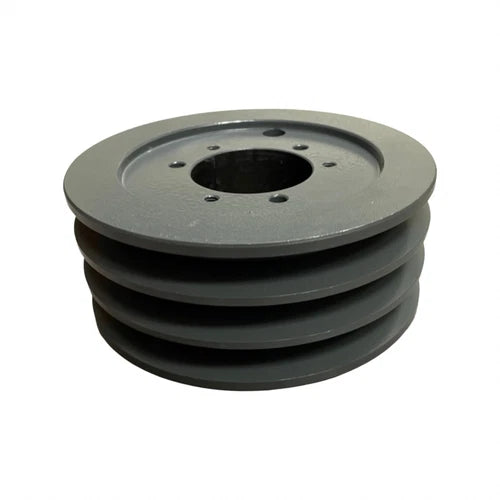

POWER DRIVE 3B80SK Fixed Pitch Sheave

Product Description

The POWER DRIVE 3B80SK Fixed Pitch Sheave is tailored for power transmission tasks. It is made from cast iron and features a Quick Detachable (QD) bushing. This sheave is compatible with A or B belts, offering a versatile A-B combination sheave type with three grooves.

• Bore Type: Bored for SK Bushing
• Sheave Type: A-B Combination
• Compatible Belt Type: A or B

Product Highlights

This sheave is suited for various applications in power transmission, making it a reliable choice in different mechanical setups.

Product Information

Standard Information

• Material: Cast Iron
• Weight: 12.50 lb

Technical Specifications

• MPN: 3B80SK
• Type: Fixed Pitch Sheave
• Model: 3B80SK
• Cross Reference: 3B80
• Bore Type: QD
• Bore Description: Bored for SK Bushing
• Outside Diameter: 8.350 inches
• Face Width: 2.500 inches
• Minimum Bore: 0.5 inches
• Unit System: Inch
• Bushing: SK
• Pitch Diameter A: 7.600 inches
• Pitch Diameter B: 8.000 inches
• Grooves: 3
