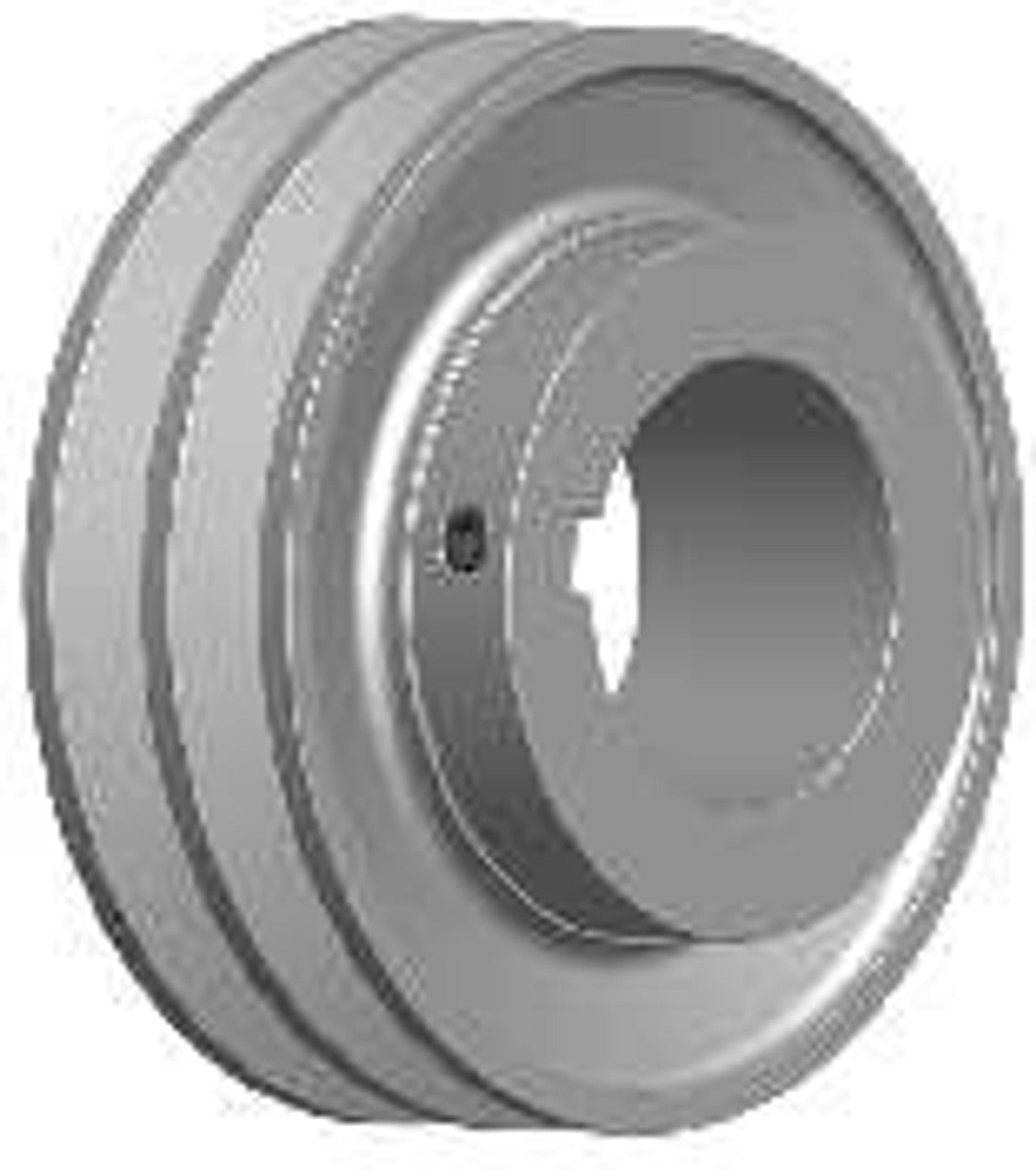

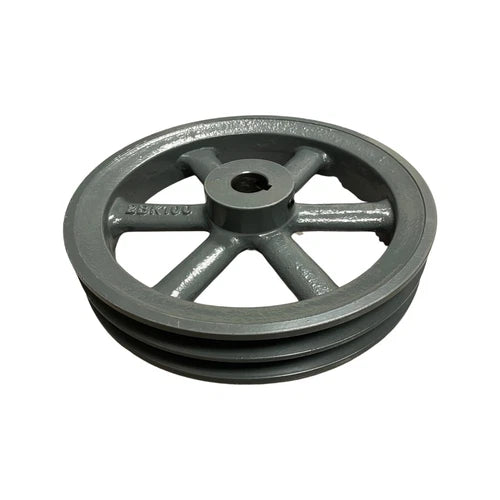

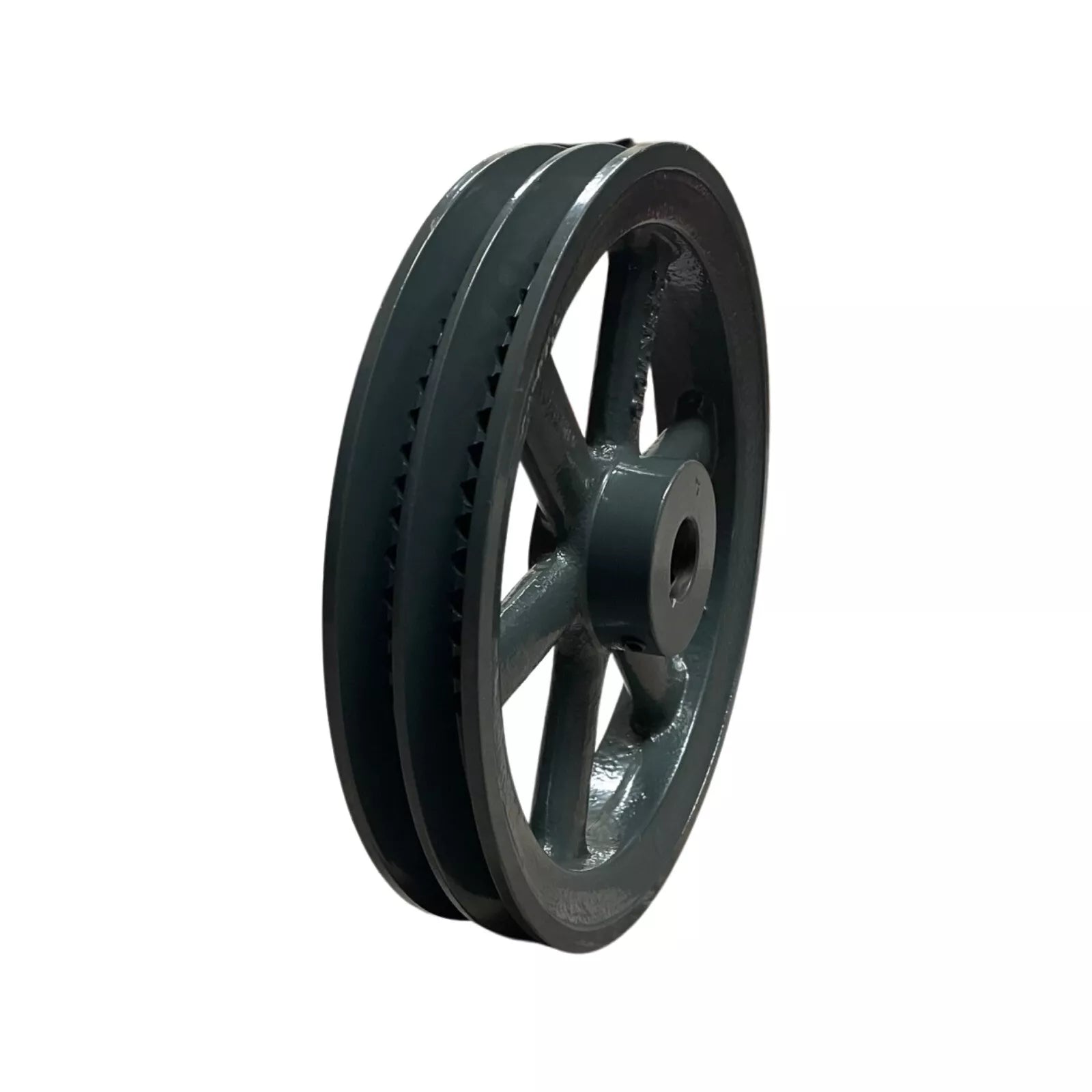

POWER DRIVE 2BK80-1-1/8 Fixed Pitch Sheave

Product Description

The POWER DRIVE 2BK80-1-1/8 Fixed Pitch Sheave is a reliable component for power transmission applications. This sheave is made from cast iron, designed to handle both A(4L) and B(5L) section V-belts effectively. It features a bore size of one and one-eighth inches and an outside diameter of seven point seventy-five inches. It is compatible with QD bushings.

• Double groove sheave.
• Compatible with A(4L) and B(5L) section V-belts.
• Bore size of one and one-eighth inches.

Product Highlights

This sheave is essential for efficient belt drive systems and ensures smooth operation in various power transmission setups.

Product Information

Standard Information

• Brand: Powerdrive
• MPN: 2BK80-1-1/8

Technical Specifications

• Type: Fixed Pitch Sheave
• Model: 2BK80-1-1/8
• Groove Configuration: Double Groove A/B Section
• Material: Cast Iron
• Compatible V-Belts: A(4L) & B(5L)
• Bore Size: 1-1/8 Inches
• Outside Diameter: 7.75 Inches
• Weight: 9.000 lb
• Sheave/Pulley Type: C-3
• Sheave Construction: Spoked
• Series: 5V QD Sheaves
• Bore Type: QD Bushed
• Bushing Type: QD
• Bushing Size: E
• Length Through Bore: 2.75 in
• Finish/Coating: Grey Painted Protective Coating
• Belt Width: 5/8
