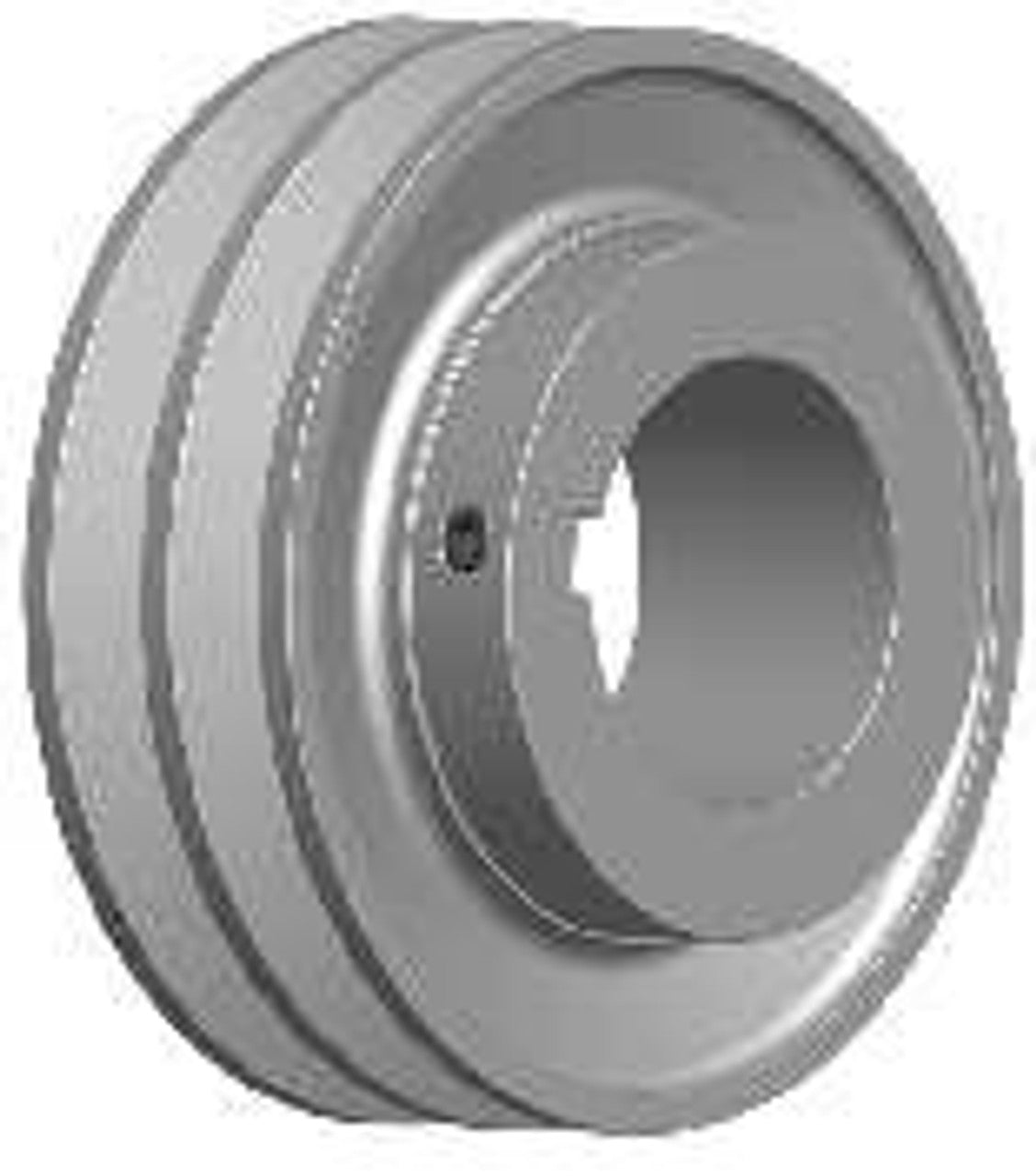

POWER DRIVE 2BK65H V-Belt Pulley

Product Description

The POWER DRIVE 2BK65H V-Belt Pulley is designed for effective power transmission. This fixed pitch sheave is made from strong cast iron. It features two grooves and is compatible with multiple belt types including 4L, 5L, A, and B. Installation requires a bushing, making it an efficient choice for various applications. The outer diameter measures six point two five inches.

• Sheave type: Fixed Pitch
• Requires H or L style bushing
• Compatible with 4L, 5L, A, and B V-Belts

Product Highlights

This pulley ensures reliable performance in power transmission situations while being compatible with common belt types.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: 2BK65H

Technical Specifications

• Sheave Type: Fixed Pitch
• Number of Grooves: 2
• Outside Diameter: 6.25 Inches
• Material: Cast Iron
• Belt Compatibility: 4L, 5L, A, B
• Bore Type: Requires Bushing
• Bushing Type: H
• Face Width: 1.750 Inches
• Overall Length: 1.750 Inches
• Minimum Bore: 0.375 Inches
• Weight: 4.50 lb
