POWER DRIVE 2BK62H Fixed Pitch Sheave

Product Description

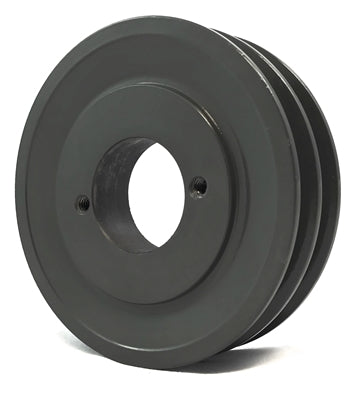

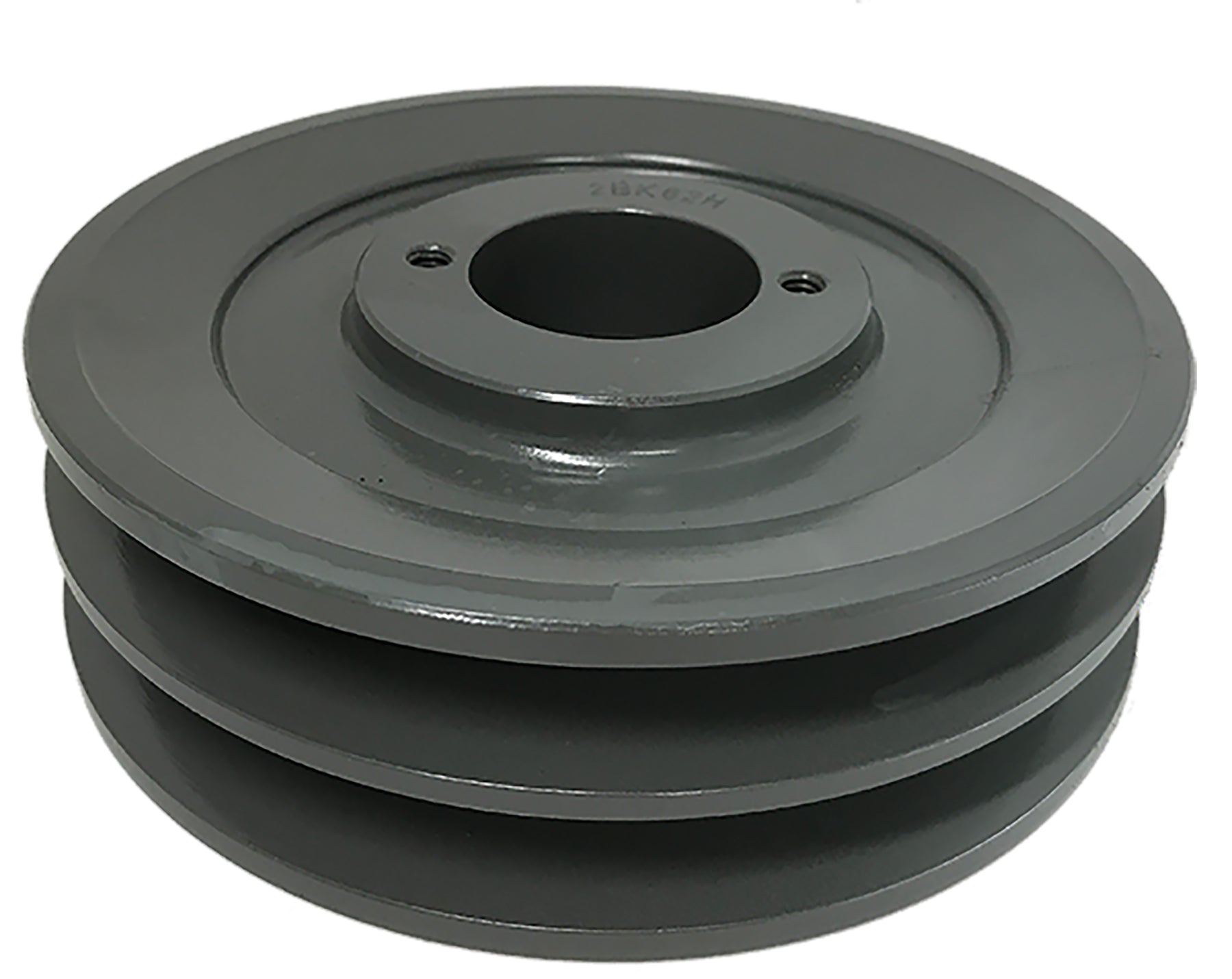

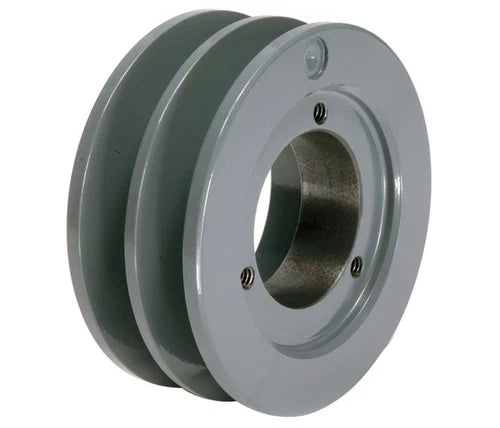

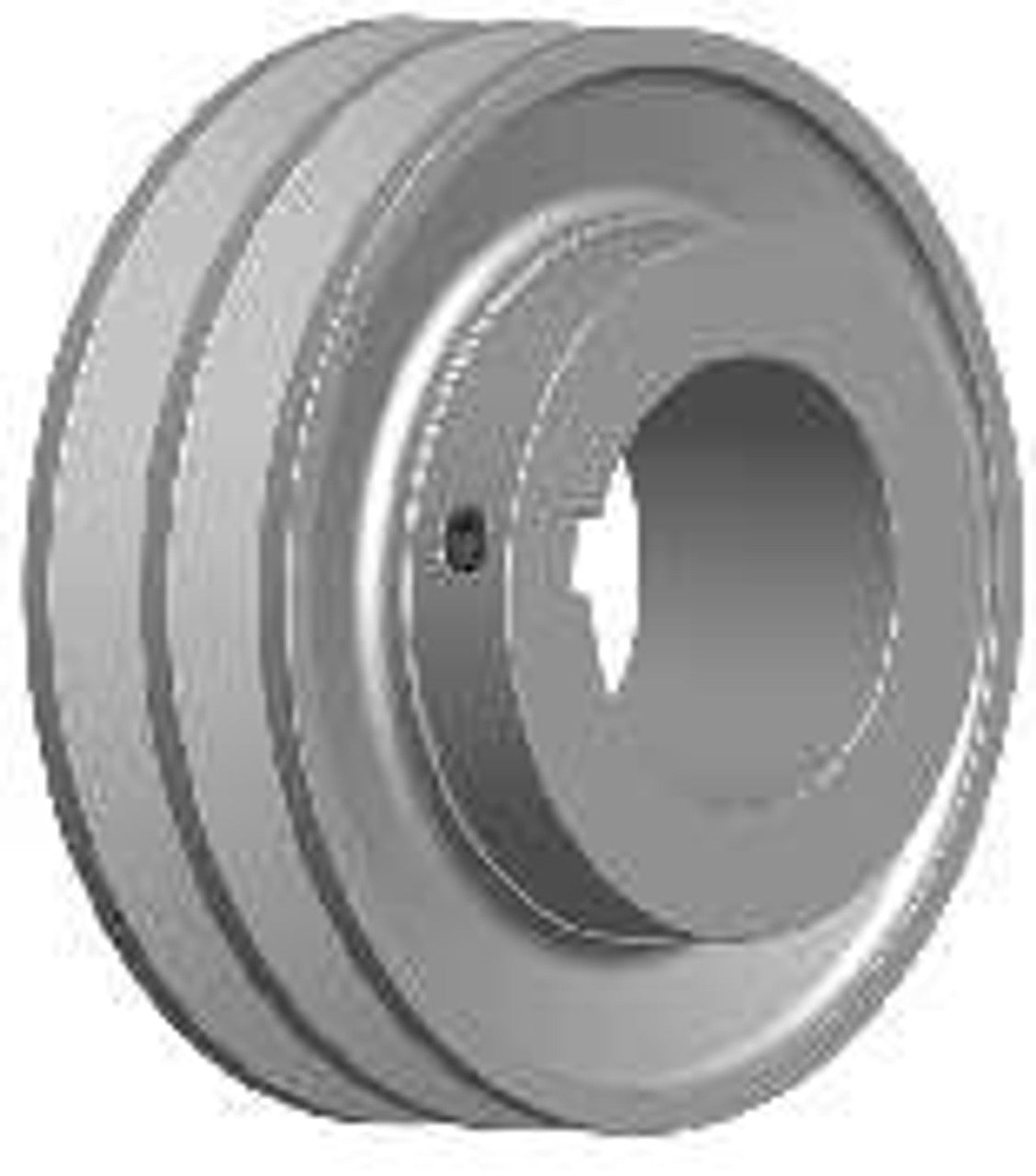

The POWER DRIVE 2BK62H is a fixed pitch sheave designed to work with A (4L) and B (5L) V-belts. This sheave has a double groove and requires an H style bushing for mounting. Made from cast iron, it meets ARPM Standard IP20 and is dynamically balanced to ensure performance. A coating is applied for corrosion resistance.

• Fixed pitch with double groove.
• Compatible with A (4L) and B (5L) V-belts.
• Requires H style bushing for installation.

Product Highlights

The POWER DRIVE 2BK62H sheave is suitable for various applications like conveyors and machinery drives where reliable power transmission is necessary.

Product Information

Standard Information

• Brand: PowerDrive
• MPN: 2BK62H

Technical Specifications

• Model: Sheave - Fixed Pitch
• Weight: 4.5 lbs
• Country/Region of Manufacture: China
• Outside Diameter: 5.95 inches
• Pitch Diameter For 4L/A Belts: 5.20 inches
• Pitch Diameter For 5L/B Belts: 5.60 inches
• Grooves: 2
• Face Width: 1.750 inches
• Overall Length: 1.750 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Bushing: H
• For Belt Type: 4L, 5L, A, or B
• Material: Cast Iron
• Bore Type: QD
