POWER DRIVE 2BK60H V-Belt Pulley

Product Description

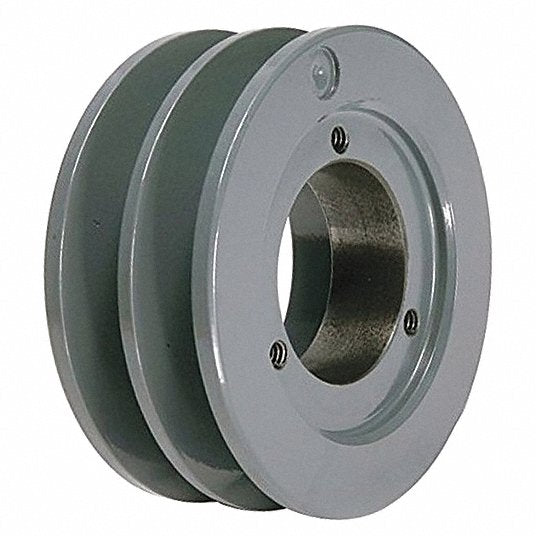

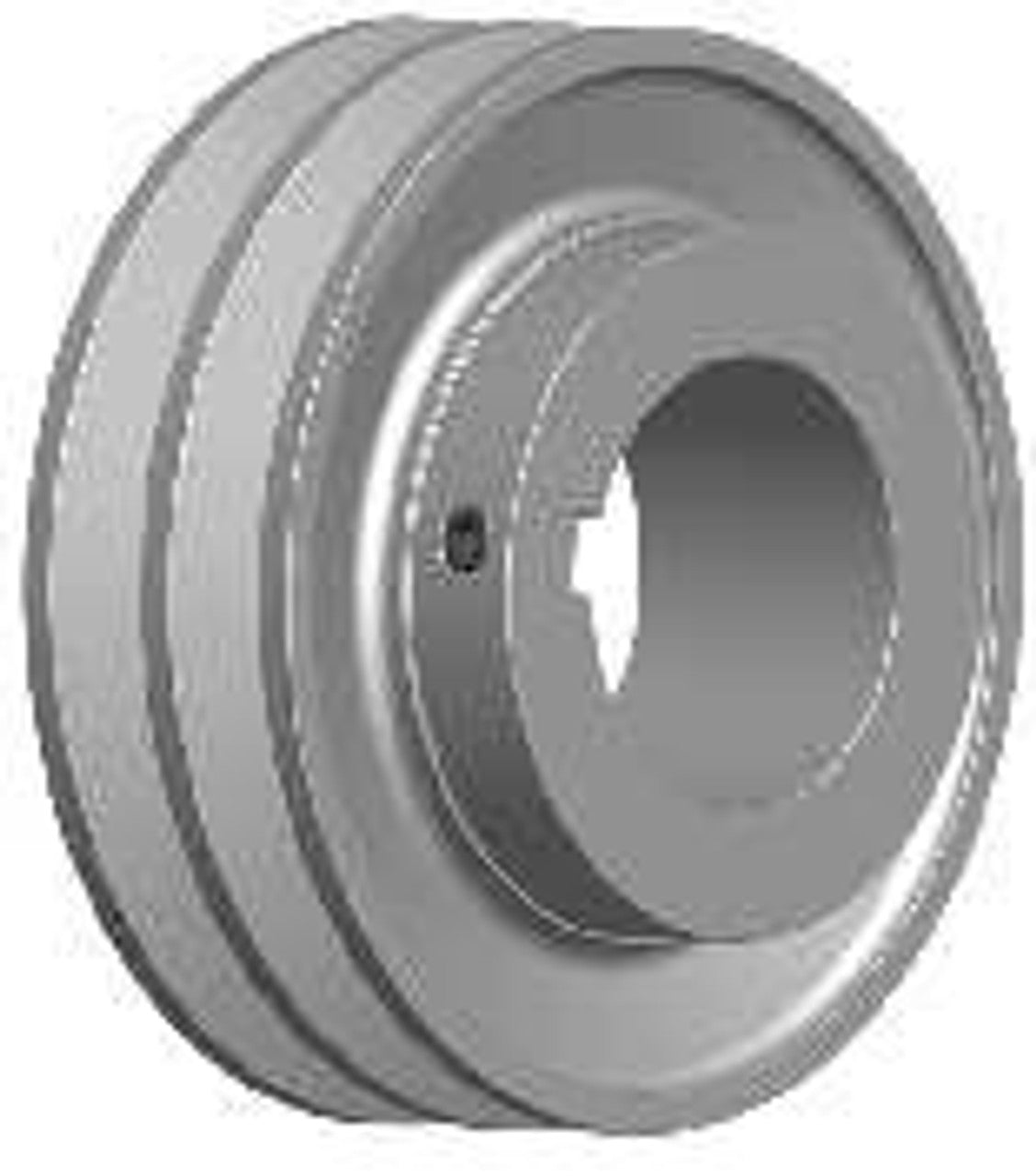

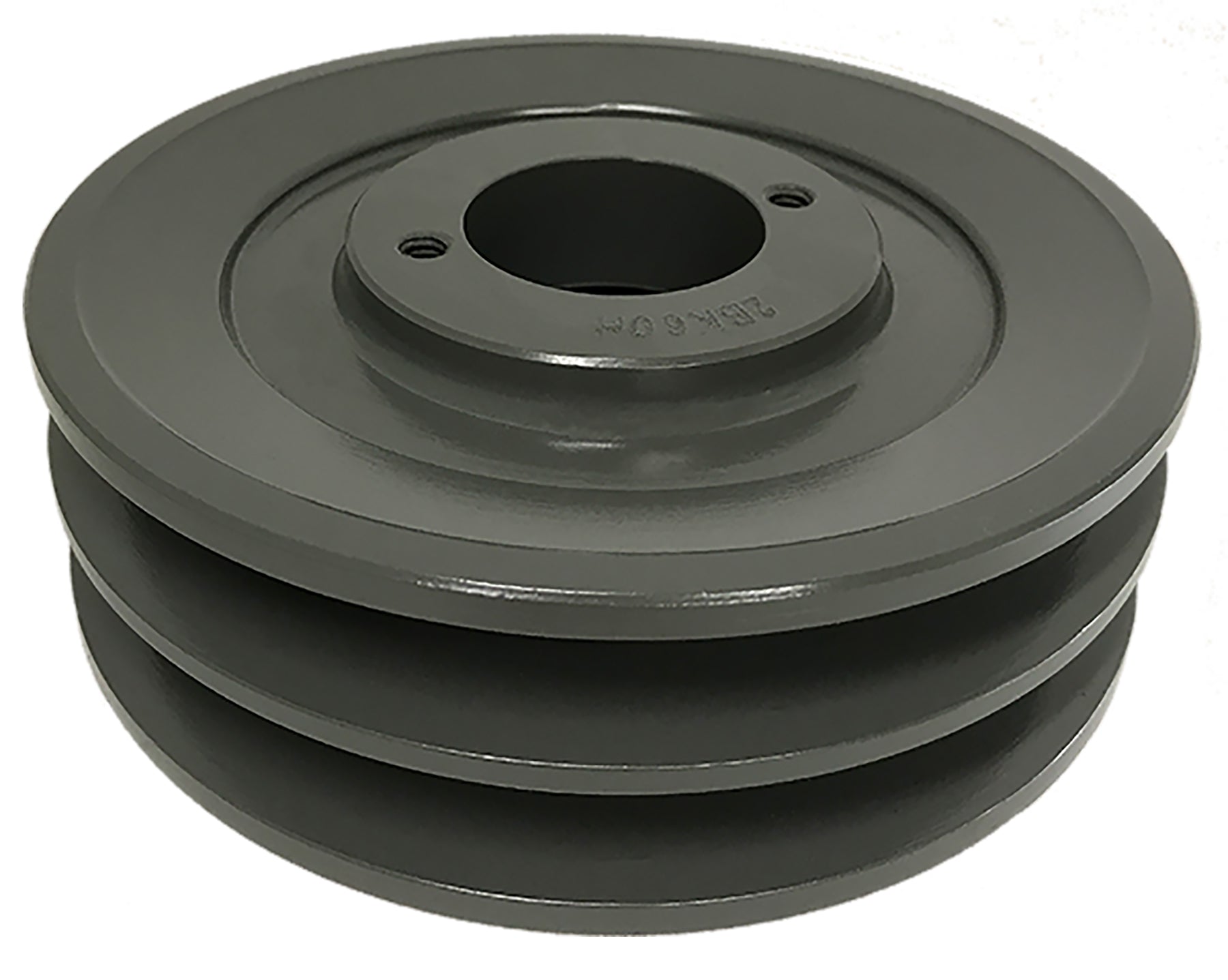

The POWER DRIVE 2BK60H is a V-belt pulley made from cast iron. It features two grooves designed for use with A(4L) and B(5L) V-belts. The pulley has a BK sheave type and is bored for an H bushing. The outside diameter is five point seventy-five inches, making it suitable for various applications where power transmission is required.

• Double groove design for A/B section belts.
• Constructed from durable cast iron.
• Requires an H-style bushing for installation.

Product Highlights

This V-belt pulley is ideal for reliable power transmission in machinery and equipment.

Product Information

Standard Information

• Manufacturer Part Number: 2BK60H
• Material: Cast Iron

Technical Specifications

• Groove Type: A/B
• Outside Diameter: 5.75 Inches
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width (in): 1.750
• Overall Length (in): 1.750
• Min. Bore (in): 0.375
• Unit System: Inch
• Bushing: H
• Pitch Dia. A: 5.000
• Pitch Dia. B: 5.400
• Sheave Type: BK
• For Belt Type: 4L, 5L, A, or B
• Weight (lb): 4.40
• Grooves: 2
