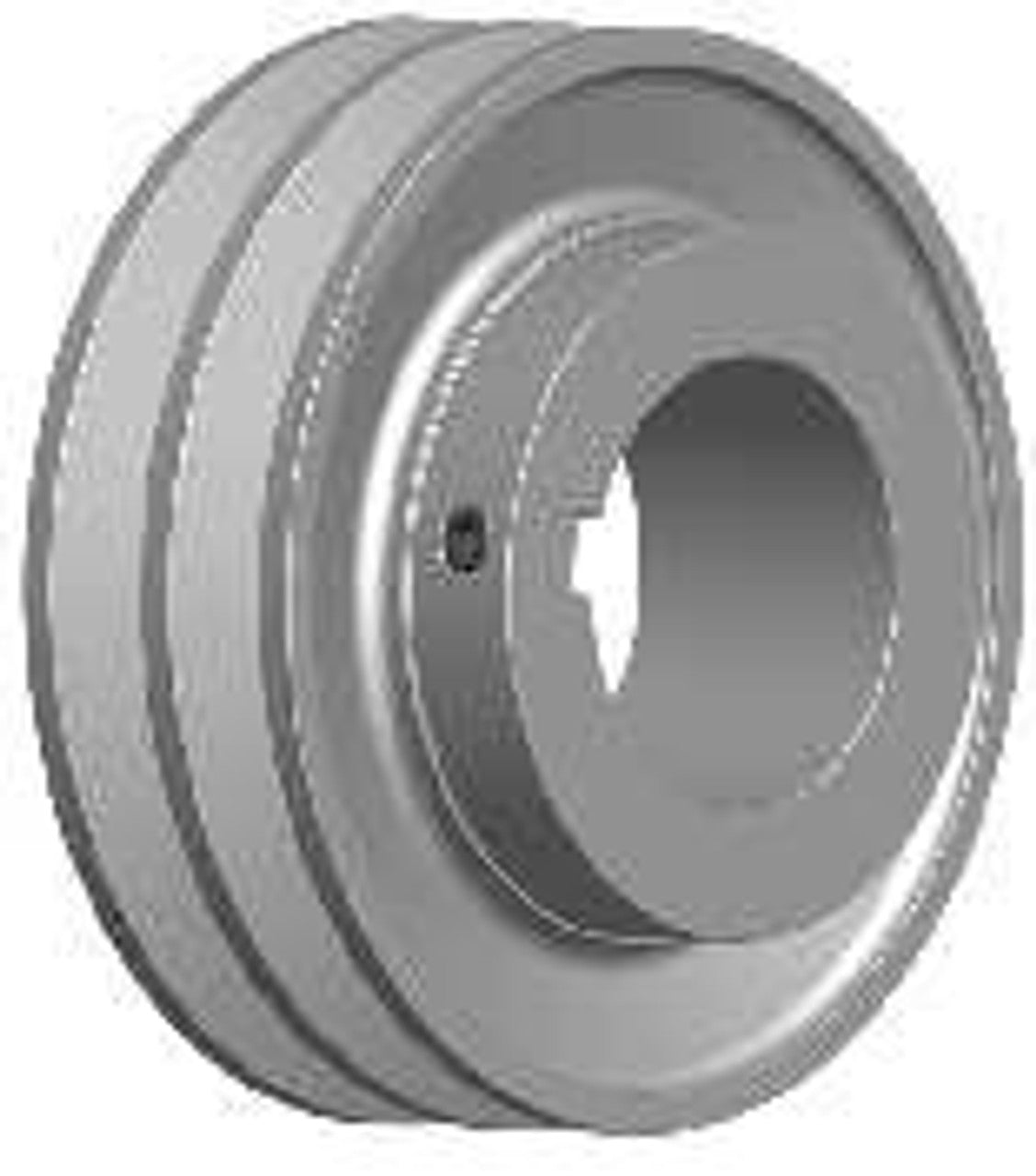

POWER DRIVE 2BK45H V-Belt Pulley

Product Description

The POWER DRIVE 2BK45H V-Belt Pulley is ideal for power transmission in mechanical systems. It is made from durable cast iron and designed with a double groove suitable for A(4L) and B(5L) V-belts. The outer diameter measures four point twenty-five inches, and it accommodates H style QD bushings, which are sold separately.

• V-belt pulley with an outer diameter of four point twenty-five inches.
• Features a double groove for A/B section belts.
• Compatible with H style QD bushings.

Product Highlights

This pulley is essential for efficient power transmission in various motor-driven applications.

Product Information

Standard Information

• Product Type: V-Belt Pulley
• MPN: 2BK45H

Technical Specifications

• Outside Diameter: 4.25 inches
• Groove Type: A/B
• Number of Grooves: 2
• Material: Cast Iron
• Bushing Type: Requires H or L style bushing
• Bushed: Yes
• Belt Compatibility: A(4L) & B(5L)
• Sheave Type: Fixed Pitch
• Accepts H Bushing: True
