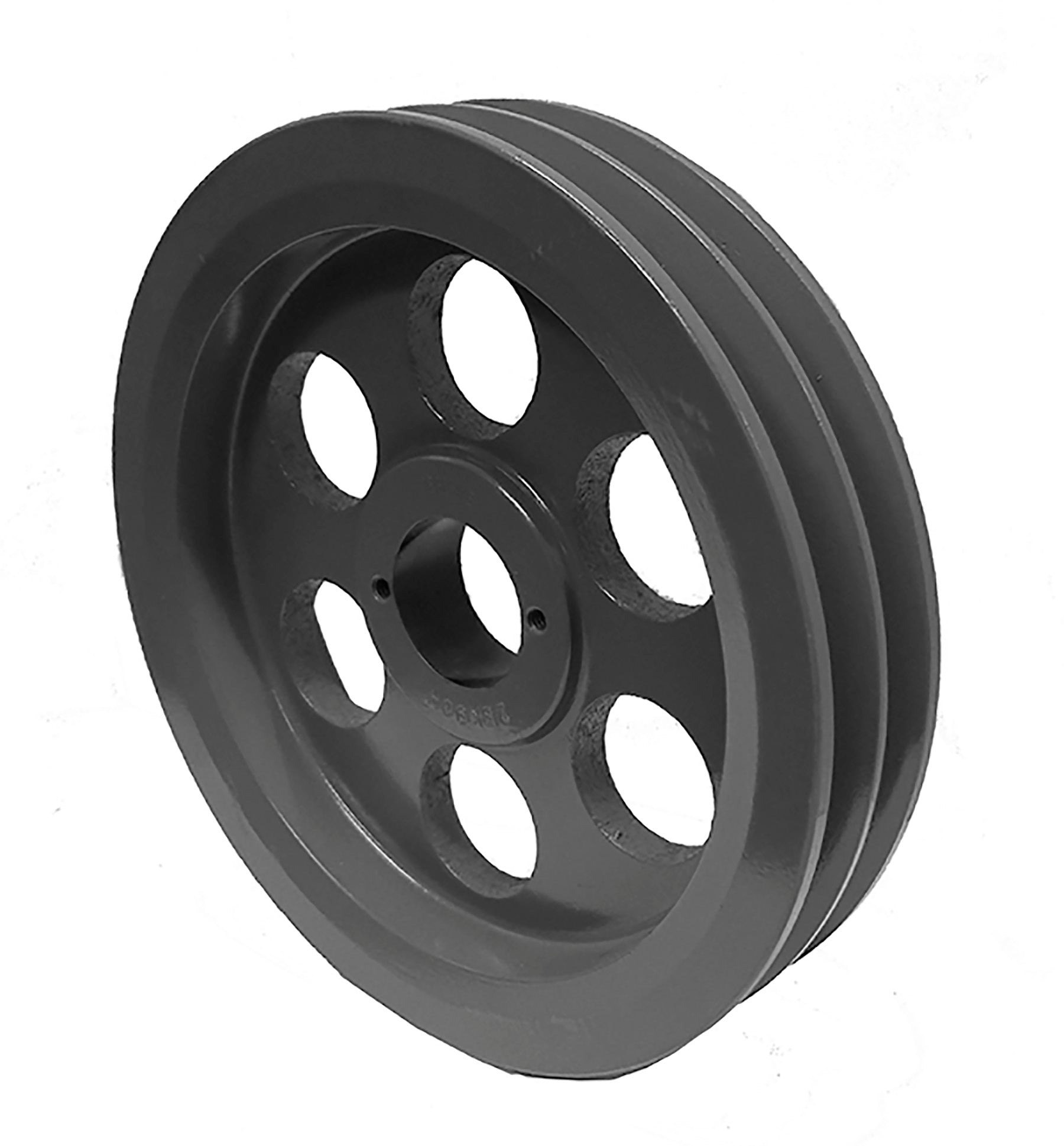

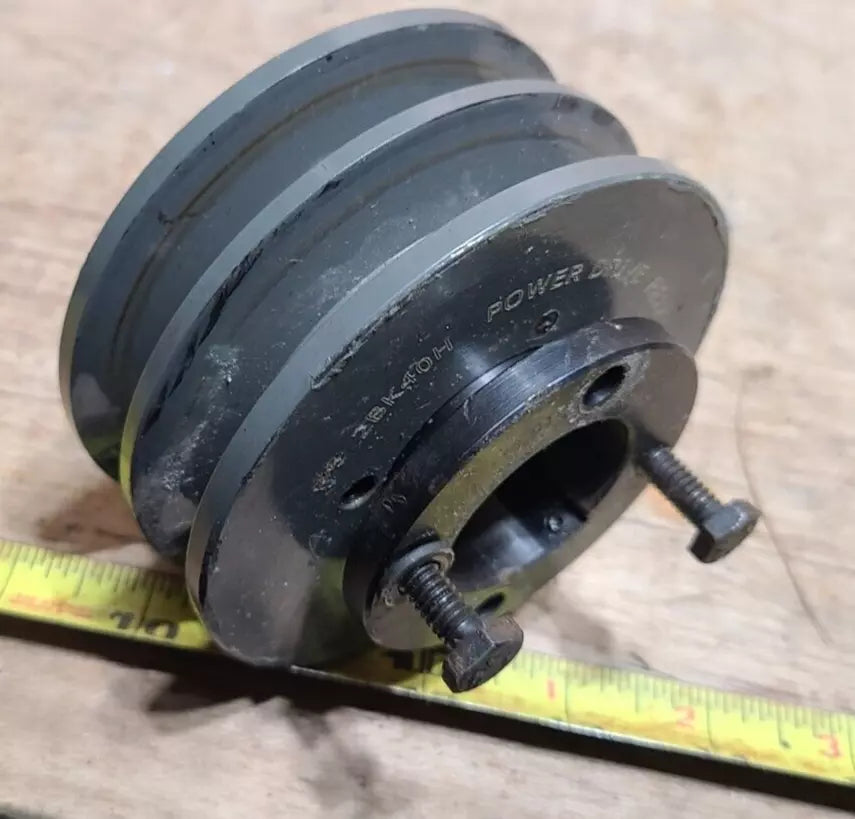

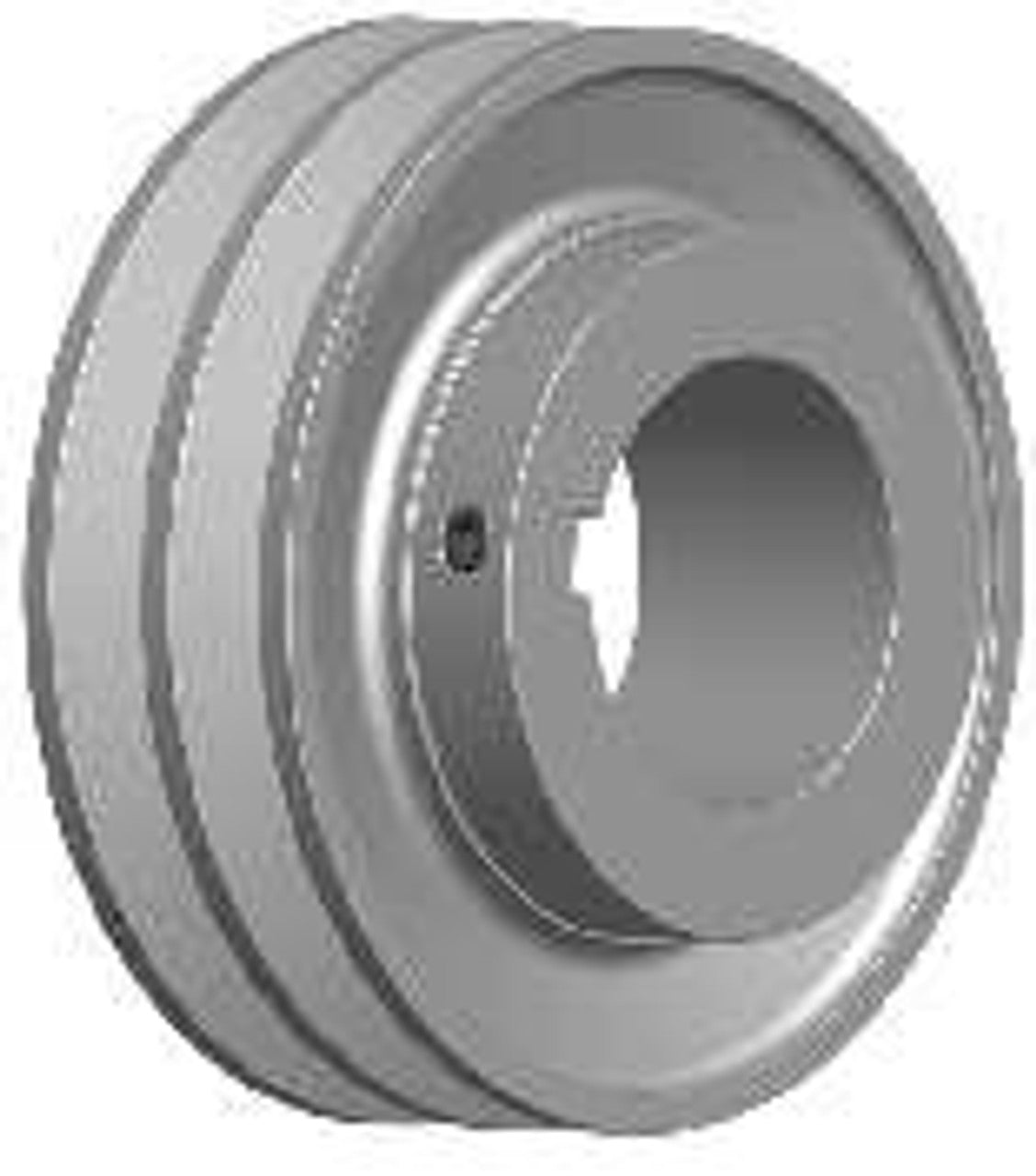

Power Drive 2BK40H Fixed Pitch Sheave

Product Description

The Power Drive 2BK40H is a fixed pitch sheave that is built from sturdy cast iron. This component features a double groove design, which allows for compatibility with A (4L) and B (5L) V-belts. Installation of the sheave requires either an H or L style bushing. With an outside diameter of three point nine five inches, the sheave is an essential part for many mechanical setups.

• Made from durable cast iron material
• Optimized for use with A (4L) and B (5L) V-belts
• Requires H or L style bushing for mounting

Product Highlights

This sheave is key for efficient belt drive systems, ensuring smooth performance and easy installation.

Product Information

Standard Information

• Brand: Power Drive
• MPN: 2BK40H

Technical Specifications

• Type: Fixed Pitch Sheave
• Outside Diameter: 3.95 inches
• Grooves: 2
• Section: A/B
• Bushing Type: Requires H or L style bushing
• Material: Cast Iron
• Design: 2 Piece Design
• Bore Type: QD
• Bore Description: Bored for H Bushing
• Face Width: 1.750 inches
• Overall Length: 2.375 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Bushing: H
• Pitch Dia. A: 3.200 inches
• Pitch Dia. B: 3.600 inches
• Sheave Type: BK
• For Belt Type: 4L, 5L, A, or B
• Weight: 2.40 lbs
• Groove Type: A/B Section
