POWER DRIVE 2BK40-1 Fixed Pitch Sheave

Product Description

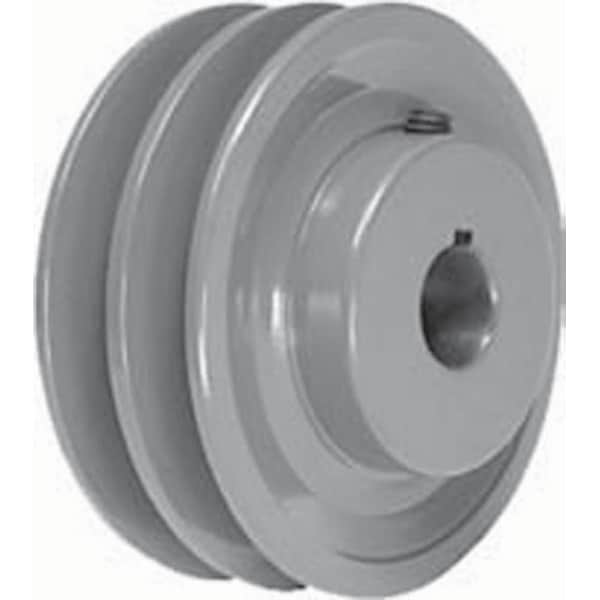

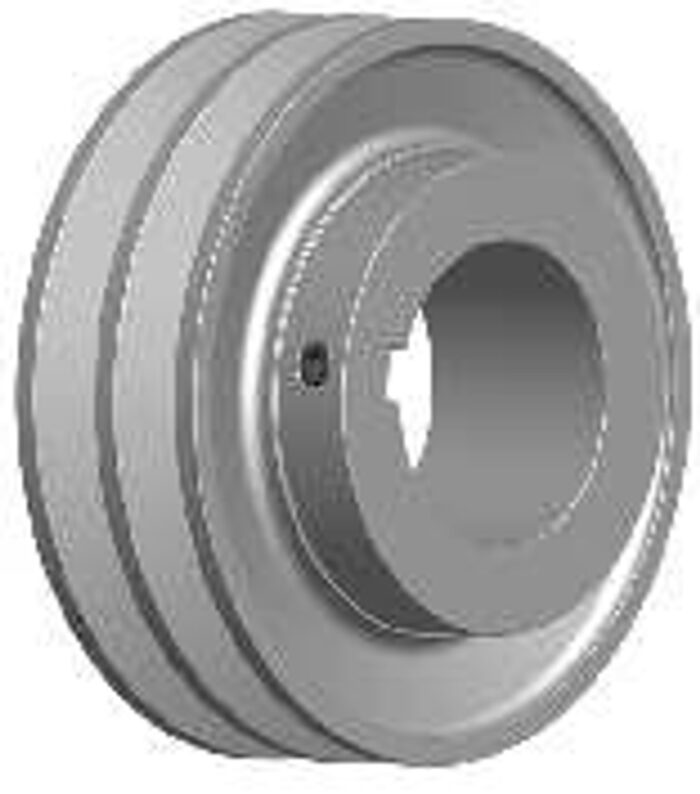

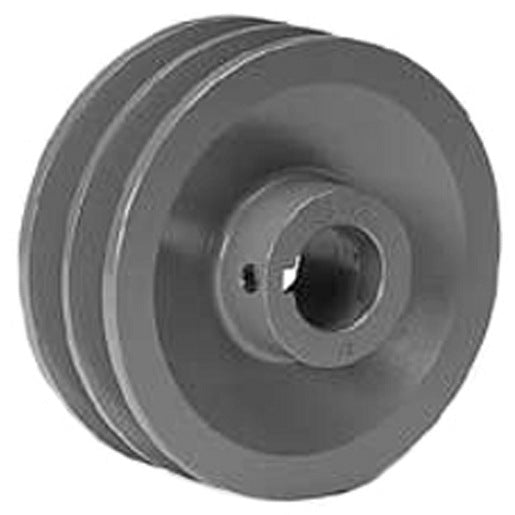

The POWER DRIVE 2BK40-1 fixed pitch sheave is built for reliable power transmission. It is designed for compatibility with A/4L and B/5L section V-belts. This sheave features a fixed bore and is made of robust cast iron. The inclusion of a keyway provides secure belt alignment. The sheave includes two grooves and has a total outside diameter of three point nine five inches.

• Double groove design for A/4L and B/5L V-belts.
• Durable cast iron construction.
• Features a fixed bore of one and one-eighth inches with keyway.

Product Highlights

This sheave is ideal for various power transmission applications, ensuring effective and straightforward integration with compatible belt systems.

Product Information

Standard Information

• Product Type: V-Belt Pulley
• Type: Fixed Pitch Sheave

Technical Specifications

• Model: 2BK40-1
• Grooves: Double Groove
• Number of Grooves: 2
• Belt Series: 4L | A | 5L | B
• Material: Cast Iron
• Outside Diameter: 3.95 inches | 100.33 millimeters
• Bore Size: 1-1/8 inches | 28.575 millimeters
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Keyway: Yes
• Category: Sheave - Fixed Pitch
• Manufacturer Item Number: 2BK40-1-1/8
• Belt Width Maximum: 0.656 inches | 16.662 millimeters
• Belt Width Minimum: 0.5 inches | 12.7 millimeters
