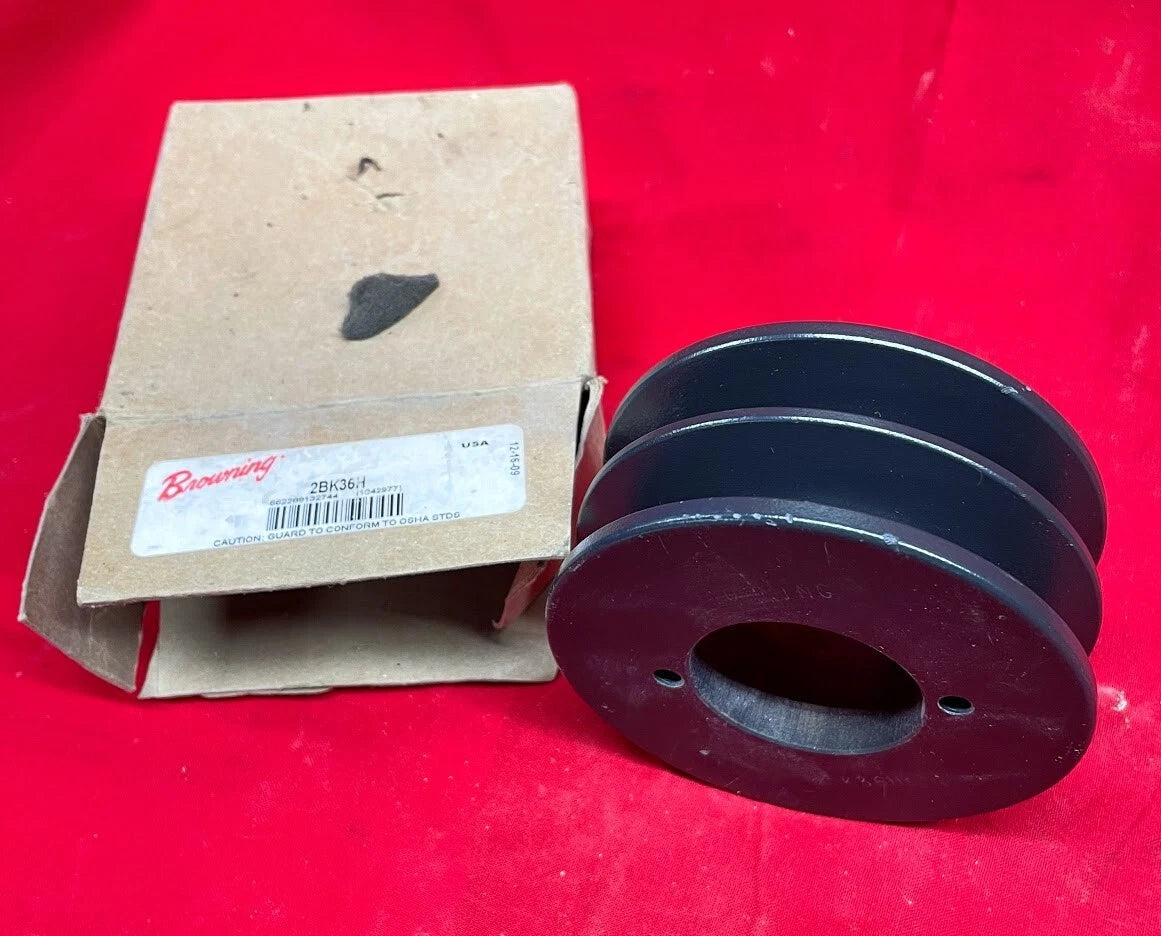

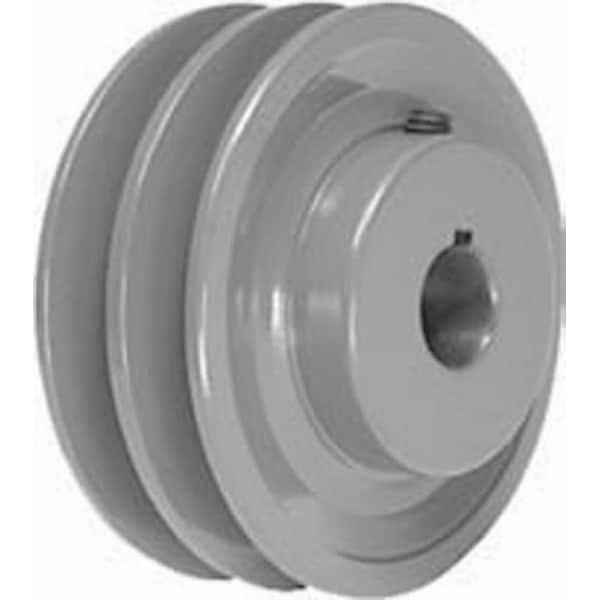

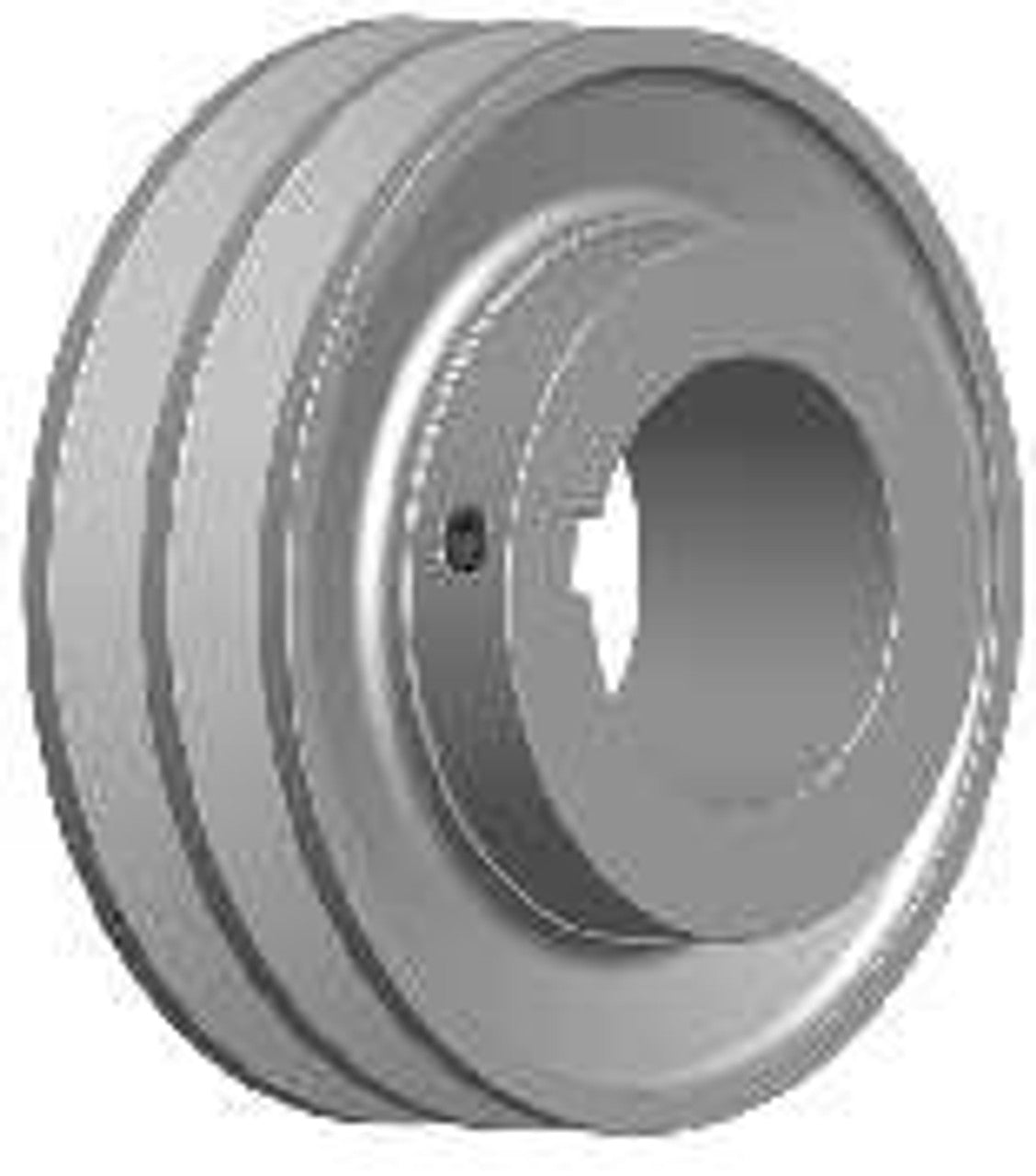

POWER DRIVE 2BK36H Fixed Pitch Sheave

Product Description

The POWER DRIVE 2BK36H fixed pitch sheave is made from cast iron and is designed for power transmission. It features a double groove design that accommodates A (4L) and B (5L) V-belts. This sheave is compatible with H or L style bushings for installation.

• Made from cast iron for durability
• Double groove for A/B section belt compatibility
• Outside diameter of three point seven five inches

Product Highlights

This sheave is ideal for various power transmission applications and ensures optimal performance.

Product Information

Standard Information

• Manufacturer Part Number: 2BK36H
• Type: Fixed Pitch Sheave

Technical Specifications

• Outside Diameter: 3.75 inches
• Material: Cast Iron
• Grooves: Double Groove
• Groove Type: A/B
• Bushing Type: Requires H or L style bushing
• Belt Compatibility: Use with A (4L) & B (5L) V-Belts
• Belt Width Accommodation: 1/2 inch to 1-1/2 inches
