Power Drive 2BK140H Fixed Pitch Sheave

Product Description

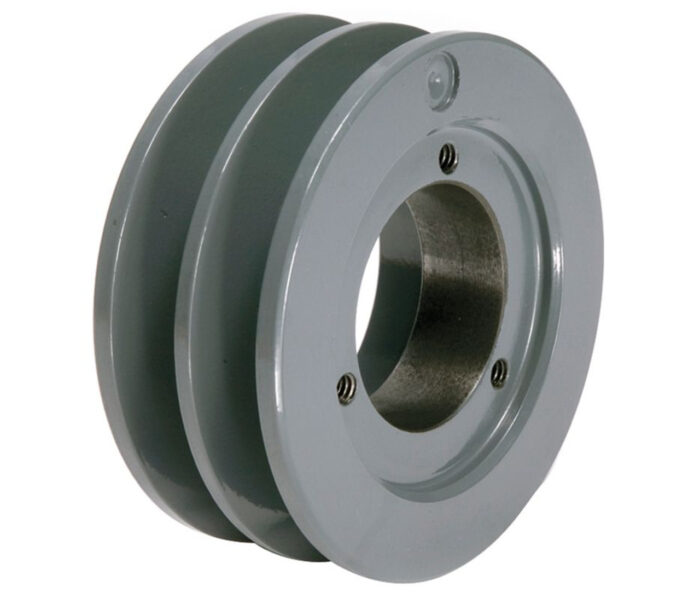

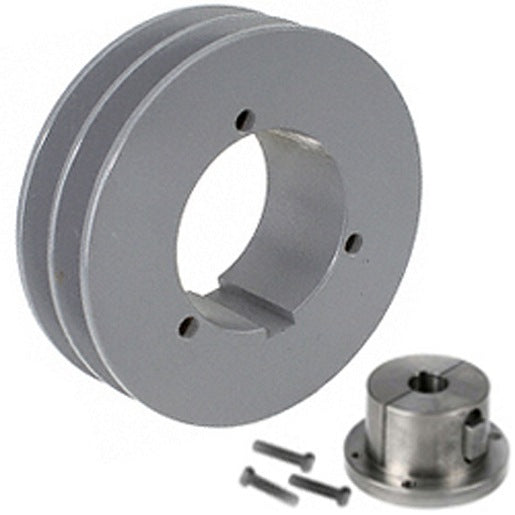

The Power Drive 2BK140H is a fixed pitch sheave designed for various power transmission systems. This durable double groove sheave is made from cast iron and is suitable for A (4L) and B (5L) V-belts. It needs an H style bushing and works seamlessly with QTL quick detachable taper bushings.

• Fixed pitch sheave with dual grooves
• Compatible with A (4L) and B (5L) V-belts
• Includes keyway for secure mounting

Product Highlights

The sheave has an outside diameter of thirteen point seventy-five inches and pitch diameter options from thirteen to thirteen point four inches. It is ideal for various industrial applications.

Product Information

Standard Information

• MPN: 2BK140H
• Brand: Power Drive

Technical Specifications

• Sheave Type: Fixed Pitch
• Number of Grooves: 2
• Belt Size: 4L, A, 5L, B
• Outside Diameter: 13.75 inches
• Pitch Diameter Minimum: 13 inches
• Pitch Diameter Maximum: 13.4 inches
• Bushing Size: H
• Bushing Bore Range: 3/8 to 1-1/2 inches
• Keyway: Yes
• Belt Width Minimum: 0.5 inches
• Belt Width Maximum: 0.656 inches
• Mounting Method: Bushed
