POWER DRIVE 2BK100H Fixed Pitch Sheave

Product Description

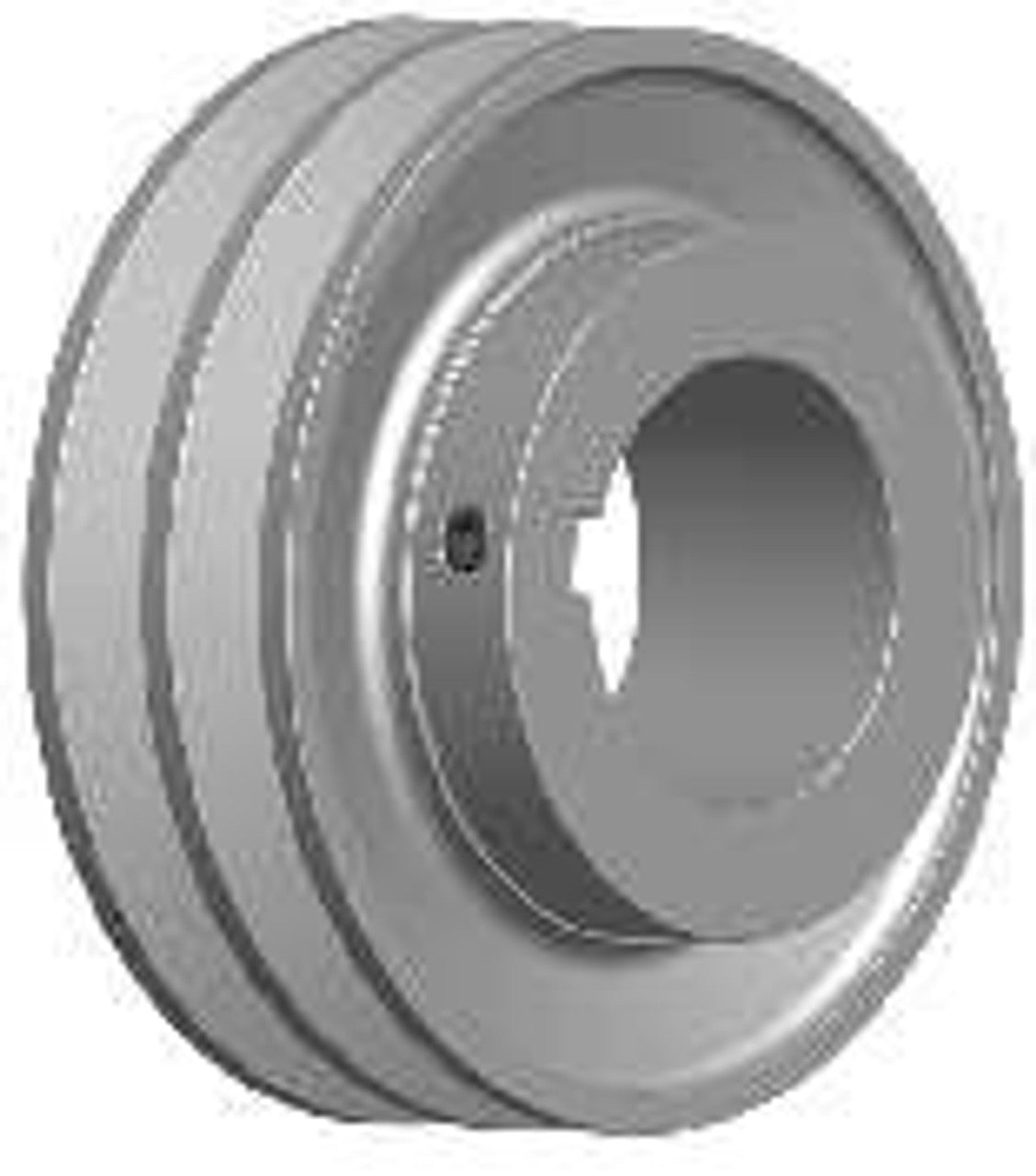

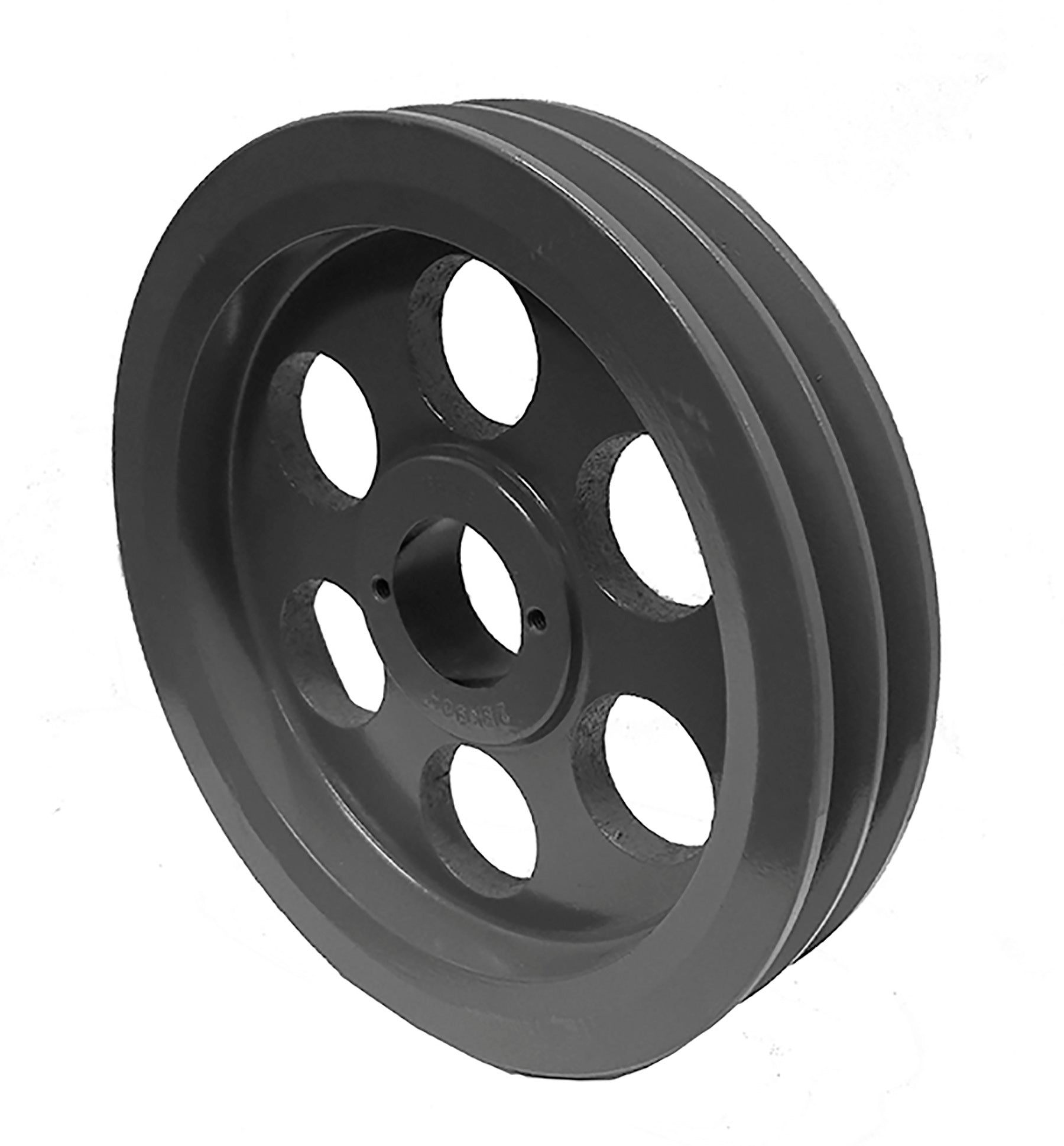

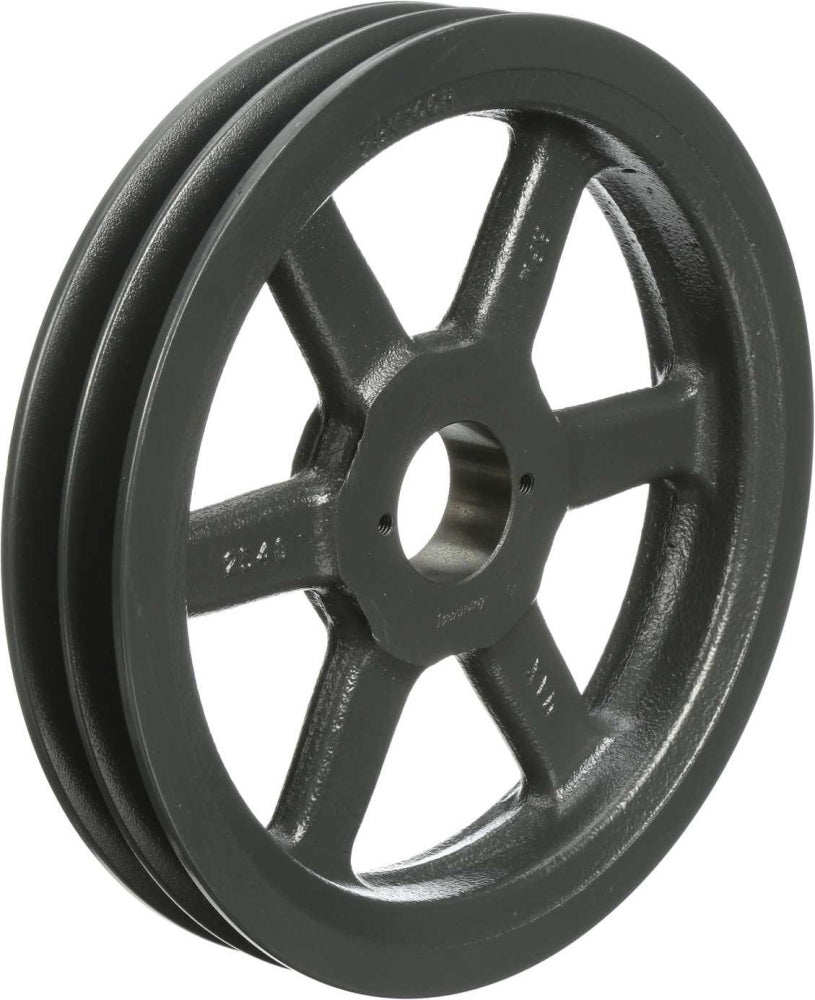

The POWER DRIVE 2BK100H is a fixed pitch sheave designed for use with A (4L) and B (5L) V-belts. This product is made from cast iron and features a double groove design. The outside diameter measures nine point seven five inches, and installation requires a compatible bushing. It is suitable for both H and L style bushings.

• Double groove design for A/B section belts.
• Requires H or L style bushing.
• Constructed from durable cast iron.

Product Highlights

This sheave is ideal for various applications that require reliable belt drive performance.

Product Information

Standard Information

• Manufacturer: POWER DRIVE
• Part Number: 2BK100H

Technical Specifications

• Sheave Type: BK
• Type: Fixed Pitch
• Number of Grooves: 2
• Groove Type: A/B Section
• Material: Cast Iron
• Outside Diameter: 9.75 inches
• Bore Type: Requires Bushing
• Bushing Used: H
• Pitch Diameter A: 9.000 inches
• Pitch Diameter B: 9.400 inches
• Face Width: 1.750 inches
• Overall Length: 1.750 inches
• Min. Bore: 0.375 inches
• Unit System: Inch
• Weight: 6.00 lbs
