POWER DRIVE 2AK34H Fixed Pitch Sheave

Product Description

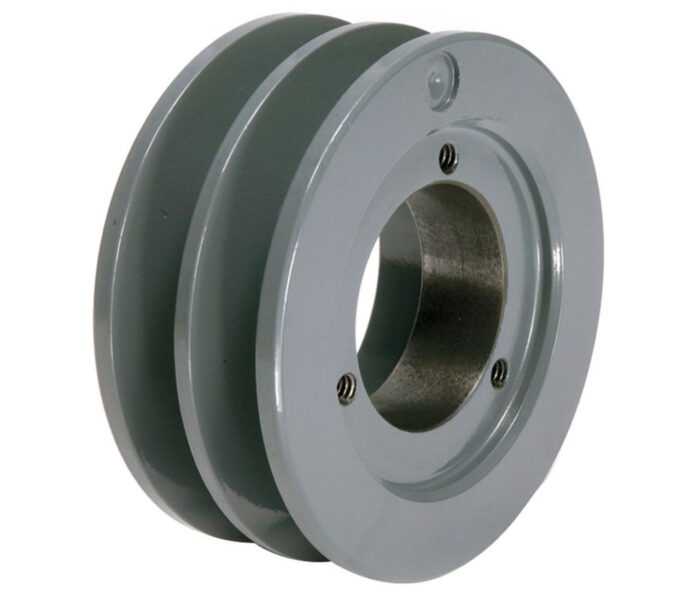

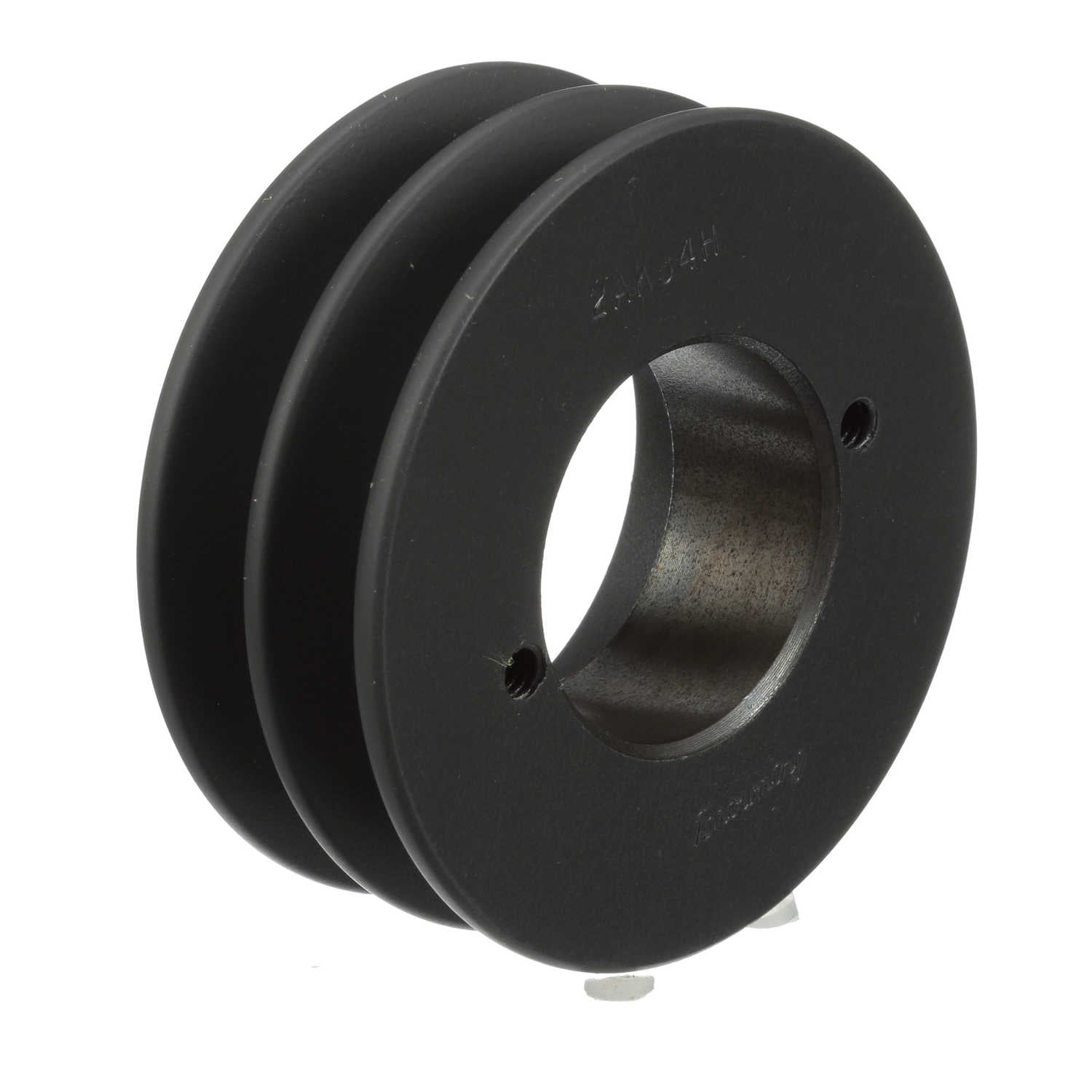

The POWER DRIVE 2AK34H is a fixed pitch sheave for power transmission. Made from cast iron, it offers durability and reliability in demanding applications. This sheave features a double groove design that supports A (4L), B (5L), and 3L V-belts. It utilizes an H style bushing and includes a quick detachable taper bushing (QTL) for easy installation.

• Type: Fixed Pitch Sheave
• Material: Cast Iron
• Compatible with A (4L), B (5L), and 3L V-belts

Product Highlights

This product is suitable for various power transmission setups in industrial and mechanical applications.

Product Information

Standard Information

• Type: Fixed Pitch Sheave
• Material: Cast Iron

Technical Specifications

• Grooves: Double Groove
• Compatible V-Belts: A (4L) & B (5L)
• Bushing Type: H Style
• Bushing Feature: Uses QTL Quick Detachable Taper Bushings
• Number of Grooves: 2
• Mounting Method: Bushed
• Bushing Bore Range: 3/8 to 1-1/2 Inch
• Outside Diameter: 3.45 Inch
• Pitch Diameter Maximum: 3.2 Inch
• Pitch Diameter Minimum: 2.86 Inch
• Keyway: Yes
