POWER DRIVE 1VP60-1-1/8 Variable Pitch Sheave

Product Description

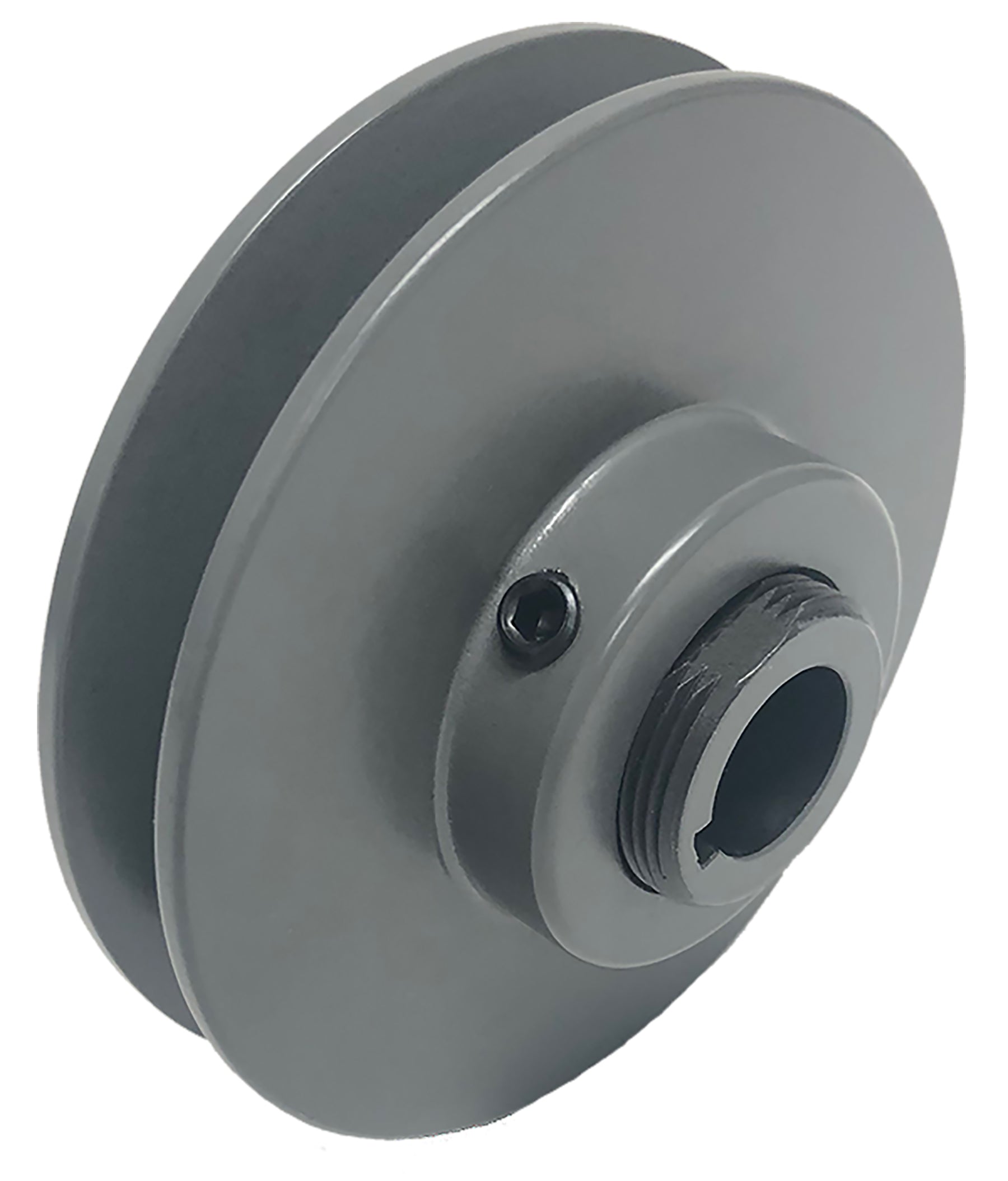

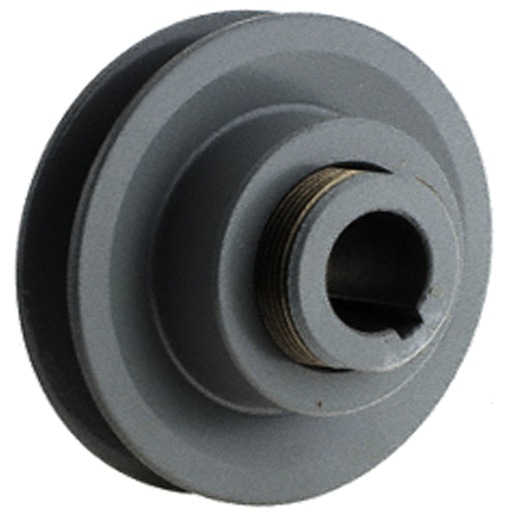

The POWER DRIVE 1VP60-1-1/8 variable pitch sheave is made from cast iron and intended for shaft mounting. It has a finished bore and includes a keyway. This sheave accommodates 4L, A, 5L, and B belt series for versatile applications. The manual turn adjustment allows easy pitch diameter changes, making it suitable for various setups.

• Constructed from cast iron
• Compatible with 4L, A, 5L, and B belt series
• Includes a keyway for secure fitting

Product Highlights

The sheave features a one-groove design suitable for manual adjustments and is part of the Masterdrive family.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: 1VP60-1-1/8

Technical Specifications

• Sheave Type: VP
• Material: Cast Iron
• Mounting Type: Shaft
• Number of Grooves: 1
• Outside Diameter: 6 inches | 152.4 millimeters
• Bore: 1.125 inches | 28.575 millimeters
• Bore Type: Finished Bore
• Bushing Size: No Bushing
• Belt Series: 4L | A | 5L | B
• Adjustment Method: Manual Turn
• Keyway: Yes
• Pitch Diameter Minimum: 4.2 inches | 106.68 millimeters
• Pitch Diameter Maximum: 5.5 inches | 139.7 millimeters
• Face Width Minimum: 0.875 inches | 22.225 millimeters
• Face Width Maximum: 1.25 inches | 31.75 millimeters
• Belt Width Minimum: 0.5 inches | 12.7 millimeters
• Belt Width Maximum: 0.656 inches | 16.662 millimeters
• Weight: 4.6 lbs
