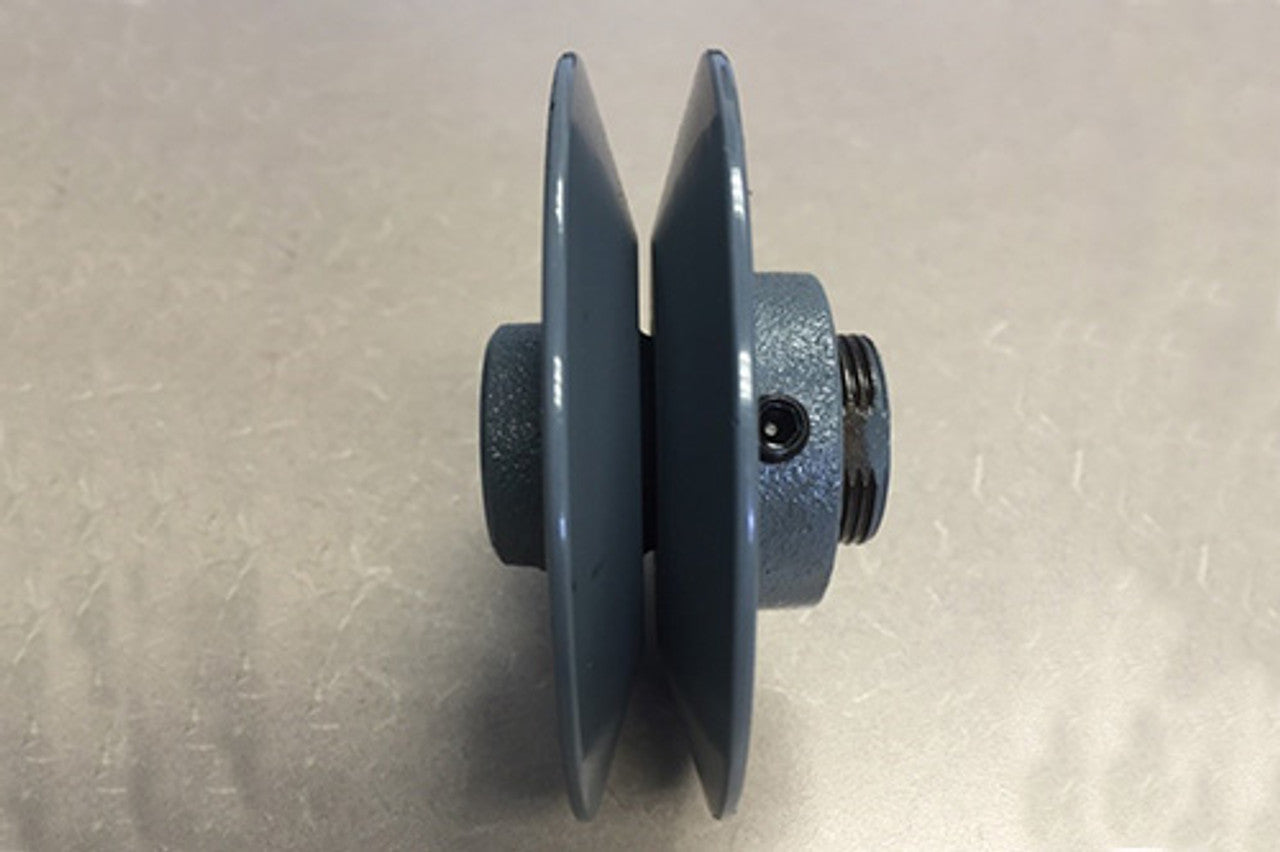

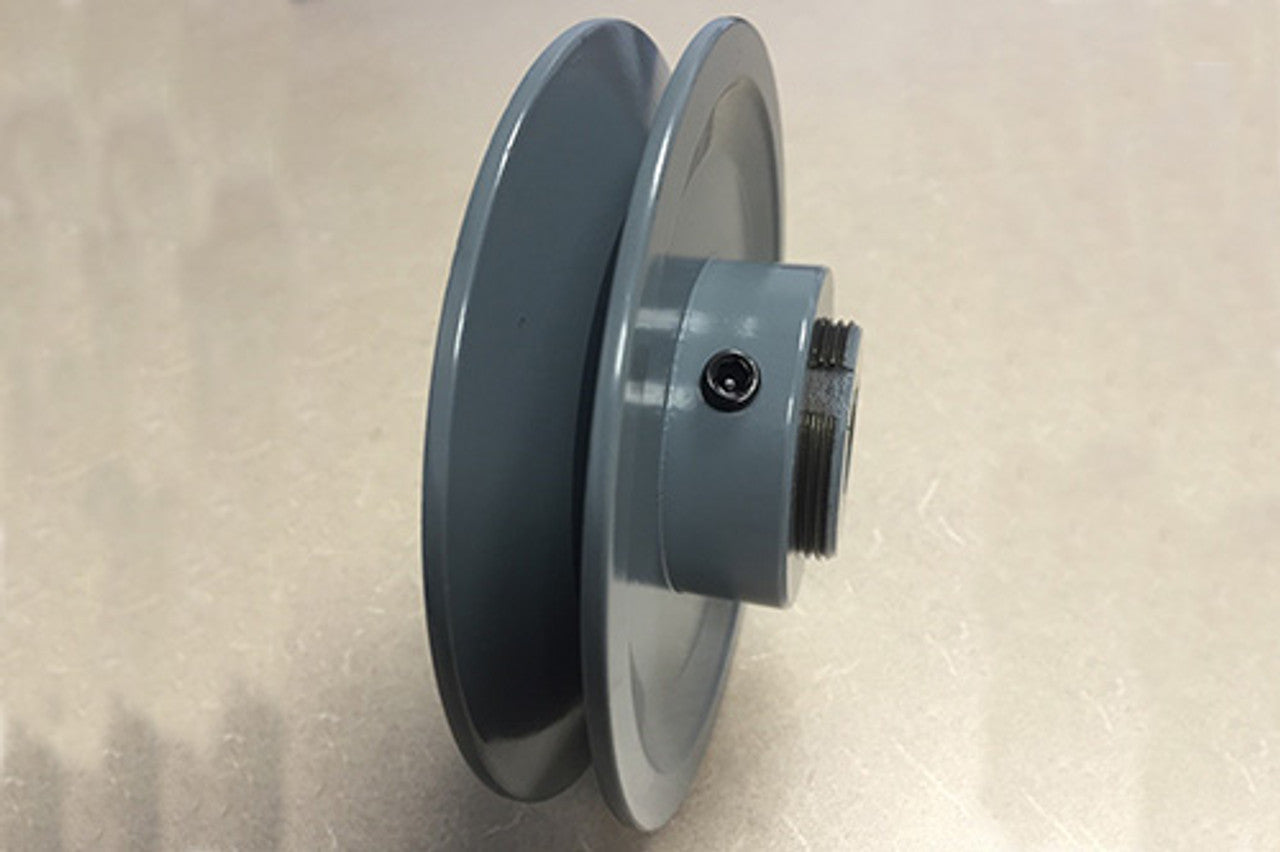

Power Drive 1VP25-1/2 Variable Speed Pulley

Product Description

The Power Drive 1VP25-1/2 is a variable speed pulley suitable for use with a 3L belt series. This pulley has a single groove design and a finished bore that simplifies installation. You can adjust the speed manually with ease. The outside diameter measures two and five-tenths inches, while the pitch diameter ranges from one and six-tenths inches to two and four-tenths inches. The face width varies from nine-sixteenths inches to thirteen-sixteenths inches.

• Variables speed pulley for 3L belt series
• Finished bore for easy mounting
• Adjustable speed with manual turn

Product Highlights

This pulley is ideal for applications requiring variable speed adjustments and versatile belt handling.

Product Information

Standard Information

• Brand: Power Drive
• Material: Cast iron

Technical Specifications

• MPN: 1VP25-1/2
• Belt Series: 3L
• Number of Grooves: 1
• Mounting Method: Finished Bore
• Bushing Size: No Bushing
• Keyway: No
• Adjustment Method: Manual Turn
• Outside Diameter: 2.5 inches
• Pitch Diameter Minimum: 1.6 inches
• Pitch Diameter Maximum: 2.4 inches
• Bore: 0.5 inches
• Face Width Minimum: 0.563 inches
• Face Width Maximum: 0.813 inches
• Belt Width: 0.375 inches
• Product Group: M02350
• Harmonized Tariff Code: 8483.50.90.40
• Noun: Pulley
• Keyword String: Variable Speed
• Compatible Belt Series: 5L, B
• Shaft Size: 1/2 inch
