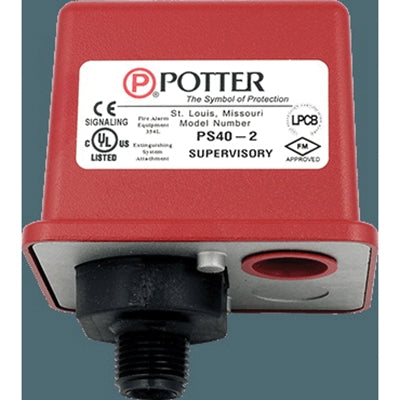

Potter Roemer 1340404 PS40-2 High/Low Pressure Switch 1/2 in MNPT

Product Description

The Potter Roemer 1340404 is a PS40-2 high/low pressure switch indicator that operates between ten and sixty psi. It is ideal for use in fire protection systems, especially in automatic fire sprinkler setups. This switch is designed to detect changes in system pressure, ensuring optimal safety and operation.

• Factory set for forty psi normal system pressure
• Suitable for dry pipe systems and pre-action air/nitrogen supervision
• Built to withstand conditions with a pressure rating of three hundred psi

Product Highlights

This product offers reliability in monitoring pressure levels and can be used in various fire protection applications.

Product Information

Standard Information

• Brand: Potter Roemer
• Manufacturer: Potter Roemer

Technical Specifications

• Connection Type: MNPT
• Contact Configuration: (2) SPDT
• Contact Rating: 10.1 A at 125/250 VAC, 2 A at 30 VDC
• Dimension: 3.78 in W x 3.2 in D x 4.22 in H
• Material: Nylon
• Model: PS40-2
• Pressure Rating: 300 psi
• Temperature Rating: -40 to 140 deg F
