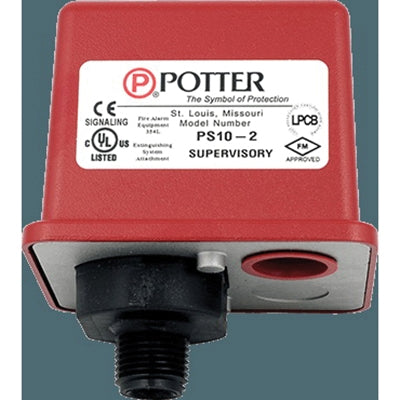

Potter Roemer 1340104 PS10-2 Nylon (2) SPDT Pressure Waterflow Switch, 1/2 in MNPT

Product Description

The Potter Roemer 1340104 is a PS10-2 nylon pressure waterflow switch designed for use in automatic fire sprinkler systems. This switch detects water flow conditions effectively in various systems including wet pipe systems and dry pipe systems.

• Two knockouts provided for half-inch conduit.
• Adjustable pressure settings between four and fifteen psi for supervisory signals.
• UL, cUL listed, and approved by multiple standards.

Product Highlights

This waterflow switch is suitable for different types of fire protection systems, ensuring reliable operation under various conditions.

Product Information

Standard Information

• Brand: Potter Roemer
• Part Number: P1340104

Technical Specifications

• Connection Type: MNPT
• Contact Configuration: (2) SPDT
• Contact Rating: 10.1 A at 125/250 VAC, 2 A at 30 VDC
• Dimensions: 3.78 in W x 3.20 in D x 4.22 in H
• Item Name: Pressure Waterflow Switch
• Material: Nylon
• Model: PS10-2
• Pressure Rating: 300 psi
• Size: 1/2 in
• Temperature Rating: -40 to 140 deg F
• Standards/Certifications: UL, cUL listed, CE marked, CSFM listed, NYMEA, FM, LPC approved
