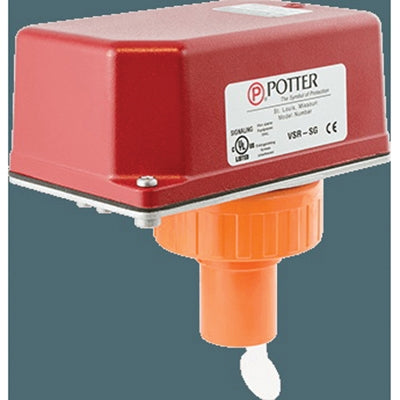

Potter Roemer 1144460 VSR-SG (2) SPDT Vane Type Waterflow Alarm Switch with Retard and Glue-In Union

Product Description

The Potter Roemer 1144460 is a VSR-SG vane type waterflow switch designed for wet sprinkler systems. This switch operates effectively with CPVC plastic fittings from major manufacturers and is suitable for various pipe sizes. The device features a union, making it easy to install in tight spaces.

• Equipped with two single pole, double throw snap action switches.
• Operates when water flow reaches ten gallons per minute.
• Complies with industry standards including CSFM approval and UL certification.

Product Highlights

This waterflow alarm switch is built to activate upon sufficient flow in the system, ensuring prompt notification of water presence.

Product Information

Standard Information

• Brand: Potter Roemer
• Manufacturer: Potter Roemer

Technical Specifications

• Contact Configuration: (2) SPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Dimension: 5.56 in L x 3-1/2 in W
• Flow Rate: 4 - 10 gpm
• Item Name: Waterflow Alarm Switch with Retard and Glue-In Union
• Model: VSR-SG
• Mounting: Horizontal/Vertical
• Pressure Rating: Up to 175 psi Service
• Temperature Rating: 40 - 120 deg F
• Type: Vane-Type
