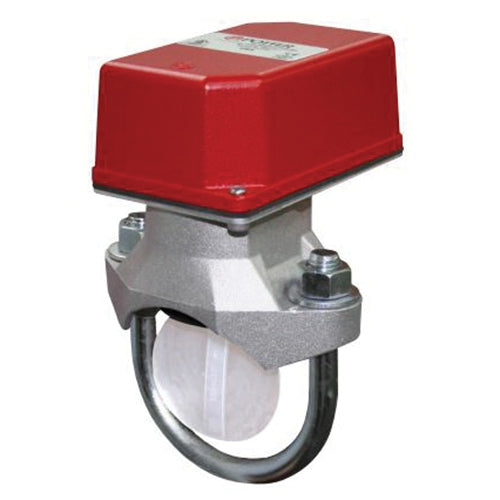

Potter Roemer 1144425 Water Flow Switch Indicator VSR-2.5

Product Description

The Potter Roemer 1144425 is a water flow switch designed for use in wet sprinkler systems. This model, known as VSR-2.5, operates effectively to indicate water flow within the system. It contains two snap action switches that activate with a flow of ten gallons per minute or more. The switch is UL listed and FM approved for compatibility with various pipe sizes and materials.

• Vane-type water flow switch
• Activates with a flow rate of 10 gpm or more
• Compatible with steel pipe sizes from two to eight inches

Product Highlights

The VSR-2.5 is engineered to offer reliable operation in fire protection systems, making it essential for safety compliance.

Product Information

Standard Information

• Manufacturer: Potter Roemer
• Part Number: 950046

Technical Specifications

• Contact Configuration: (2) SPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Diameter: 2-7/8 inches
• Flow Rate: 4 - 10 gpm
• Model: VSR-2 1/2
• Mounting: Horizontal/Vertical
• Pressure Rating: 450 psi Service
• Series: VSR
• Size: 2-1/2 inches
• Temperature Rating: 40 - 120 degrees F
• Type: Vane-Type
