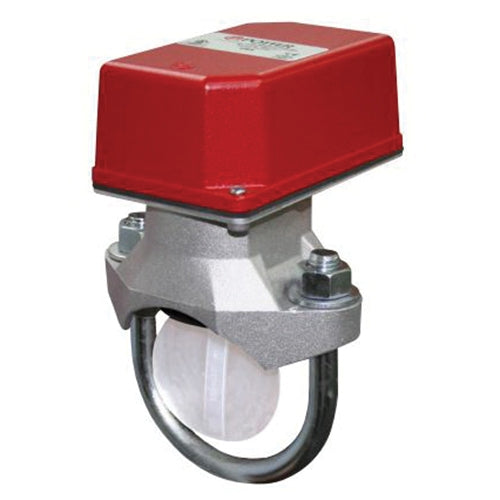

Potter Roemer 1144402 Waterflow Alarm Switch with Retard 2 in

Product Description

The Potter Roemer 1144402 is a vane-type water flow switch designed for use in wet sprinkler systems. This device is UL listed and FM approved for a range of pipe sizes, making it suitable for multiple applications. The VSR-2 model features a water flow alarm switch with retard that gets activated with a flow of ten gallons per minute or more.

• Two 1-pole, double throw snap action switches
• Applications include wet sprinkler systems
• Adjustable pneumatic retard for customizable operation

Product Highlights

This switch is ideal for monitoring water flow in fire protection systems.

Product Information

Standard Information

• Manufacturer: Potter Roemer
• Part Number: 950045

Technical Specifications

• Contact Configuration: (2) SPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Diameter: 2-3/8 inches
• Flow Rate: 4 - 10 gpm
• Item Name: Waterflow Alarm Switch with Retard
• Model: VSR-2
• Mounting: Horizontal/Vertical
• Pressure Rating: 450 psi Service
• Series: VSR
• Size: 2 inches
• Temperature Rating: 40 - 120 deg F
• Type: Vane-Type
