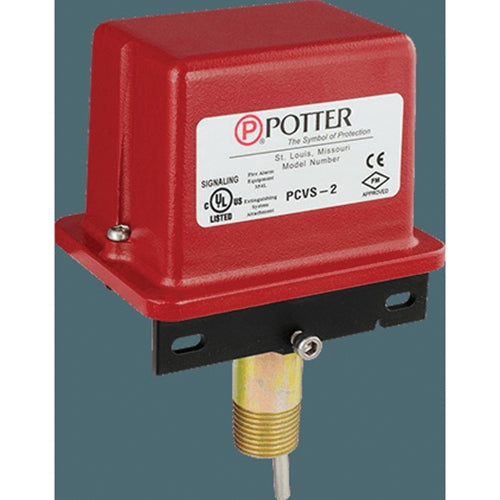

Potter Roemer 1010203 PCVS-2 Control Valve Supervisory Switch 1/2 in

Product Description

The Potter Roemer 1010203 is a control valve supervisory switch designed to monitor the open position of fire sprinkler control valves. This model, PCVS-2, features dual SPDT contacts that activate when the valve state changes. It is equipped for installation in a half-inch MNPT tapped hole in various valve housings.

• Weatherproof and tamper-resistant design
• Visual indicators for switch status
• Supports up to twelve AWG wire

Product Highlights

Ideal for fire protection systems, this switch combines safety and reliability in a compact unit.

Product Information

Standard Information

• Brand: Potter Roemer
• Model: PCVS-2
• Part Number: P1010203

Technical Specifications

• Size: 1/2 in
• Connection Type: MNPT
• Contact Configuration: (2) SPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Temperature Rating: -40 to 140 deg F
• Standards: UL, CUL listed, CE marked and complies with NFPA standards
• Enclosure: Die cast with red powder coat finish
