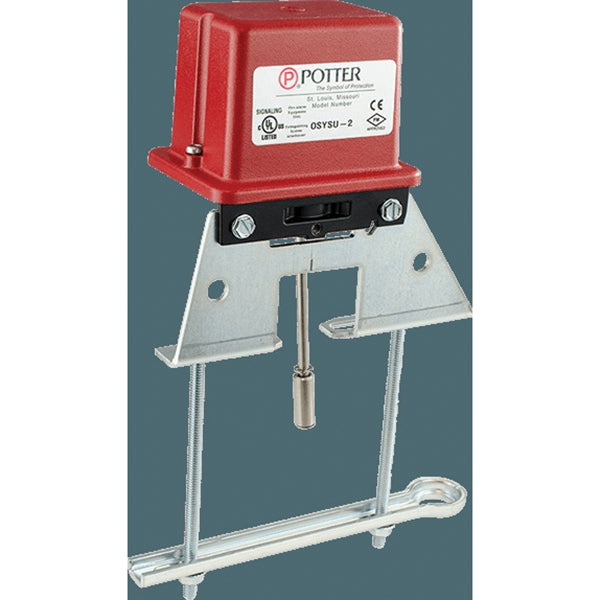

Potter Roemer 1010202 Outside Screw and Yoke Valve Supervisory Switch

Product Description

The Potter Roemer 1010202 is an outside screw and yoke valve supervisory switch designed to monitor the open position of OS&Y type gate valves. It features a red cover with a black base, constructed from die-cast material, and is suitable for a range of applications in fire protection systems.

• DPDT contact configuration
• Compatible with most OS&Y valves from two inches to twelve inches
• UL, CUL listed, CE marked, and RoHS compliant

Product Highlights

This switch is critical for ensuring valve positioning, offering features like tamper-resistant screws and visual indicators for easy monitoring.

Product Information

Standard Information

• Brand: Potter Roemer
• Manufacturer: Potter Roemer

Technical Specifications

• Model: OSYSU-2
• Contact Configuration: DPDT
• Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
• Dimension: 6.19 in L x 3.05 in W x 9.36 in H
• Finish: Powder Coated
• Material: Die Cast
• Temperature Rating: -40 to 140 degrees F
• Standards/Certifications: UL, CUL listed, CE marked, FM, MEA, EAC approved, RoHS compliant
