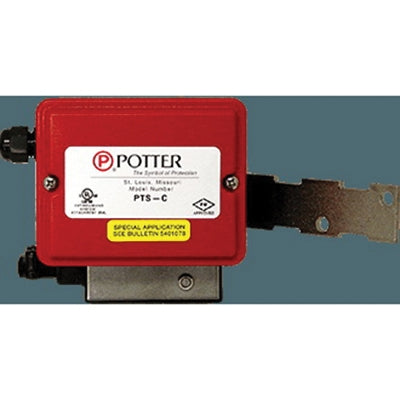

Potter Roemer 1010201 PTS-C SPDT Plug Type Supervisory Switch

SKU: 1010201
Availability: Out Of Stock
Call for Pricing
$999,999.00
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Potter Roemer 1010201 is a PTS-C Plug Type Supervisory Switch designed for monitoring sprinkler system control valves. This model can also be used to secure gates and various applications where supervision is needed. Built with a Nema 6P enclosure, it is suitable for outdoor use, including areas prone to flooding such as pits and wells.

  • Switch operates on a sealed reed mechanism to reduce contact corrosion
  • Features a 18-gauge waterproof cable approximately eight feet long
  • Non-corrosive composite material housing

Product Highlights

This supervisory switch is essential for controlling the operational status of fire protection systems safely.

Product Information

Standard Information

  • Brand: Potter Roemer
  • Model: PTS-C

Technical Specifications

  • Contact Configuration: SPDT
  • Contact Rating: 100 mA at 28 VDC/AC, 250 mA at 12 VDC/AC
  • Dimension: 7 inches L x 3.75 inches W x 3 inches D
  • Temperature Rating: -40 to 140 degrees F
  • Type: Plug-Type
  • Standards/Certifications: UL, CUL listed, CSFM, NYMEA, FM approved
  • Item Name: Supervisory Switch
