Product Description

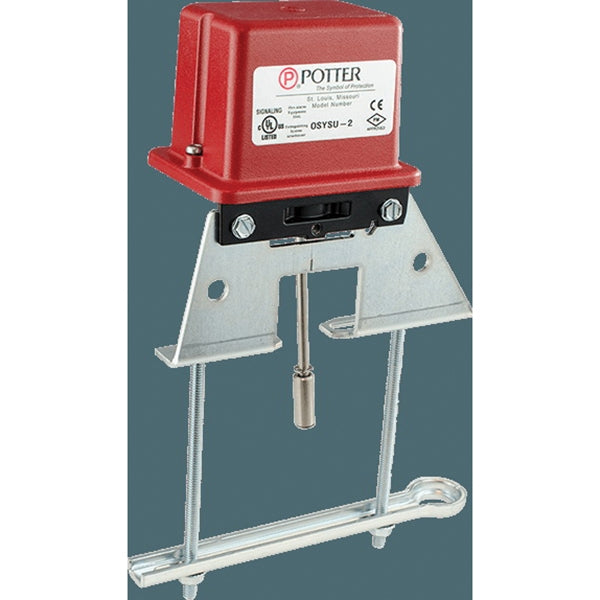

The Potter Roemer 1010102 is an Outside Screw and Yoke Valve Supervisory Switch designed for monitoring. It operates at a contact rating of 10 A at 125/250 VAC. This switch is essential for ensuring the open position of an OS&Y type valve.
- Designed for OS&Y (Outside Screw and Yoke) type gate valves.
- Available model features SPDT contact configuration.
- Constructed with a durable die-cast material.
Product Highlights
This switch includes features that enhance its use in fire protection systems. It is UL, CUL listed, CE marked, and RoHS compliant.
Product Information
Standard Information
-
Brand: Potter Roemer
-
Part Number: P1010102
Technical Specifications
-
Item Name: Outside Screw and Yoke Valve Supervisory Switch
-
Model: OSYSU-1
-
Contact Configuration: SPDT
-
Contact Rating: 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC
-
Dimension: 6.19 inches L x 3.05 inches W x 9.36 inches H
-
Material: Die Cast
-
Temperature Rating: -40 to 140 degrees F
-
Standards/Certifications: UL, CUL listed, CE marked, FM, MEA, EAC approved, RoHS compliant
